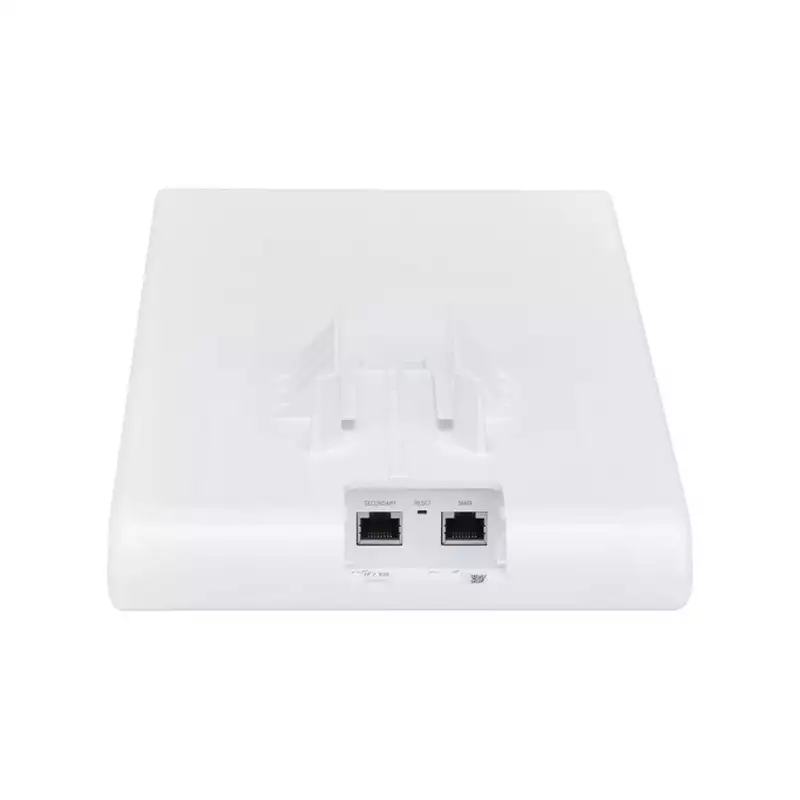

The Ubiquiti UAP-AC-M-PRO Dual-Band Access Point is a high-performance wireless access point designed for both indoor and outdoor use. It supports Wi-Fi 5 (802.11ac) technology with dual-band (2.4 & 5 GHz) connectivity, offering a total throughput of 1750 Mb/s. This device features three internal antennas with an antenna gain of 8 dBi and MU-MIMO support for 3x3 connections. The UAP-AC-M-PRO access point has two 10/100/1000 Mb/s Gigabit Ethernet ports for wired connectivity and supports up to 100 clients with a maximum of four SSIDs. The device comes with WMM protocol support and various wireless security features including AES, TKIP, WEP, WPA, WPA-PSK, and WPA2. This access point supports IEEE standards such as 802.11i and 802.3af and has a power consumption of 9W. It operates in temperatures ranging from -40 to 158°F/-40 to 70°C and has a humidity range of 5 to 95%. Additionally, the device is CE, FCC, and IC certified, ensuring compliance with regulatory standards. The UAP-AC-M-PRO access point can be mounted on poles or walls, making it suitable for a wide range of applications. Its dimensions are 13.5 x 7.1 x 2.4" / 34.3 x 18.1 x 6 cm, and it weighs 1.4 lb / 0.6 kg. The package weight is 4.525 lb, and the box dimensions are 15.8 x 8.8 x 3.6". Overall, this product is an excellent choice. You can order this product from Techland BD
Networking & Connectivity | |
Transmit Power |
22 dBm
|
Max SSIDs Supported |
4
|
Number of Antennas |
3
|
Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
|
MU-MIMO Support |
3 x 3
|
Antenna Gain |
8 dBi
|
Wireless Security |
AES, TKIP, WEP, WPA, WPA-PSK, WPA2
|
Antenna Placement |
Internal
|
Throughput |
1750 Mb/s Total
2.4 GHz: 450 Mb/s 5 GHz: 1300 Mb/s |
Supported IEEE Standards |
802.11i, 802.3af
|
Battery And Power | |
Power Consumption |
9 W
|
Ports | |
Inputs/Outputs |
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
|
Others | |
Operating Temperature |
-40 to 158°F / -40 to 70°C
|
Physical Specification | |
Operating Humidity |
5 to 95%
|
Dimension |
13.5 x 7.1 x 2.4" / 34.3 x 18.1 x 6 cm
|
Weight |
1.4 lb / 0.6 kg
|
Technical Info | |
Mount |
Pole, Wall
|
Supported Clients |
100
|
