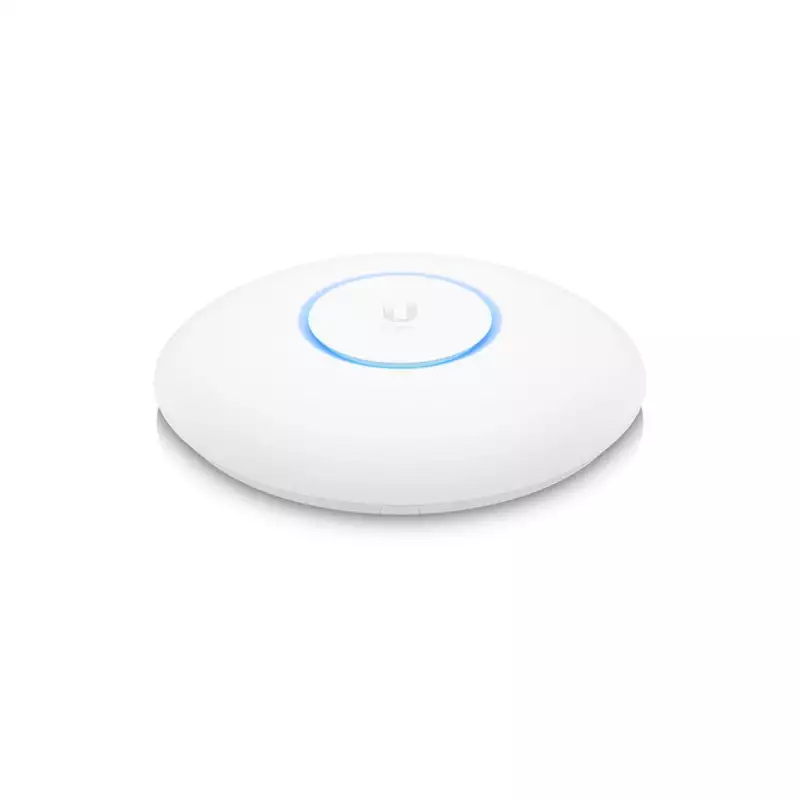

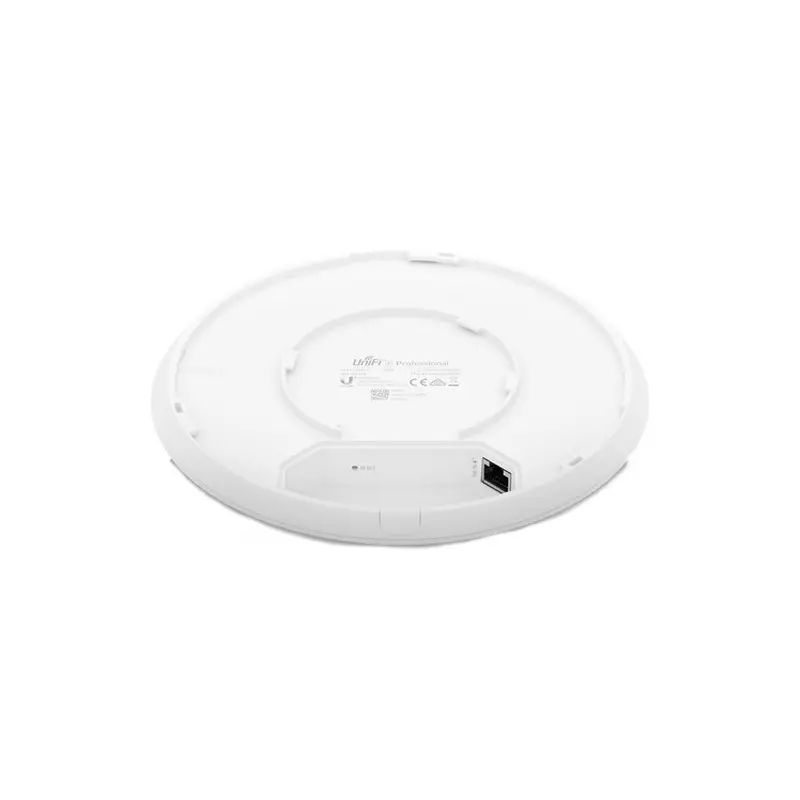

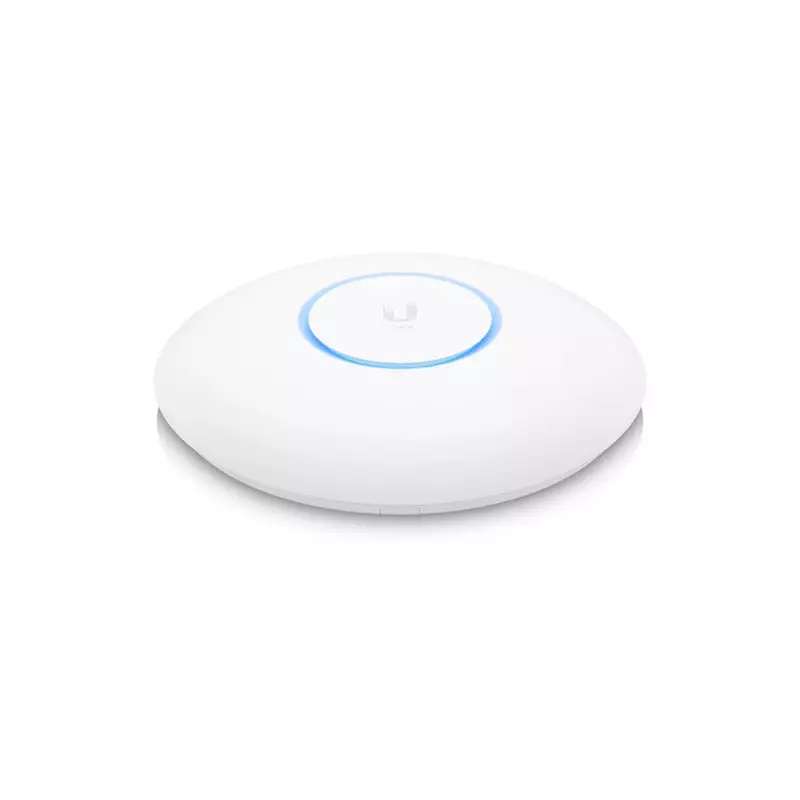

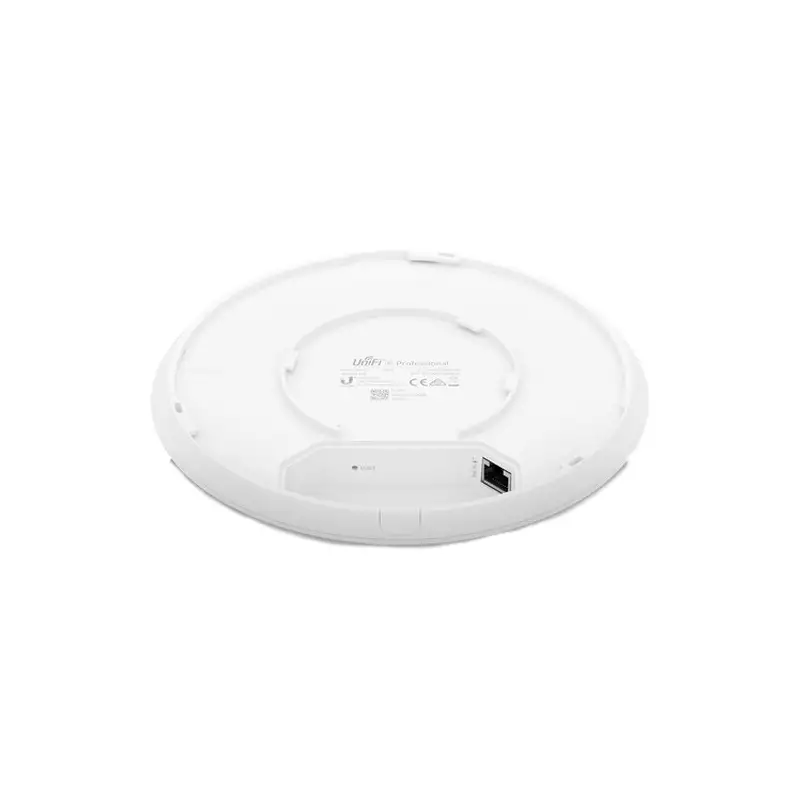

The Ubiquiti U6-Pro Dual-Band Access Point is a high-performance wireless network device designed to provide fast and reliable connectivity in various environments. Boasting Wi-Fi 6 (802.11ax) technology, this AP offers improved data rates, reduced latency, and increased capacity compared to previous Wi-Fi standards. The access point supports both 2.4 GHz and 5 GHz dual-band frequencies, with MU-MIMO support for up to 4 x 4 streams. The internal antennas have a gain of 4 to 6 dBi, while the transmit power ranges from 22 to 26 dBm, enabling it to serve large areas with strong coverage. With a total throughput of 5373 Mb/s, the U6-Pro delivers exceptional speed and performance. On the 5GHz band, it can reach up to 4800 Mb/s, while on the 2.4GHz band, it can achieve up to 573 Mb/s. The device comes with a single Gigabit Ethernet port (RJ45) supporting PoE+, allowing for easy installation and powering. It also has guest network support and offers various wireless security options such as WPA, WPA2, WPA3, among others. The U6-Pro is designed to handle up to 300 clients at once and operates in Access Point mode. It has an IP54 rating, which means it's resistant to dust and water splashes, making it suitable for harsh environments. The device can be mounted on walls or ceilings and measures 7.8 x 7.8 x 1.4 inches (197 x 197 x 35 mm) and weighs 1 lb (460 g). The access point does not support Bluetooth, USB sharing, or any mobile app compatibility at the moment. However, users should check with the manufacturer for the most up-to-date compatibility information. The U6-Pro requires a DC input power of 44-57 VDC and consumes 13 W of power. The operating temperature ranges from -30 to 60°C, with an operating humidity range of 5% to 95%. You can Order at Techland BD
Networking & Connectivity | |
Transmit Power |
22 to 26 dBm
|
Wi-Fi |
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
|
MU-MIMO Support |
4 x 4
|
Antenna Gain |
4 to 6 dBi
|
Bluetooth |
None
|
Wireless Security |
WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-
Enterprise, WPA2-PSK, WPA3, WPA3-Enterprise, WPA3-PSK |
Antenna Placement |
Internal
|
Throughput |
5373 Mb/s Total
5 GHz: 4800 Mb/s 2.4 GHz: 573 Mb/s |
Guest Network Support |
Yes
|
Supported IEEE Standards |
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.1q, 802.3af
|
Battery And Power | |
Power Consumption |
13 W
|
Ports | |
Inputs/Outputs |
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
|
Others | |
Operation Modes |
Access Point
|
Operating Temperature |
2 to 92°F / -30 to 60°C
|
Physical Specification | |
Operating Humidity |
5 to 95%
|
Dimension |
7.8 x 7.8 x 1.4" / 197 x 197 x 35 mm
|
Weight |
1 lb / 460 g
|
Technical Info | |
Mount |
Wall, Ceiling
|
Warranty Information | |
Warranty |
1 Year (Without Adapter)
|
