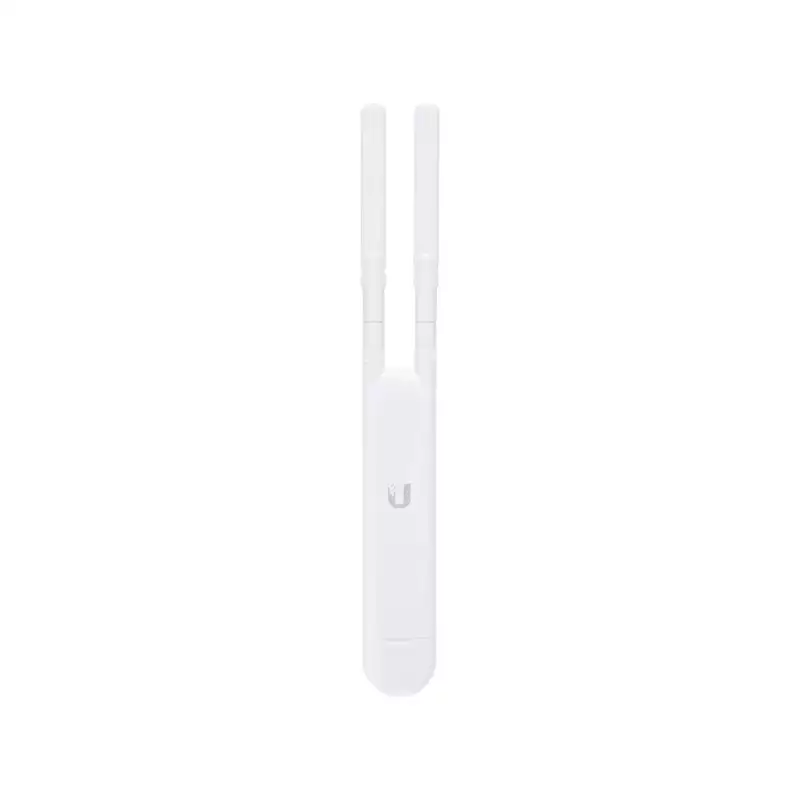

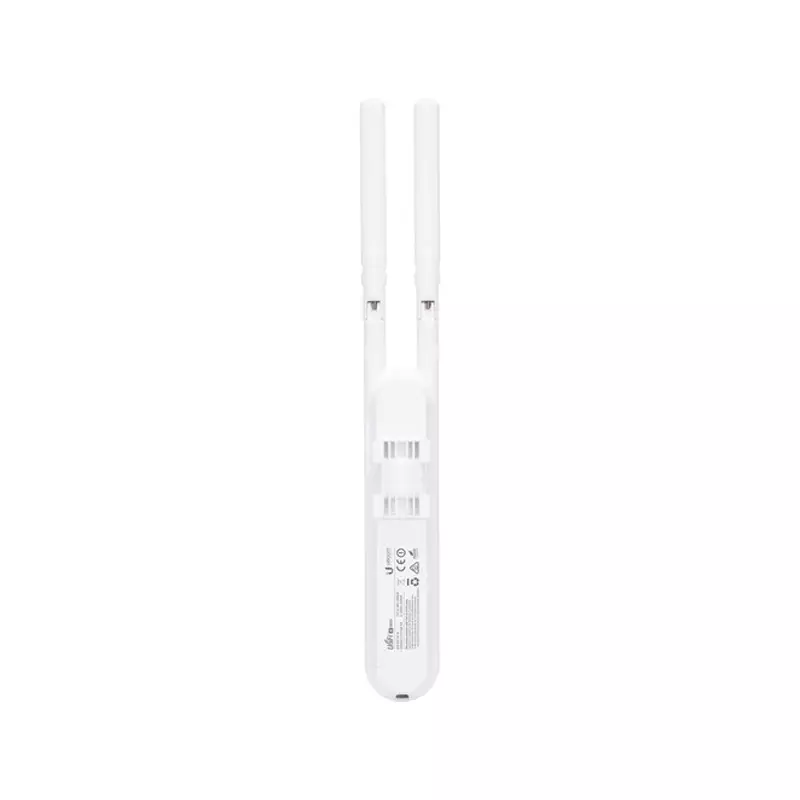

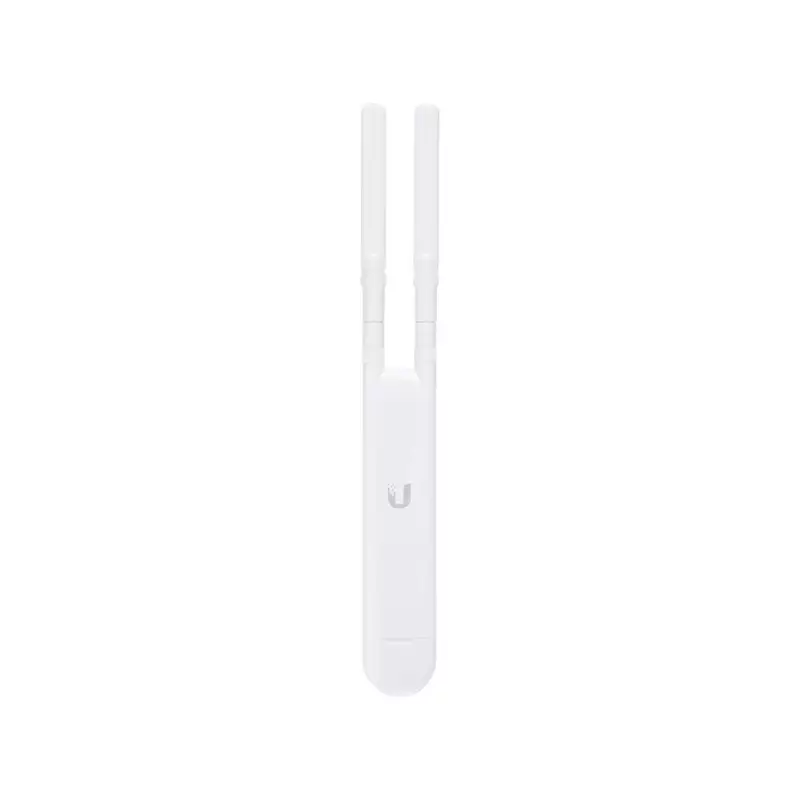

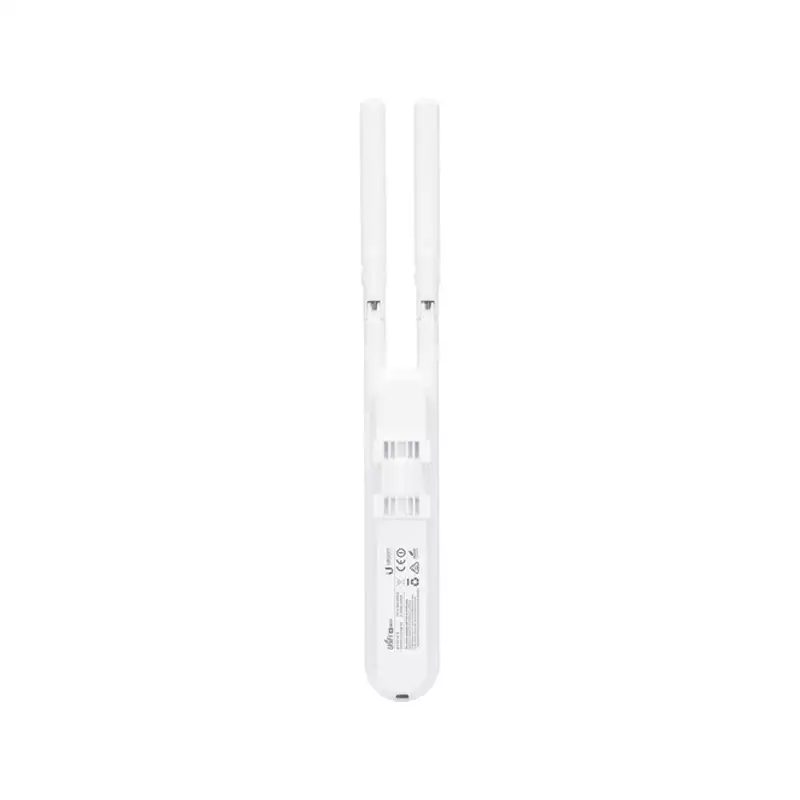

The Ubiquiti UAP-AC-M Dual-Band Access Point is a powerful wireless networking solution that delivers fast and reliable Wi-Fi connectivity. With support for Wi-Fi 5 (802.11ac) and dual-band (2.4 & 5 GHz) operation, this access point provides exceptional performance and throughput of up to 1167 Mb/s total (300 Mb/s on 2.4 GHz and 867 Mb/s on 5 GHz). The device features two external antennas with 3 to 4 dBi antenna gain and transmit power of up to 20 dBm, ensuring optimal coverage and signal strength across your network. This access point also supports important wireless security protocols such as AES, TKIP, WEP, WPA, WPA-PSK, and WPA2, providing robust protection for your network. It can accommodate up to 200 clients and supports up to four SSIDs, making it ideal for small to mid-size businesses and home users alike. With a compact design measuring 13.9 x 1.8 x 1.4 inches and a weight of just 0.3 lb, the UAP-AC-M is easy to install and manage. It comes with a single 10/100/1000 Mb/s Gigabit Ethernet (RJ45) port for wired connectivity and supports IEEE standards like 802.11i and 802.3af. Other features include WMM support, which prioritizes traffic for optimized streaming and gaming experiences, and low power consumption of just 8.5 W. This product is available in Techland BD, and its package weighs 1.42 lb with box dimensions of 9.85 x 4.45 x 3.35 inches.
Networking & Connectivity | |
Transmit Power |
20 dBm
|
Max SSIDs Supported |
4
|
Number of Antennas |
2
|
Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
|
Antenna Gain |
3 to 4 dBi
|
Wireless Security |
AES, TKIP, WEP, WPA, WPA-PSK, WPA2
|

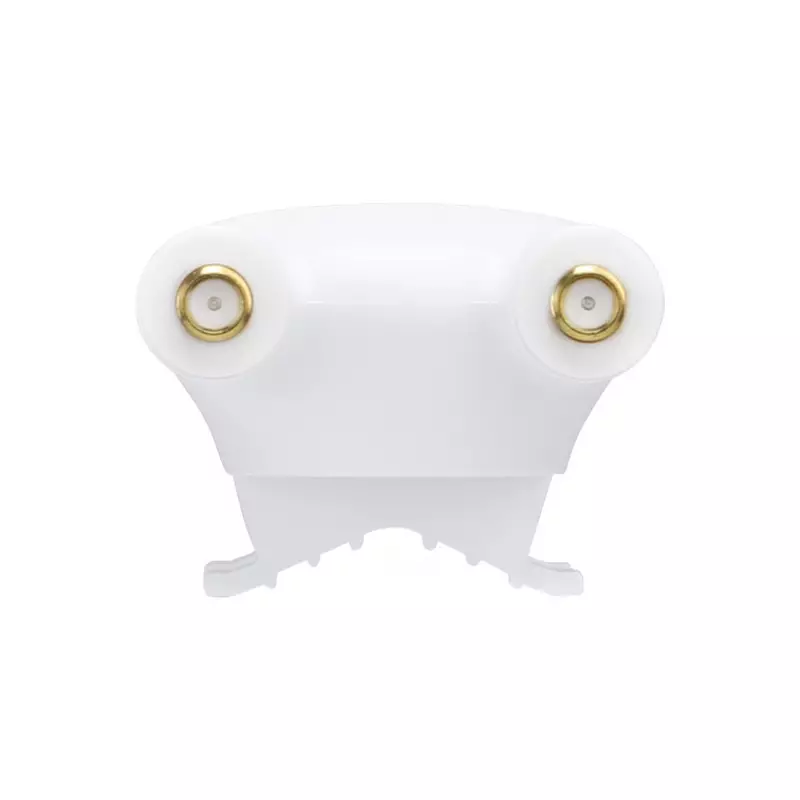

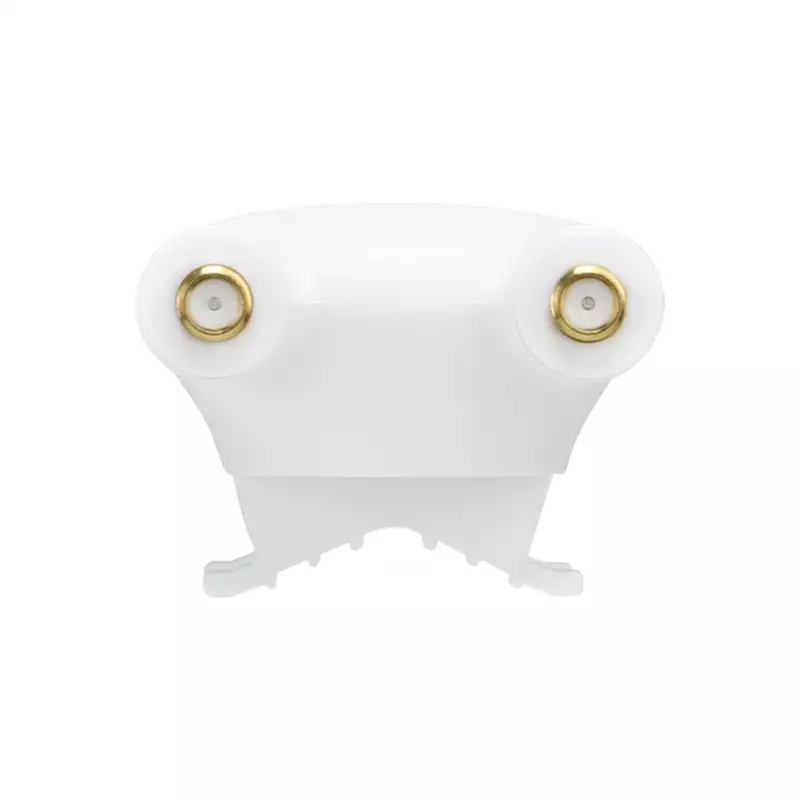

Antenna Placement |
External (Unspecified Connection Type)
|
Throughput |
1167 Mb/s Total
2.4 GHz: 300 Mb/s 5 GHz: 867 Mb/s |
Supported IEEE Standards |
802.11i, 802.3af
|
Battery And Power | |
Power Consumption |
8.5 W
|
Ports | |
Inputs/Outputs |

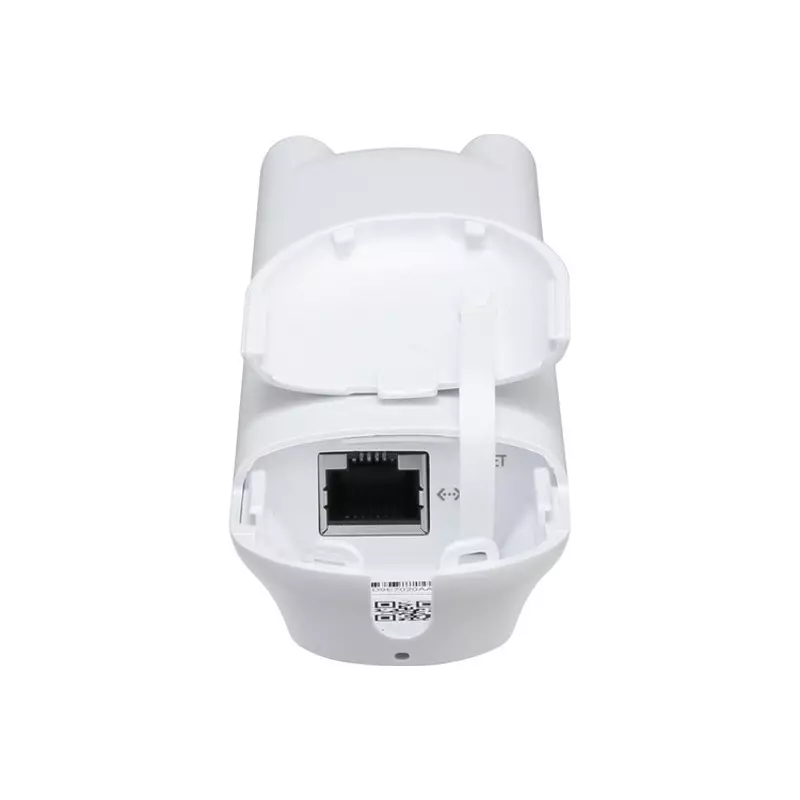

1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
|
Others | |
Operating Temperature |
-22 to 158°F / -30 to 70°C
|
Physical Specification | |
Operating Humidity |
5 to 95%
|
Dimension |
13.9 x 1.8 x 1.4" / 35.3 x 4.6 x 3.4 cm
|
Weight |
0.3 lb / 0.1 kg
|
Technical Info | |
Supported Clients |
200
|
