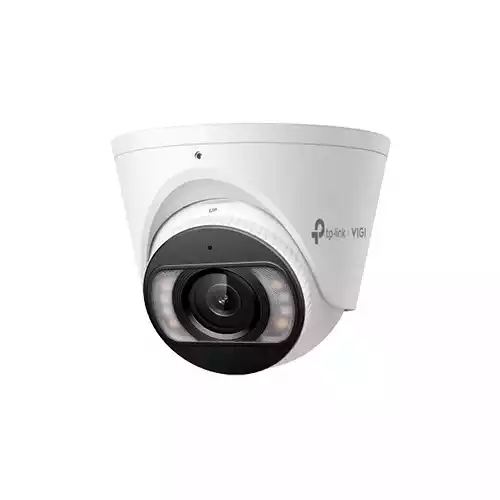

TP-Link VIGI C445 4MP Full-Color Turret Network Camera is an advanced security solution designed to provide high-resolution surveillance with cutting-edge features. Equipped with a 1/2.7” Progressive Scan CMOS image sensor, it captures sharp 2688 x 1520 resolution video, ensuring crystal-clear footage. The camera offers superior night vision, thanks to its four IR LEDs and four white LEDs, providing up to 30m of illumination in complete darkness. With a fixed focal lens available in 2.8mm and 4mm options, users get a wide field of view (up to 118° diagonal FOV) for comprehensive area coverage. Its smart AI-powered features, including human and vehicle classification, intrusion detection, and line-crossing alerts, enhance security by reducing false alarms. The 120dB wide dynamic range (WDR) and 3D digital noise reduction (DNR) ensure clear images even in challenging lighting conditions. Supporting H.265+ compression technology, the camera efficiently reduces bandwidth usage while maintaining high-quality video. The built-in microphone and speaker enable two-way audio communication, allowing remote interaction. It offers multiple connectivity options, including an RJ45 Ethernet port with PoE support, ensuring hassle-free installation. Users can store footage using a MicroSD card (up to 256GB), cloud storage, or network video recorders (NVRs). With IP67-rated weatherproof protection, the camera withstands harsh outdoor conditions, making it ideal for both indoor and outdoor surveillance. The VIGI App, Web UI, and VIGI Security Manager provide easy remote monitoring and management. Whether for home, office, or business security, the TP-Link VIGI C445 is a top-tier choice for 24/7 surveillance. Get yours today at Tech Land BD and secure your premises with cutting-edge technology!
Display | |
Image Sensor |
1/2.7” Progressive Scan CMOS
|
Image |
Image Settings
• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range - 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. SNR - ≥ 52 dB Image Parameters Switch - Yes Privacy Mask - Up to 4 Masks ROI - 1 Region OSD Setting - Yes |
Camera | |
Electronic Shutter Speed |
1/3 to 1/10000 s
|
Camera Resolution |
2688 x 1520
|
Lens type |
Fixed Focal Lens
|
Lens Mount |
M12*P 0.5
|
Focal Length |
2.8/4 mm
|
Maximum Aperture |
F1.6
|
Networking & Connectivity | |
Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP,
DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Networks |
ONVIF - Yes
API - Open Network Video Interface (Profile S) Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS Web Browser Google Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above Cloud - Yes |
Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
|
Audio & Microphone | |
Built-in Mic |
Yes; Records Anything Going on within a 15-ft Radius of the Camera
|
Built-in Speaker |
Yes
|
Audio |
Audio Communication - Two-Way Audio
Audio Input - Yes Audio Output - Yes Audio Compression - Yes Audio Sampling Rate - 8KHz Environment Noise Filtering - Yes Audio Bit Rate - 64 Kbps(G.711 alaw) |
Battery And Power | |
Power Supply |
12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 12 W |
Power |
DC Power Port
|
Security | |
Security Feature |
Password Protection, HTTPS Encryption,
IP Address Filter, Digest Authentication |
Video Features | |
Video Features |
Main Stream
Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution 704x576,640x480, 352x288, 320x240 Note If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control CBR, VBR Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 H.264 Type High Profile H.264+ Main Stream Supported H.265 Type Main Profile* H.265+ Main Stream Supported* Video Bit Rate Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
Special Features | |
Certifications |
CE, NTRA, VCCI, KC, BSMI, FCC, IC
|
Protection |
IP67
|
Speacial Features |
ALARM AND EVENT MANAGEMENT
Smart Event • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • Smart Frame • People Detection • Vehicle Detection Basic Event • Motion Detection • Video Tampering Detection • Exception ( Illegal Login) • Scene Change Detection Alarm Linkage • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing |
Others | |
Button |
Reset Button - Yes
|
Other Features |
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB** People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. Output Notification - Message Push ILLUMINATOR IR LED Quantity: 4 Range: 30m Wavelength: 850nm White LED Quantity: 4 Range: 30m Illuminator On/Off Control Auto/Scheduled/Always on/Always off Angle Adjustment (Manual) Range - Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360° FOV 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 118° 4 mm: Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4° DORI Distance 2.8 mm Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 6 m (20 ft) 4 mm Detect: 80 m (262 ft) Observe: 33 m (108 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) Slow Shutter - Yes Minimum Illumination 0.005 Lux; 0 Lux with IR/White light Day/Night Mechanism - IR Cut Filter Day/Night Switch - Unified/ Scheduled/ Auto |
Physical Specification | |
Color |
White
|
Package Contents |
VIGI Network Camera
Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Operating Humidity |
95% or Less (Non-Condensing)
|
Storage humidity |
95% or Less (Non-Condensing)
|
Materials |
Metal
|
Dimension |
111 × 111 × 83.7 mm
|
Storage Temperature |
-40–60 °C
|
Weight |
0.48 Kg
|
Warranty Information | |
Warranty |
1-Year
|
