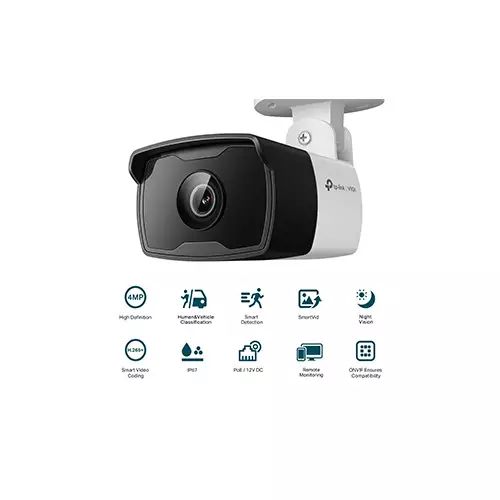

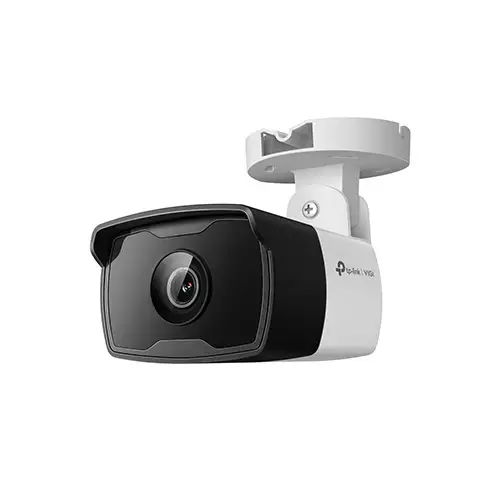

TP-Link VIGI C340I 4MP IR Bullet Network Outdoor Camera is a high-performance surveillance solution designed for outdoor security, offering exceptional image quality and advanced features. With a 4MP resolution (2560 × 1440), this camera delivers crystal-clear footage, ensuring every detail is captured. It features a 1/3” progressive scan CMOS sensor, 3D digital noise reduction (DNR), and DWDR (Digital Wide Dynamic Range) for superior image clarity in various lighting conditions. The camera supports H.265+/H.265/H.264+/H.264 video compression, reducing bandwidth and storage requirements without compromising quality. Equipped with a fixed focal lens (2.8mm/4mm/6mm options), it provides wide viewing angles (up to 106.5° diagonally) and a DORI distance of up to 120 meters for detection, making it ideal for monitoring large outdoor areas. The built-in IR LEDs offer night vision up to 30 meters, ensuring 24/7 surveillance. Its IP67 weatherproof rating guarantees durability in harsh environments, while the robust design withstands temperatures from -30°C to 60°C. The camera supports smart features like human and vehicle classification, intrusion detection, line-crossing detection, and more, enhancing security with intelligent event triggers. It also offers multiple connectivity options, including PoE (Power over Ethernet) for easy installation. Customers in Bangladesh can purchase this reliable outdoor camera from Tech Land BD, a trusted retailer known for providing cutting-edge security solutions. Whether for home, office, or commercial use, the TP-Link VIGI C340I ensures comprehensive security with its advanced technology and user-friendly features.
Display | |
Image Sensor |
1/3” Progressive Scan CMOS
|
Image |
Image Settings:
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) Image Enhancement: BLC/3D DNR/HLC/SmartIR Wide Dynamic Range: DWDR SNR : ≥ 52 dB Image Parameters Switch: Yes Privacy Mask: Up to 4 Masks ROI: 1 Region OSD Setting: Yes Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) Image Enhancement BLC/3D DNR/HLC/SmartIR |
Viewing Angle |
47.7°/26.5°/56°(H/V/D)
|
Camera | |
Aperture |
6 mm: F2.0
|
LENS |
6 mm
|
Shutter Speed |
1/3 to 1/10000 s
|
Lens Mount |
M12
|
Networking & Connectivity | |
Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS |
Networks |
ONVIF: Yes
API: ONVIF Simultaneous Live View: 3 Main Streams & 3 Sub-Streams Client: VIGI App, VIGI Security Manager, VIGI NVR, Web Web Browser: Google Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above Cloud: Yes Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Network Storage: NAS (NFS, SMB/ CIFS) |
Battery And Power | |
Power Supply |
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0) |
Power Consumption |
12V DC: Max 5W
PoE: Class 0 |
Power |
DC Power Port
|
Ports | |
Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port
|
Video Features | |
Video |
Max. Resolution: 2560 × 1440
Main Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Bit Rate Control: CBR, VBR Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 H.264 Type: Main Profile/High Profile H.264+: Main Stream Supported H.265 Type: Main Profile H.265+: Main Stream Supported Video Bit Rate Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 Frame Rate & Resolutions Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240 Max. Resolution:4MP (2560 × 1440) Video Streaming: Main Stream, Sub-Stream Video Bit Rate: 64 Kbps to 4 Mbps Day/Night Switch: Day/Night/Auto/Schedule |
Special Features | |
Waterproof level |
IP67
|
Certifications |
CE/BSMI/VCCI/ONVIF
|
Features |
Two Streams, Mirror, Privacy Masks,
Password Reset via E-mail, HTTP Listening |
Smart Features |
Smart Event:
Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login) Linkage Method: Trigger Notification: ONVIF, HTTPS Region of Interest: 1 Region |
Others | |
Other Features |
Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism: IR Cut Filter Day/Night Switch: Day/Night/Auto/Schedule-Switch Digital Noise Reduction: 3D DNR WDR: DWDR IR Working Distance: 30m DORI Distance Detect: 120 m (394 ft) Observe: 50 m (164 ft) Recognize: 24 m (79 ft) Identify: 12 m (39 ft) IR LED: Quantity: 2 Range: 30m Wavelength: 850nm Illuminator On/Off Control Auto/Scheduled/Always on/Always off |
Physical Specification | |
Package Contents |
VIGI Network Camera
Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Operating Humidity |
95% or Less (Non-Condensing)
|
Storage humidity |
95% or Less (Non-Condensing)
|
Materials |
Plastic
|
Dimension |
174 × 74 × 71 mm
|
Storage Temperature |
-40–60 °C
|
Weight |
Net Weight: 0.2 Kg
Gross Weight: 0.35 Kg |
Technical Info | |
Range |
Pan: -90° to 90°
Tilt: -90° to 90° |
Brand |
TP-link
|
Model |
VIGI C340
|
Management |
Smart Event:
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login) Alarm Linkage: Message Push Output Notification: Message Push |
Warranty Information | |
Warranty |
1-Year
|
