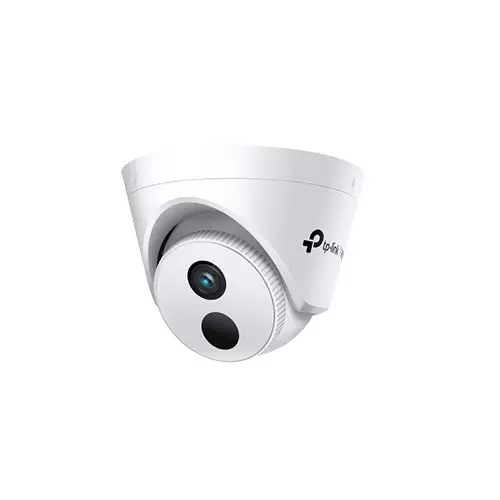

TP-Link VIGI C430I 3MP IR Turret Network Camera is a high-performance surveillance solution designed for homes, offices, and businesses. Featuring a 3MP (2304 × 1296) resolution, this camera delivers clear and detailed video footage. It comes with a 1/2.8” Progressive Scan CMOS sensor, ensuring crisp images even in low-light conditions. The 30m infrared (IR) range provides enhanced night vision, while smart detection features such as human and vehicle classification, intrusion detection, and motion detection help in identifying threats efficiently. The fixed focal lens (2.8mm/4mm) with wide viewing angles captures more area, reducing blind spots. Advanced video compression (H.265+/H.264+) ensures efficient storage usage and smooth streaming. The camera supports PoE (Power over Ethernet) for easy installation, eliminating the need for separate power cables. Built with durability in mind, it operates in extreme temperatures ranging from -30°C to 60°C. The VIGI C430I camera is compatible with the VIGI app, VIGI Security Manager, and VIGI NVR, providing seamless remote monitoring from any device. If you're looking for a reliable and feature-packed surveillance camera, purchase the TP-Link VIGI C430I 3MP IR Turret Network Camera from Tech Land BD at the best price with a warranty and expert support.
Yes, it features a 30m IR range for clear night vision.
Yes, the camera supports remote access via the VIGI app, VIGI Security Manager, and VIGI NVR.
Yes, it supports PoE (802.3af/at, class 0), allowing both power and data transmission through a single cable.
Display | |
Image Sensor |
1/2.8” Progressive Scan CMOS
|
Image |
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°) Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range WDR Image Parameters Switch - Yes Privacy Mask - Up to 4 Masks ROI - 1 Region OSD Setting - Yes |
Viewing Angle |
2.8mm: 88.2°/48.7°/106.5°(H/V/D)
4mm: 74.6°/41.3°/88.1°(H/V/D) |
Camera | |
Camera |
Slow Shutter -Yes
Aperture 2.8 mm: F2.2 4 mm: F2.0 Minimum Illumination Color: 0.1 Lux; 0 Lux with IR IR Working Distance 30m Day/Night Switch Unified/ Scheduled/ Auto Digital Noise Reduction 3D DNR WDR DWDR Day/Night Mechanism IR Cut Filter |
LENS |
2.8 mm/ 4 mm
|
Lens type |
Fixed Focal Lens
|
Shutter Speed |
1/3 to 1/10000 s
|
Lens Mount |
M12
|
Focal Length |
2.8/4 mm
|
Networking & Connectivity | |
Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS |
Networks |
Cloud - Yes
ONVIF - Yes API - ONVIF Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI App, VIGI Security Manager, VIGI NVR Web Browser Google Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above |
Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port
|
Audio & Microphone | |
SNR |
≥ 52 dB
|
Audio |
Environment Noise Filtering - Yes
|
Battery And Power | |
Power Supply |
PoE (802.3af/at, class 0)
|
Power Consumption |
PoE: Class 0
|
Security | |
Security Feature |
Password Protection, HTTPS Encryption,
IP Address Filter, Digest Authentication |
Video Features | |
Video Resolution |
2304 × 1296
|
Video Features |
Main Stream
Frame Rate Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream Frame Rate 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 704x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 H.264 Type - Main Profile/High Profile H.264+ - Main Stream Supported H.265 Type - Main Profile H.265+ - Main Stream Supported Video Bit Rate - Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
Special Features | |
Certifications |
CE/BSMI/VCCI/ONVIF
|
Others | |
Other Features |
Smart Event
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login) Alarm Linkage Message Push Linkage Method N/A Output Notification Message Push |
Physical Specification | |
Color |
White
|
Package Contents |
VIGI Network Camera
Quick Start Guide Mounting Accessories |
Operating Humidity |
95% or Less (Non-Condensing)
|
Storage humidity |
95% or Less (Non-Condensing)
|
Materials |
Plastic
|
Operating Temperature |
-30–60 °C
|
Dimension |
123× 83× 123 mm
|
Storage Temperature |
-40–60 °C
|
Weight |
Net Weight - 0.19 Kg
Gross Weight - 0.34 Kg |
Technical Info | |
Brand |
TP-Link
|
Model |
VIGI C430I
|
Warranty Information | |
Warranty |
1-Year
|
