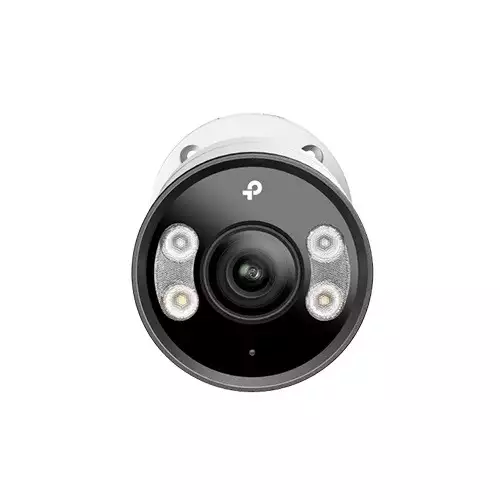

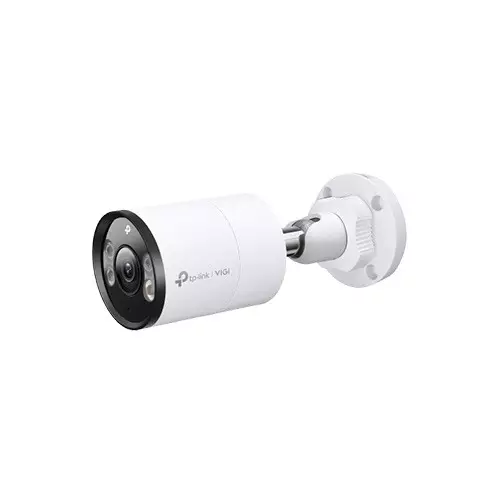

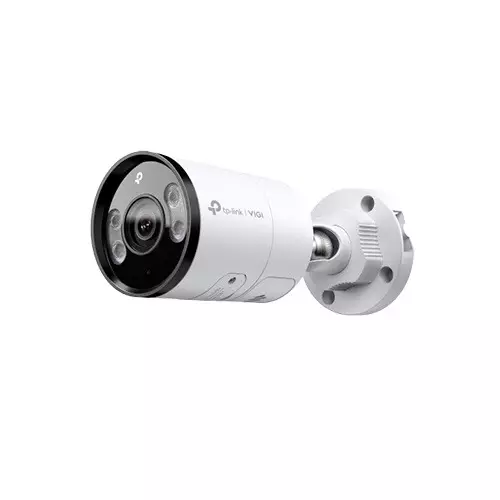

TP-Link VIGI C345 4MP Outdoor Full-Color Bullet Network Camera is a powerful surveillance solution designed for outdoor security monitoring. It features a 1/2.7” Progressive Scan CMOS sensor with a maximum resolution of 4MP (2688 × 1520) at 30 fps, delivering crystal-clear footage for detailed monitoring. Equipped with IR and white LEDs, it provides up to 30 meters of full-color night vision, ensuring round-the-clock security. This camera comes with multiple lens options (2.8mm, 4mm, 6mm) to suit different surveillance needs. The IP67-rated weatherproof design ensures durability against harsh weather conditions. AI-powered smart detection features such as human & vehicle classification, motion detection, loitering detection, and object removal alerts enhance security efficiency. The VIGI C345 supports two-way audio with a built-in microphone and speaker, allowing real-time communication with visitors or intruders. It is compatible with PoE (802.3af/at) and 12V DC power, providing flexible installation options. Additionally, it supports local storage via a microSD card (up to 512GB) and cloud storage for secure data backup. With support for VIGI App, VIGI Security Manager, Web UI, and ONVIF integration, users can access live monitoring and playback remotely. Get the best price in Bangladesh at Tech Land BD with a 1-year warranty!
Yes, it features 30m full-color night vision with IR and white LEDs, ensuring clear footage in low-light conditions.
Yes, the built-in microphone and speaker allow two-way audio communication, enabling real-time interaction.
Yes, its IP67-rated housing makes it dustproof and waterproof, ensuring reliable performance in all weather conditions.
Display | |
Image Sensor |
1/2.7” Progressive Scan CMOS
|
Image |
Image Settings
• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. SNR - ≥ 52 dB Image Parameters Switch - Yes Privacy Mask - Up to 4 Masks ROI - 1 Region OSD Setting - Yes |
Camera | |
Lens type |
Fixed Focal Lens
|
Shutter Speed |
1/3 to 1/10000 s
|
Lens Mount |
M12*P 0.5
|
Focal Length |
2.8/4/6 mm
|
Networking & Connectivity | |
Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS,
DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
|
Audio & Microphone | |
Built-in Mic |
Yes; Records Anything Going on within a 15-ft Radius of the Camera
|
Built-in Speaker |
Yes
|
Audio |
Audio Communication - Two-Way Audio
Audio Input Yes Audio Output - Yes Audio Compression - Yes Audio Sampling Rate - 8KHz Environment Noise Filtering - Yes Audio Bit Rate - 64 Kbps(G.711 alaw) |
Battery And Power | |
Power Supply |
12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 10.7 W |
Power |
DC Power Port
|
Security | |
Security Feature |
Password Protection, HTTPS Encryption,
IP Address Filter, Digest Authentication |
Video Features | |
Video Resolution |
Max. Resolution - 2688 x 1520
|
Video Features |
Main Stream
• Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 704x576,640x480, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control CBR, VBR Video Compression • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 H.264 Type High Profile H.264+ Main Stream Supported H.265 Type Main Profile* H.265+ Main Stream Supported* Video Bit Rate • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
Special Features | |
Certifications |
CE, NTRA, VCCI, KC, BSMI, FCC, IC
|
Protection |
IP67
|
Others | |
Button |
yes
|
Other Features |
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** Deep Learning Function People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. Output Notificatio - Message Push ALARM AND EVENT MANAGEMENT Smart Event • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • Smart Frame • People Detection • Vehicle Detection Basic Event • Motion Detection • Video Tampering Detection • Exception ( Illegal Login) • Scene Change Detection Alarm Linkage • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing Cloud - Yes ONVIF - Yes API - Open Network Video Interface (Profile S) Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS Web Browser • Google Chrome 57 and above • Firefox 52 and above • Safari 11 and above • Microsoft Edge 91 and above ILLUMINATOR IR LED • Quantity: 2 • Range: 30m • Wavelength: 850nm White LED • Quantity: 2 • Range: 30m Illuminator On/Off Control Auto/Scheduled/Always on/Always off Angle Adjustment (Manual) Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° DORI Distance • 2.8 mm Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 6 m (20 ft) • 4 mm Detect: 80 m (262 ft) Observe: 33 m (108 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) • 6 mm Detect: 120 m (394 ft) Observe: 50 m (164 ft) Recognize: 24 m (79 ft) Identify: 12 m (39 ft) FOV • 2.8 mm: Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118° • 4 mm: Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7° • 6 mm: Horizontal FOV: 52.7°, Vertical FOV: 29°, Diagonal FOV: 60.8° Slow Shutter - Yes Minimum Illumination 0.005 Lux; 0 Lux with IR/White light Day/Night Mechanism IR Cut Filter Day/Night Switch Unified/ Scheduled/ Auto |
Physical Specification | |
Color |
White
|
Package Contents |
VIGI Network Camera

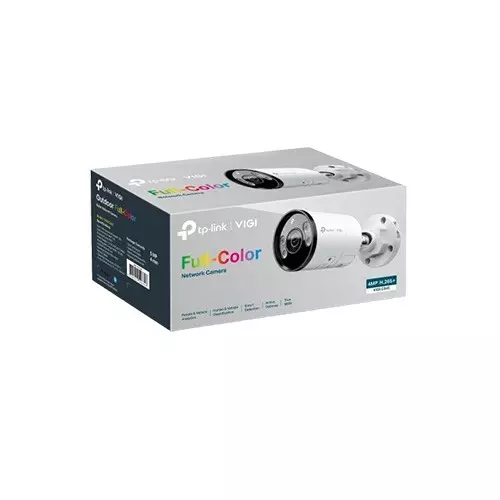

Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Operating Humidity |
95% or Less (Non-Condensing)
|
Storage humidity |
95% or Less (Non-Condensing)
|
Materials |
Metal
|
Operating Temperature |
-30–60 °C
|
Dimension |
74 × 184 × 74 mm
|
Storage Temperature |
-40–60 °C
|
Weight |
0.525 Kg
|
Technical Info | |
Brand |
Tp-Link
|
Model |
VIGI C345
|
Warranty Information | |
Warranty |
3-Years
|
