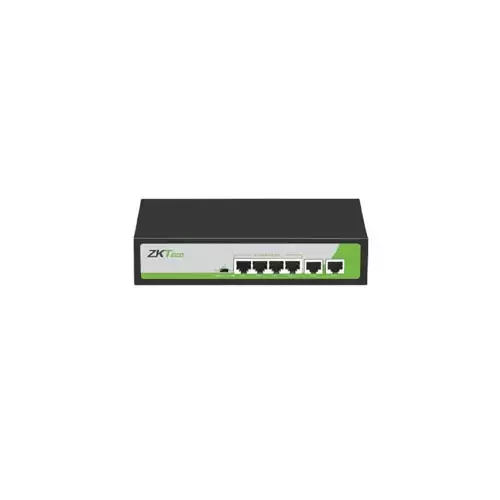

ZKTeco PE042-55-C 4 Ports PoE Switch

ZKTeco PE042-55-C 4 Ports PoE Switch in Bnagladesh

The ZKTeco PE042-55-C is a reliable and compact 4-port PoE (Power over Ethernet) switch designed for small to medium-sized network environments. Featuring a total of 6 ports – 4 PoE-enabled 10/100Mbps RJ-45 ports and 2 uplink ports – this desktop-form-factor switch provides both data connectivity and power transmission to compatible devices such as IP cameras, access control terminals, and VoIP phones. Built with a durable black casing, the switch is engineered for professional use and optimized for space-saving installations.Compliant with IEEE802.3af and IEEE802.3at standards, the PE042-55-C supports a maximum PoE output of 15.4W or 30W per port, making it ideal for high-power networked devices. The total PoE power budget is supported by a built-in power supply operating at AC 110–260V input with a 52V1.25A output. With a backplane bandwidth of 1.2Gbps and packet forwarding rate of 0.1488Mpps per port, it ensures smooth data transmission and low latency.n terms of reliability, it boasts a MAC address table of 1K entries and a 448K packet buffer memory, along with a robust store-and-forward switching mechanism. Designed for stability in diverse conditions, it operates efficiently between -20°C to 55°C with 10% to 90% non-condensing humidity. The switch is compatible with Cat3, Cat5e, and Cat6a cables, with transmission distances ranging from 100m to 250m based on the cable type. With a compact size of 200 x 120 x 45mm and weight of just 520g, the ZKTeco PE042-55-C is a cost-effective, durable, and efficient solution for powering and managing your PoE-enabled devices.

FAQs:

1. What types of devices can be powered using the PoE ports on the PE042-55-C switch?

The PE042-55-C supports IEEE802.3af and IEEE802.3at standards, making it compatible with a wide range of PoE devices such as IP cameras, VoIP phones, wireless access points, and biometric access control terminals.

2. What is the maximum distance supported for data and power transmission?

Using standard Cat5e or Cat6 cables, the switch can support transmission distances up to 100 meters. With Cat6a cables, it can reach up to 250 meters under optimal conditions.

3. Is the PE042-55-C switch suitable for outdoor or industrial use?

While the switch is not waterproof or industrial-grade, it operates reliably in challenging environments with a wide temperature range of -20°C to 55°C and up to 90% non-condensing humidity. It is suitable for indoor setups in commercial or semi-industrial spaces.
