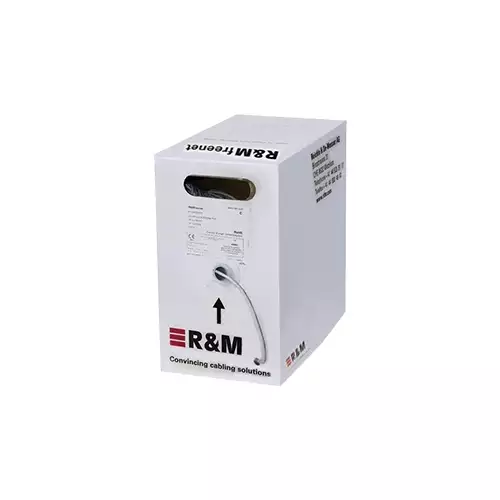

R&M CAT6 U/UTP FRPVC CABLE BOX (YELLOW/BLUE/GREY)

Stock : In Stock PID : P4212506001 Brand : R&M Model : CAT6 U/UTP FRPVC Warranty : No Warranty
0 Reviews

Discount Price

৳ 14,700 15,500

Available Payment Method

EMI Start From*

৳ 518

View Banks EMI Plans

Buy Now
Description Reviews

R&M CAT6 U/UTP FRPVC SPECIFICATION

Standard
ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1
Color
  • Yellow
  • Blue
  • Grey
Conductor
Bare solid copper
Insulation
HDPE, overall Ø 0.92±0.02 mm
Twisting
2 wires to the pair
Cable Lay-Up
4 pairs to the core with cross separator
Sheath
PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal
Application
Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM
Standards
ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1
Fire Rating
Flame retardant- PVC
Cable Designation
U/UTP Cat.6 250MHz
Packaging
Drum 305 m
Outer Diameter
5.8±0.3mm
Pulling Pressure
11Kg nominal
Segregation Class
B
Tensile Strength
16.5N/mm²
Weight
13.0kg nominal


R&M CAT6 U/UTP FRPVC CABLE BOX (YELLOW/BLUE/GREY) in Bangladesh


R&M Cat 6 U/UTP Cable Box comes with Bare solid copper Conductor, HDPE, overall Ø 0.92±0.02 mm, 2 wires to the pair Twisting, 4 pairs to the core with cross separator Cable lay up, PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal. It is ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 Standard. This Cable Box also featured with U/UTP Cat.6 250MHz Cable designation, 5.8±0.3mm Outer diameter, 13.0kg nominal/305m Weight, 11Kg nominal Pulling Pressure, B Segregation class with > 16.5N/mm² Tensile Strength. It also comes with ≥ 25 mm during operation (without load), ≥ 50 mm during installation (with load) Bending radius with During operation -20°C…+ 60°C, During installation 0°C…+ 50°C. This Cable Box also features with different kinds of Electrical Properties (at 20°C ± 5°C), these are ≤ 9.38 Ω / 100 m Conductor resistance, ≤ 2 % Resistance unbalance, 1000 V; DC, 1 min, core/core Test voltage, ≥ 5000 MΩ km; 500 V Insulation resistance, 44 pF / m max Capacitance, ≤ 1500 pF/km Capacitance unbalances, 100 ± 15 Ω; impedance @ 100 MHz Mean characteristics, Approx. 69 % Nominal velocity of propagation, ≤ 536 ns / 100 m; At 1 MHz Propagation delay, ≤ 45 ns / 100 m Delay skew, ≥ 40 dB Coupling attenuation.

Write A Review

What is the R&M CAT6 U/UTP FRPVC CABLE BOX (YELLOW/BLUE/GREY) Price in Bangladesh 2025 ?

The R&M CAT6 U/UTP FRPVC Price in BD is 14,700৳ . This R&M CAT6 U/UTP FRPVC CABLE BOX (YELLOW/BLUE/GREY) Manufacturing by R&M Comes With No Warranty Warranty & Based on 0 reviews. Tech Land BD Offers you R&M CAT6 U/UTP FRPVC by 14,700৳ and its regular price is 15,500৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
