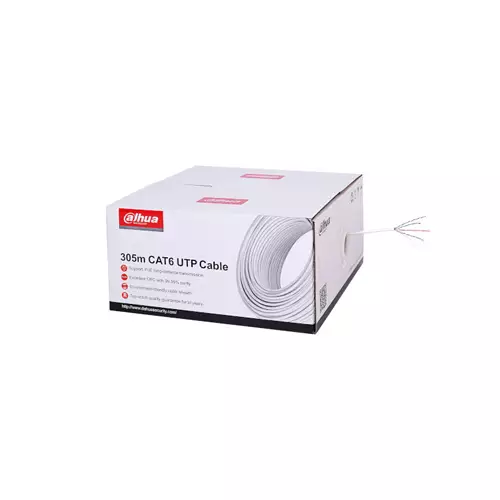

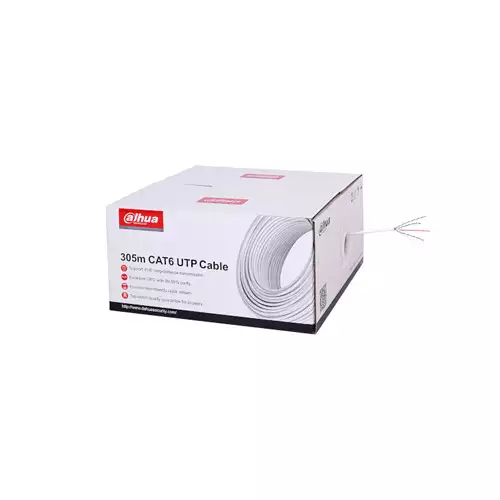

DAHUA DH-PFM920I-6UN-C UTP CAT6 CPR E/ UL CM CABLE

Stock : In Stock PID : P0292506043 Brand : Dahua Model : DH-PFM920I-6UN-C
0 Reviews


Discount Price

৳ 11,000 12,650

Available Payment Method

EMI Start From*

৳ 387

View Banks EMI Plans

Buy Now
Description Reviews

DAHUA DH-PFM920I-6UN-C CABLE

Specification
  • Oxygen Free Copper(OFC) material
  • The structure is 4P x 0.53±0.01mm
  • HDPE material
  • The minimum average thickness is 0.21mm
  • Diameter is 0.95mm x 0.05mm
  • Color (4 Pairs)
  • Tensile strength is ≥16MPa
  • Elongation at break is ≥300%
  • PVC material
  • The minimum average thickness is 0.40mm
  • Diameter is 6.0±0.50mm
  • The surface is smooth, full, and tight
  • Tensile strength before aging is ≥13.5MPa
  • Tensile strength after aging is ≥12.5MPa
  • Characteristic impedance (1-250MHz) is 100±15Ω
  • DC resistance is ≤9.38Ω/ 100m
  • The Maximum unbalance rate of the line pair's direct current is ≤5%
  • Time delay is ≤45ns/ 100m
  • Maximum mutual capacitance is 5.6nF/ 100m
  • Minimum insulation resistance is 5000MΩ·km

DAHUA DH-PFM920I-6UN-C CABLE in Bangladesh

This is a description of a cable consisting of 4 pairs of copper conductors, with an oxygen-free copper (OFC) structure of 4P x 0.53±0.01mm. The conductors are insulated with HDPE material of minimum average thickness 0.21mm and diameter 0.95mm x 0.05mm. The 4 pairs are color-coded as orange and white/orange, green and white/green, blue and white/blue, and brown and white/brown. The cable has a tensile strength of ≥16MPa and elongation at break of ≥300%. The jacket is made of PVC material with a minimum average thickness of 0.40mm, a diameter of 6.0±0.50mm, and a smooth, full, and tight surface. The tensile strength before aging is ≥13.5MPa and after aging is ≥12.5MPa. The cable has a characteristic impedance of 100±15Ω (1-250MHz), DC resistance of ≤9.38Ω/ 100m, maximum unbalance rate of the line pair's direct current of ≤5%, time delay of ≤45ns/ 100m, maximum mutual capacitance of 5.6nF/ 100m, and minimum insulation resistance of 5000MΩ·km.


Write A Review

What is the DAHUA DH-PFM920I-6UN-C UTP CAT6 CPR E/ UL CM CABLE Price in Bangladesh 2025 ?

The Dahua DH-PFM920I-6UN-C Price in BD is 11,000৳ . This DAHUA DH-PFM920I-6UN-C UTP CAT6 CPR E/ UL CM CABLE Manufacturing by Dahua Comes With Warranty & Based on 0 reviews. Tech Land BD Offers you Dahua DH-PFM920I-6UN-C by 11,000৳ and its regular price is 12,650৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
