FEATURES
AC1200 Gigabit Speeds
Dual Band WiFi Delivers Fast Connections for All Devices
Complying with the powerful 802.11ac standard, MR30G delivers blazing-fast WiFi speeds up to 1.2 Gbps. Choose the 2.4 GHz band (300 Mbps) that transmits signals with better wall penetration for longer distances as you browse the internet, email a colleague, or share a link on social media. When you’re streaming HD videos, gaming, or other bandwidth-intensive tasks, choose the 5 GHz band (867 Mbps) which delivers higher speeds with less interference.â€
MU-MIMO Technology
More Devices Connected Simultaneously
A traditional router has to queue up your devices when there are multiple connections at the same time, causing congestion across the network. However, with MU-MIMO technology, MR30G communicates with multiple devices at the same time to allow connected devices to achieve faster speeds than standard AC routers, improving network efficiency.
High-Gain Antennas with Beamforming
Targeted Signals that Penetrate Walls

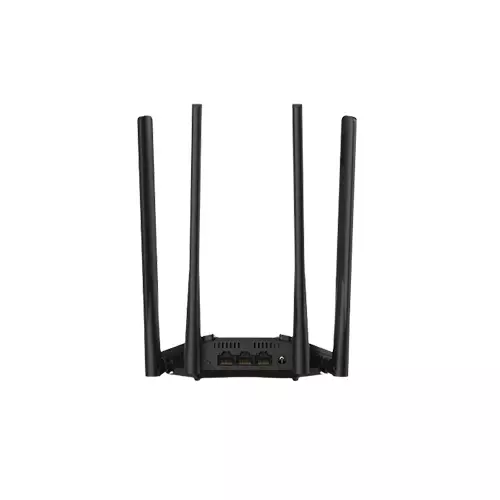

Four external 5 dBi high-gain antennas with well-designed internal structures greatly increase transmission performance, covering more rooms. Advanced Beamforming technology automatically locates wireless devices and forms targeted, highly efficient wireless connections, making your connections more stable.
Powerful Signal Amplifiers
Strong WiFi Signals Throughout Your Home
MR30G unleashes the full potential of your network by strengthening signal transmissions with power amplifiers and accelerating signal capture with low-noise amplifiers. This means your home WiFi has improved range and full-signal strength for every device.
Gigabit Wired Speeds
Full Gigabit Ports for PCs, IPTVs, and Game Consoles
Equipped with full gigabit ports which are 10× faster than Ethernet ports, MR30G transfers data at dizzying speeds for peak performance. Connect your PCs, IPTVs, and game consoles to MR30G for robust stability.
Simple Setup
No Need to Call for Help
Simply follow the step-by-step instructions on the intuitive webpage to get set up in minutes. No complicated configuration is required.
Networking & Connectivity | |
Standards |
1ac/a/b/g/n Wi-Fi standards
|
Data Rate |
867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
|
Antenna |
4
|
Antenna Type |
Fixed Omni-Directional Antennas
|
Wireless |
Reception Sensitivity
11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT40 MCS7: -74dBm 11n HT20 MCS7: -71dBm 11a 6Mbps: -97dBm 11a 54Mbps: -79dBm 11ac VHT20 MCS8: -74dBm 11ac VHT40 MCS9: -70dBm 11ac VHT80 MCS9: -65dBm Transmission Power 2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP) |
Frequency |
2.4 GHz
5 GHz |
Encryption |
WPA-PSK / WPA2-PSK
|
Battery And Power | |
Power Mode |
External Power Supply: 5V/0.6A
Transmission Power: <20dBm (EIRP) |
Ports | |
Interface |
1× Gigabit WAN Port + 2× Gigabit LAN Ports
|
Special Features | |
Web Authentication |
Firewall Security: SPI Firewall, IP and MAC Address Binding
Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network |
Others | |
Button |
WPS/Reset Button
|
Other Features |
Operation Modes
Router Mode, Access Point Mode WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP Management Access Control Local Management Remote Management DHCP Server, DHCP Client List NAT Forwarding Port Forwarding, Port Triggering, UPnP, DMZ |
Physical Specification | |
Environment |
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing • Storage Humidity: 5%~90% Non-Condensing |
Package Contents |
• AC1200 Wireless Dual Band Gigabit Router (MR30G)
• Power Adapter • Quick Installation Guide • RJ45 Ethernet Cable |
Dimension |
6.3 × 5.0 × 1.5 in (159.7 × 125.9 × 37.1 mm)
|
Warranty Information | |
Warranty |
1 Year
|
