FEATURES
Non-Stop Entertainment with Dual-Band Wi-Fi
Complying with the powerful 802.11ac standard, AC10 delivers blazing-fast Wi-Fi speeds up to 1200 Mbps, which is 3× faster than the speed of the previous 802.11n standard. Choose the 300 Mbps (2.4 GHz) for internet surfing, email, and social media or 867 Mbps (5 GHz) for bandwidth-intensive tasks like HD streaming and gaming.
Broader Coverage

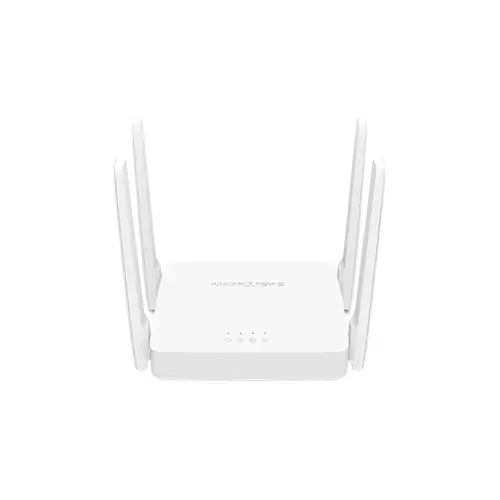

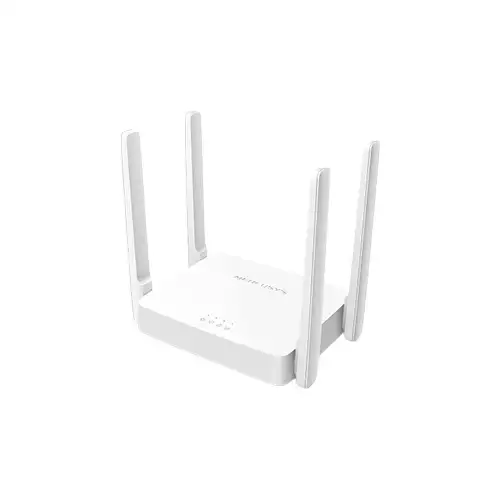

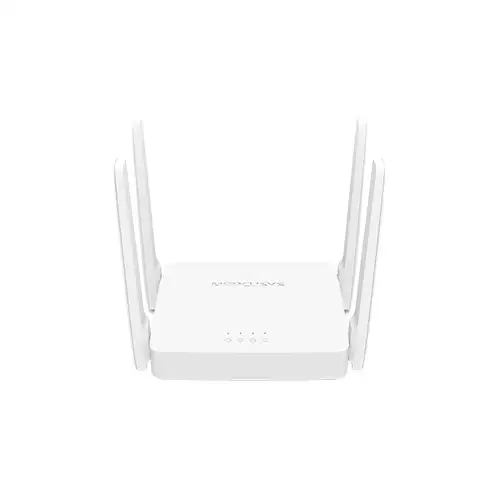

Four external 5dBi antennas powered with advanced antenna technology provide users with larger wireless coverage throughout their home or office. With the combination of Beamforming Technology, the AC10 can detect the location of your connected devices and concentrate wireless signal strength towards them, making your connection more stable.
MU-MIMO Technology
With MU-MIMO, AC10 communicates with multiple devices at the same time to allow connected devices to achieve faster speeds than standard AC routers, increasing overall network throughput.
Easy Installation
With no need for complicated configuration, you can simply follow the step-by-step instructions on the intuitive webpage to set up your AC10 in minutes.
Ready for Smooth IPTV
IGMP Proxy/Snooping, Bridge, and Tag VLAN technology allow your streaming activities to pass through fast LAN ports, optimizing Hi-Resolution videos.
Networking & Connectivity | |
Standards |
IEEE 802.11ac/n/a
|
Data Rate |
Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz
|
Antenna |
4× 5 dBi
|
Antenna Type |
Fixed Omni-Directional Antennas
|
Wireless |
Reception Sensitivity
11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT40 MCS7: -74dBm 11n HT20 MCS7: -71dBm 11a 6Mbps: -97dBm 11a 54Mbps: -79dBm 11ac VHT20 MCS8: -74dBm 11ac VHT40 MCS9: -70dBm 11ac VHT80 MCS9: -65dBm Transmission Power 2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP) Wireless Functions Enable/Disable Wireless Radio, WMM |
Frequency |
2.4 GHz
5 GHz |
Encryption |
WEP
WPA / WPA2-Personal WPA2 / WPA3-Personal |
Battery And Power | |
Power Mode |
9V/0.85A
|
Ports | |
Interface |

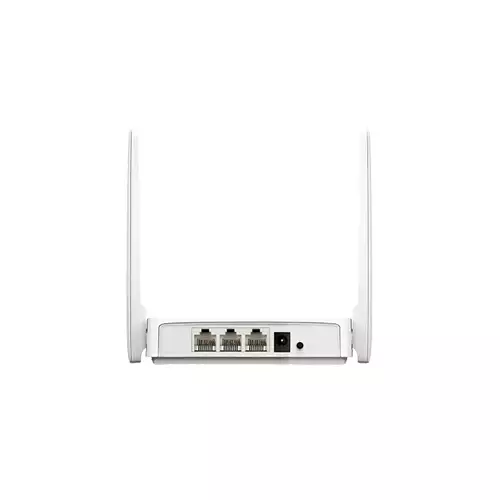

1× Gigabit WAN Port + 3× Gigabit LAN Ports
|
Special Features | |
Web Authentication |
Firewall Security
SPI Firewall, IP and MAC Address Binding Guest Network 2.4 GHz Guest Network, 5 GHz Guest Network |
Others | |
Button |
WPS/Reset Button
|
Other Features |
Operation Modes
Router Mode, Access Point Mode WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP Management Access Control, Local Management, Remote Management DHCP Server, DHCP Client List NAT Forwarding Port Forwarding, Port Triggering, UPnP, DMZ |
Physical Specification | |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing Storage Humidity: 5%~90% Non-Condensing |
Package Contents |
AC1200 Wireless Dual Band Router AC10
Power Adapter Quick Installation Guide RJ45 Ethernet Cable |
Dimension |
4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm)
|
Warranty Information | |
Warranty |
1 Year
|
