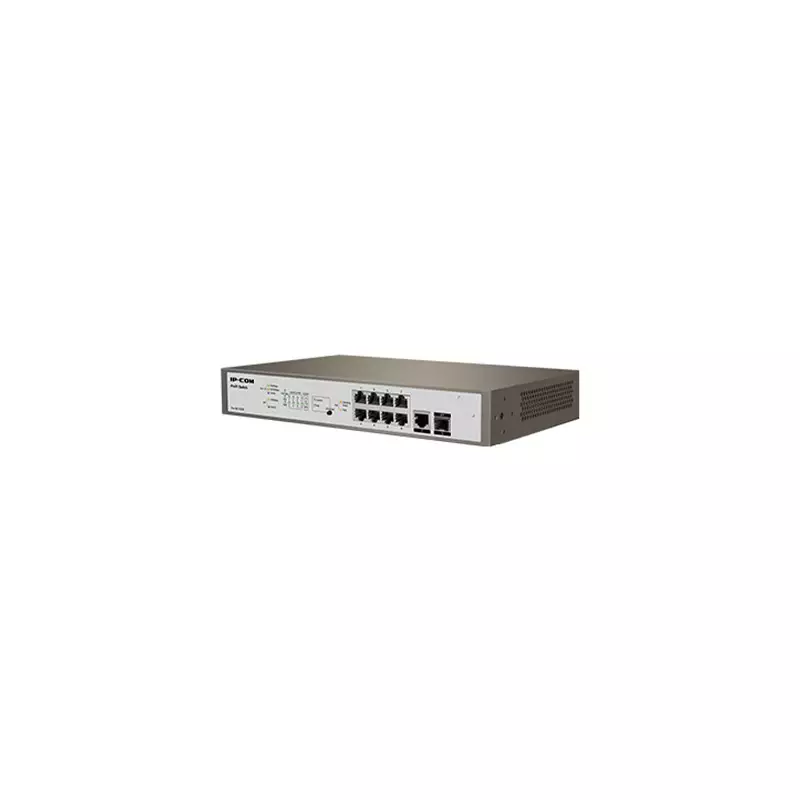

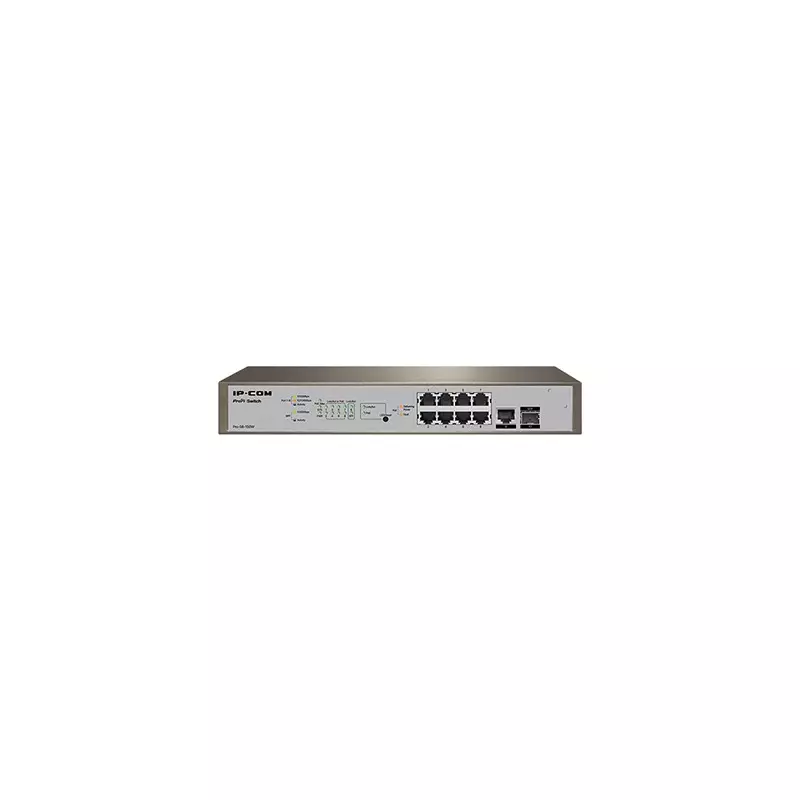

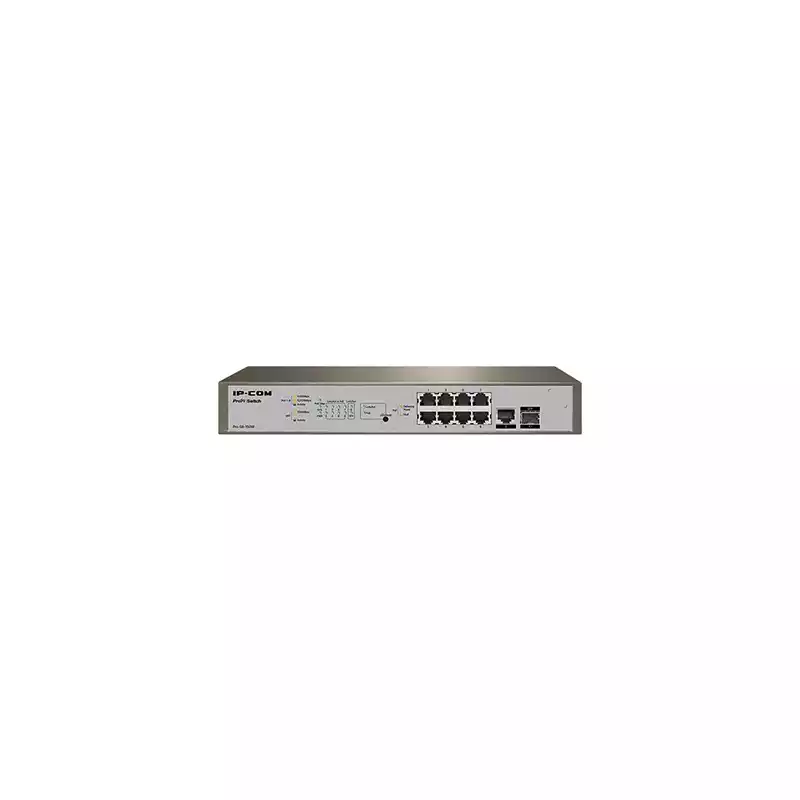

The IP-COM PRO-S8-150W Profi Switch, an epitome of networking prowess, now available at TechLand BD in Bangladesh. This switch sets the benchmark for performance and reliability, adhering to a multitude of IEEE standards including 802.3, 802.3u, 802.3ab, and others, ensuring seamless compatibility and top-tier functionality. Boasting 8 x 10/100/1000 Base-T Ethernet ports equipped with Power over Ethernet (PoE), along with 1 x 10/100/1000 Base-T Ethernet port for data and an additional 1 x 1000 Base-X SFP port, this switch offers exceptional versatility in network deployment. With a robust 16K MAC address capacity and automatic learning, coupled with a large 12Mb buffer, it ensures efficient data handling and delivery. The PRO-S8-150W showcases a formidable switching capacity of 20 Gbps, catering to data-intensive environments with ease. Moreover, it supports an array of essential services including static routing, VLAN, IGMP, QoS, ACL, DHCP Snooping, ARP, and Telnet, enabling tailored network configurations for optimized performance. Embrace superior networking capabilities and manageability with the IP-COM PRO-S8-150W Profi Switch, now available exclusively at TechLand BD.
Networking & Connectivity | |
Network Standard |
IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z、IEEE802.3x、IEEE802.3af/at、IEEE802.1p、IEEE802.1q、IEEE802.1w、IEEE802.1d、IEEE802.1s
|
Data link protocol |
STP (Spanning Tree Protocol) Support IEEE 802.1d STP (Spanning Tree Protocol)
Support IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) Support IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Support edge ports Support BPDU statistics Support BPDU Guard, BPDU Filter Support Root Guard, Loop Guard, and Loopback-detection |
Battery And Power | |
Power |
Port PoE configuration and power supply with priority
PoE over-temperature protection PoE scheduled management Support intelligent management and PoE-powered device detection (port status, power assignment and PoE-powered device status) |
Others | |
Other Features |
LED indicators: One Link/Act or PoE LED indicator for each port
One Link/One Link/Act mode converting LED indicator for each device One PoE mode converting LED indicator for each device One PoE Max LED indicator for each device One Power LED indicator for each device One SYS LED indicator for each device Fixed ports : 8 x 10/100/1000 Base-T Ethernet ports(PoE) 1 x 10/100/1000 Base-T Ethernet port(data) 1 x 1000 Base-X SFP port Lightning protection: Port: 6 kV Power supply: 6 kV Forwarding mode: Store-and-forward Switching capacity: 20 Gbps Packet forwarding rate: 14.9 Mpps Switching buffer: 12 Mbit MAC address table: 16K Input voltage : 100 - 240V AC 50/60Hz PoE power supply: Ports 1 to 8 support IEEE 802.3af/at standard PoE power supply 1 2 4 5 +, and 3 6 7 8 - Whole switch consumption: Whole switch consumption: <150W Maximum PoE output power: 130 W Dimensions (L x W x H): 294 mm * 179.6 mm * 44 mm Certificates: FCC, CE, RoHS Security features: Support ARP receiving limit Support unknown mac address discard Support DoS attack defense Support 802.1x security authentication Support RADIUS authentication VLAN: IEEE 802.1Q VLAN VLAN Layer-3 interfaces Support three port modes: Access, Trunk and Hybrid DHCP: Support DHCP server Support DHCP relay Support DHCP snooping Support Option 82 policy configuration Routing: Support inter-VLAN routing Support IPv4 static routing Support dynamic ARP and static ARP Support ARP aging configuration Port aggregation: Support static aggregation Support LACP dynamic aggregation Support a maximum of 32 aggregation groups and a maximum of 8 member ports in each group Multicast: IGMP Snooping V1/V2/V3 Support port fast leave Port mirroring: N: 1 port mirroring supported QoS: Support SP (Strict Priority) Support SWRR (Simple Weighted Round Robin) Support WRR (Weighted Round Robin) Support 802.1p port trust mode Support DSCP port trust mode Support a maximum of 8-queue service quality mapping Support Tail Drop Support storm suppression Support port speed limit ACL: Support MAC ACL Support IPv4 ACL Loading and upgrade: Support FTP/TFTP/HTTP upgrade Support con guration import and export Management and maintenance: Support centralized control and management by Profi software controller Support CLI configuration Support Telnet remote configuration Support SNMP V1/V2/V3 Support web management and maintenance Support system logs Support log classification Support NTP Support Ping & Tracert tests Support memory and CPU monitoring |
Physical Specification | |
Environment |
Operating temperature: 0°C - 45°C
Operating humidity: (10% - 90%)RH, non-condensing Storage temperature: -40°C - 70°C Storage humidity: (5% - 90%)RH, non-condensing |
Warranty Information | |
Warranty |
1 Year
|
