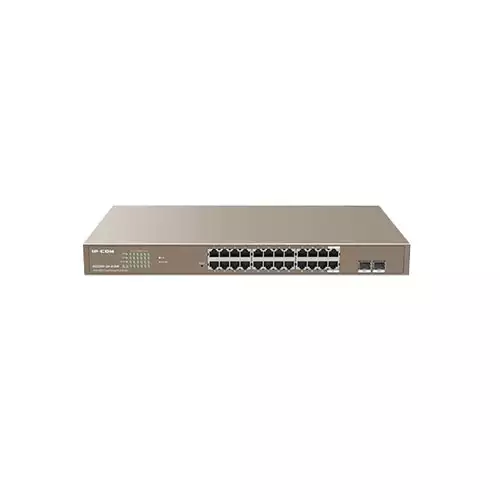

The IP-COM G3326P-24-410W is a robust and versatile cloud-managed PoE switch, equipped with 24 gigabit Ethernet ports and 2 SFP combo ports, offering a total switching capacity of 48 Gbps. It supports IEEE standards, including 802.3af and 802.3at for PoE, providing a maximum PoE output power of 370W. Each port has a Link/Ack LED indicator, and the device itself includes PoE Max, Power, and SYS LED indicators for comprehensive status monitoring. The switch uses a store-and-forward forwarding mode and boasts a packet forwarding rate of 35.7 Mpps with an 8K MAC address table. Designed for durability, it features port lightning protection of ≥6KV and operates efficiently within a temperature range of 0°C to 45°C.
The IP-COM G3326P-24-410W is readily available at Tech Land BD, catering to both small to medium-sized businesses and enterprise-level networks. Its cloud management capabilities allow for seamless configuration, remote maintenance, and monitoring through the IMS cloud platform. This switch supports VLAN, port aggregation, and QoS for optimized network performance, while its PoE features make it ideal for powering IP cameras, phones, and other PoE-enabled devices. The user-friendly interface and robust security features like MAC address binding ensure a reliable and secure network environment.
Upgrade your network infrastructure with the IP-COM G3326P-24-410W, available now at Tech Land BD. This high-performance PoE switch offers exceptional power, flexibility, and security, making it a perfect choice for businesses looking to enhance their network capabilities. Don’t miss out on the opportunity to streamline your network management with advanced cloud features and top-notch performance. Visit Tech Land BD today and experience unparalleled networking efficiency!
Networking & Connectivity | |
MAC Address Table |
8K
|
Switching Capacity |
48 Gbps
|
Network Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p,
IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.3af, IEEE 802.3at |
Battery And Power | |
Voltage |
Input voltage : 100-240V~ 50/60Hz
|
Ports | |
Interface |
24 x 10/100/1000 Base-T Ethernet ports (Data/Power)
2 x 100/1000 Base-X SFP(Combo) ports |
Security | |
Security Feature |
MAC address binding supported
|
Special Features | |
Protection |
Port Lightning Protection: ≥6KV
|
Others | |
Other Features |
Forwarding mode: Store-and-forward
Packet forwarding rate: 35.7 Mpps PoE Power Supply: Ports 1 to 24 support 802.3af/at standard 1 2 4 5 +, 3 6 7 8 - Whole Switch Power Consumption: Whole switch power consumption: <410W; Maximum PoE output power: 370W PoE Power Supply Management: Port PoE configuration and power supply priority configuration supported PoE over-temperature protection supported Smart graphical management and PoE-powered device detection supported (port status, power assignment, and PoE-powered device status) VLAN: IEEE 802.1Q VLAN supported Port aggregation: Static aggregation supported Spanning tree: IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) supported Dynamic aggregation supported QoS: FIFO (First-In, First-Out) supported SP (Strict Priority) supported WP (Weighted Priority) supported Loading & Upgrade: HTTP upgrade supported Configuration import and export supported Cloud management: Supports configuration delivery from IMS cloud platform Supports log reporting and fault detection Supports remote maintenance: reboot, backup, upgrade Local visualization management: Supports router, switch, AP, IP camera discovery Supports automatic generation of topology Supports online/offline status detection for devices Supports remotely rebooting the IP camera |
Physical Specification | |
Temperature |
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C |
Humidity |
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing |
Dimension |
440 mm * 284 mm * 44 mm
|
Technical Info | |
LED Indicators |
1 Link/Ack LED indicator for each port
1 PoE Max LED indicator for each device 1 Power LED indicator for each device 1 SYS LED indicator for each device |
Warranty Information | |
Warranty |
1 Year
|
