The EnGenius EWS377AP is a high-performance, cloud-managed Wi-Fi 6 indoor access point designed for dense device environments, offering superior wireless coverage and robust data throughput. With a powerful Qualcomm® Quad-Core ARM Cortex A53s @ 2.0GHz CPU and advanced 4x4:4 MU-MIMO technology on both 2.4 GHz and 5 GHz bands, this access point delivers a total wireless data rate of up to 3.5 Gbps, making it ideal for large offices, campuses, or commercial environments with heavy traffic loads. Supporting the latest IEEE 802.11ax (Wi-Fi 6) standard, the EWS377AP ensures backward compatibility with previous Wi-Fi generations and includes OFDMA, MU-MIMO, and beamforming technologies for improved performance, efficiency, and client handling. Its integrated omni-directional antennas (4 x 3 dBi for each band) enable strong and consistent signal strength across wide coverage areas. Equipped with a single 2.5 Gigabit Ethernet port (PoE+), this device simplifies deployment and reduces cabling while offering flexible installation via included ceiling and wall mounting kits. It can be powered either through 802.3at PoE+ or an optional 12VDC adapter, with a maximum power consumption of 19.5W. The EWS377AP supports both standalone and managed operation modes and integrates seamlessly with EnGenius’ ezMaster and Neutron Switches for centralized cloud management. Features include fast roaming, band steering, guest networks, VLAN tagging, and traffic shaping per SSID/user, enhancing both user experience and network control. Comprehensive security options like WPA3 encryption, MAC filtering, SSH tunnels, and RADIUS authentication ensure enterprise-grade protection, while management tools such as client monitoring, auto provisioning, email alerts, and real-time usage stats provide full visibility into network performance. Designed to meet demanding network needs, the EWS377AP is FCC and CE certified and backed by a 1-year warranty. Its sleek, low-profile design (205 x 205 x 33.2 mm) makes it suitable for any indoor setting while maintaining high reliability in operating temperatures ranging from 0°C to 40°C.
Yes, it supports 802.3at Power-over-Ethernet (PoE+) for flexible installation without a power adapter.
Yes, it supports remote management via EnGenius ezMaster and Neutron Switches.
The device supports up to 8 SSIDs for both 2.4 GHz and 5 GHz bands.
Processor | |
Processor |

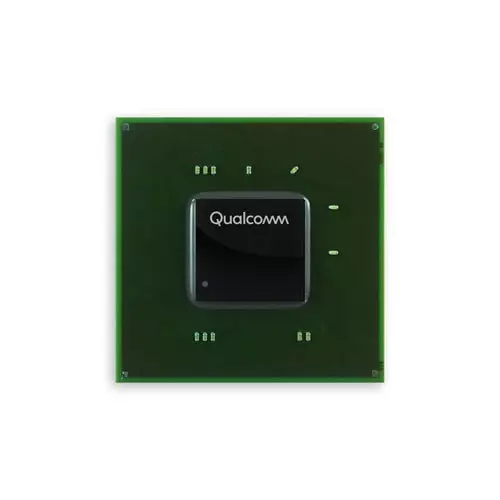

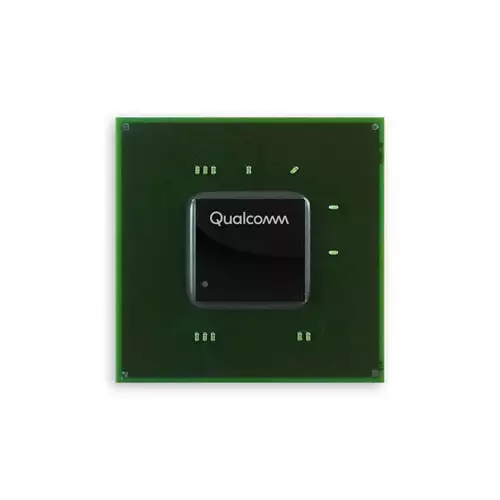

Qualcomm Quad-Core ARM Cortex A53s @ 2.0GHz CPU
|
Networking & Connectivity | |
Transmit Power |
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz |
Data Rate |
802.11ax:
2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4) 5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 600 Mbps (MCS0 to MCS15) 802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4) |
Network Standards |
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz |
Antenna |
4 x 2.4 GHz: 3 dBi
4 x 5 GHz: 3 dBi Integrated Omni-Directional Antenna |
Wireless Security |
WPA3
WPA2 Enterprise (AES) Hide SSID in Beacons MAC Address Filtering, Up to 32 MACs per SSID Wireless STA (Client) Connected List SSH Tunnel Client Isolation |
Frequency |
Dual-Radio Concurrent 2.4 GHz & 5 GHz
|
Battery And Power | |
Power Source |
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter |
Power Consumption |
19.5W
|
Ports | |
Interface |
1 x 10/100/1000/2500 BASE-T, RJ-45 Gigabit Ethernet Port
1x DC Jack 1 x Reset Button |
Special Features | |
Modes |
AP, Mesh
|
Others | |
Other Features |
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios. VLAN Tagging: Supports 802.1q SSID-to-VLAN Tagging Cross-Band VLAN Pass-Through Management VLAN Spanning Tree: Supports 802.1d Spanning Tree Protocol SNMP: v1, v2c, v3: MIB: I/II, Private MIB |
Physical Specification | |
Humidity |
Operating: 90% or less
Storage: 90% or less |
Temperature Range |
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -22 ºF~176 ºF (-30 ºC~80 ºC) |
Technical Info | |
LED Indicators |
1 x Power
1 x LAN 1 x 2.4 GHz 1 x 5 GHz 1 x BLE 1 x SCAN |
Warranty Information | |
Warranty |
01 Year
|
