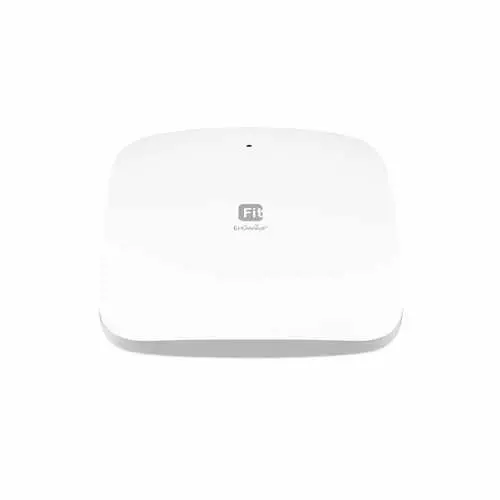

EnGenius EWS356-FIT 802.11ax 2x2 Managed Wi-Fi 6 Indoor Access Point is engineered to deliver powerful, efficient, and scalable wireless performance for today’s digitally connected environments. Designed for small to medium-sized businesses, educational institutions, and retail spaces, this advanced access point provides fast and reliable wireless connectivity with cutting-edge Wi-Fi 6 technology. Operating on dual concurrent radios—2.4GHz and 5GHz—it ensures seamless high-speed data transmission, supporting up to 574 Mbps on the 2.4GHz band and up to 2,400 Mbps on the 5GHz band. The 2x2:2 radio architecture enables smooth, simultaneous connections through Single User (SU) and Multi-User (MU) MIMO, enhancing performance even in high-density device environments. Its compact design incorporates high-gain internal antennas—4dBi for 2.4GHz and 5dBi for 5GHz—ensuring extended range and optimal coverage. The EWS356-FIT supports PoE (802.3af) and DC12V power options, offering flexibility in deployment without compromising on power efficiency, with a maximum consumption of only 10.7W. Centralized management through EnGenius’ FIT system allows for easy configuration, monitoring, and optimization, making this access point an ideal solution for IT administrators seeking streamlined control. Advanced wireless technologies such as Orthogonal Frequency Division Multiple Access (OFDMA), 1024-QAM modulation, and support for HE160 bandwidth significantly boost capacity and throughput, minimizing latency and interference. With support for multiple operation modes including AP, Mesh, and AP Mesh, the device adapts to a variety of networking needs, offering versatility in infrastructure design. Built for reliability, it functions effectively within a temperature range of 32ºF to 104ºF and stores safely in extreme conditions from -40ºF to 176ºF, with up to 90% humidity tolerance. Included in the package are ceiling mount options for different rail sizes, a screw kit, and a quick installation guide, ensuring quick and hassle-free setup. The EnGenius EWS356-FIT is a future-ready access point that combines performance, flexibility, and ease of use, making it a dependable cornerstone for any high-performance wireless network.
Yes, it supports 802.3af PoE and DC12V power input.
Yes, with Wi-Fi 6 and MU-MIMO, it's ideal for high-density environments.
It’s managed through EnGenius’ FIT management system for easy setup and control.
Networking & Connectivity | |
Standards |
802.11a/b/g/n/ac/ax
|
Transmit Power |
Up to 21 dBm on 2.4 GHz
Up to 21 dBm on 5 GHz (Maximum power is limited by regulatory domain) |
Data Rate |
802.11ax:-
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2) 5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
Antenna |
2.4GHz: 4dBi
5GHz: 5dBi |
Frequency |
Dual-Radio Concurrent 2.4 GHz & 5 GHz
|
Battery And Power | |
Power Source |
PoE 802.3af
DC12V |
Power Consumption |
10.7W
|
Ports | |
Interface |
1 x 10/100/1000 BASE-T
Reset/Reboot button |
Others | |
Other Features |
Radio Chains: 2 × 2:2
Max Concurrent User: 128 per radio |
Physical Specification | |
Package Contents |
1 – EWS356-FIT Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail) 1 – Ceiling Mount Base (15/16” Trail) 1 – Ceiling and Wall Mount Screw Kit 1 – Quick Installation Guide |
Storage humidity |
Storage: 90% or less
|
Operating Temperature |
32ºF~104ºF (0 ºC~40 ºC)
|
Dimension |
160 x 160 x 30 mm
|
Storage Temperature |
-40 ºF~176 ºF (-40 ºC~80 ºC)
|
Weight |
380 g
|
Technical Info | |
Indicators |
1 x Multi-color LED
|
Warranty Information | |
Warranty |
01 year
|
