ASUS TUF GAMING B650M-E WIFI AMD AM5 DDR5 MICRO-ATX MOTHERBOARD

Stock : In Stock PID : P0122506524 Brand : Asus Model : TUF GAMING B650M-E WIFI Warranty : 3 Years
0 Reviews
  • AMD B650 Chipset
  • 4 x DIMM slots, Max. 192GB
  • 1 x PCIe 4.0 x16 slot
  • 1 x Realtek 2.5Gb Ethernet
  • Discount Price

    à§³ 29,000 33,000

    Available Payment Method

    EMI Start From*

    à§³ 1,021

    View Banks EMI Plans

    ASUS TUF GAMING B650M-E WIFI AMD AM5 DDR5 MICRO-ATX MOTHERBOARD

    The ASUS TUF Gaming B650M-E WiFi AMD AM5 DDR5 Micro-ATX Motherboard is a feature-packed motherboard designed for gaming and high-performance computing. It supports AMD Ryzen 7000 Series Desktop Processors with an AMD Socket AM5, offering excellent performance. The motherboard features AMD B650 chipset, 4 DIMM slots supporting a maximum of 192GB DDR5 memory with overclocking capabilities. It provides robust graphics options with 2 DisplayPort and 1 HDMI port. For expandability, it includes 1 PCIe 4.0 x16 slot for Ryzen 7000 CPUs and 2 PCIe 4.0 x1 slots. Storage options consist of 2 M.2 slots and 4 SATA 6Gb/s ports, offering flexibility and speed. Networking is top-notch with Realtek 2.5Gb Ethernet and Wi-Fi 6 support, while ASUS TUF Protection ensures the safety and durability of your components. The motherboard also includes a range of USB ports, comprehensive audio support, and ASUS's exclusive features like Armoury Crate and Aura Sync for customization. With a 3-year warranty, it's a solid choice for compact gaming PC builds. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Asus Motherboard available at Techland BD is well recognized. The large selection of Motherboard available at Techland BD is well recognized.

    Processor
    Supported CPU
    AMD Socket AM5 for AMD Ryzenâ„¢ 7000 Series Desktop Processors
    Mainboard
    Chipset
    AMD B650
    BIOS
    256 Mb Flash ROM, UEFI AMI BIOS
    Memory
    Memory
    4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/
    5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*

    Dual Channel Memory Architecture

    Supports AMD Extended Profiles for Overclocking (EXPOâ„¢)

    OptiMem II
    Storage
    Supported Storage
    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

    AMD Ryzenâ„¢ 7000 Series Desktop Processors

    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    AMD B650 Chipset

    4 x SATA 6Gb/s ports

    *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
    Graphics
    Multi-GPU
    Yes
    Graphics
    2 x DisplayPort**

    1 x HDMITM port***

    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

    ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

    *** Supports 4K@60Hz as specified in HDMI 2.1.
    Networking & Connectivity
    LAN
    1 x Realtek 2.5Gb Ethernet

    TUF LANGuard
    WiFi
    Wi-Fi 6

    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

    Supports 2.4/5GHz frequency band
    Bluetooth
    Bluetooth® v5.2
    Audio & Microphone
    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC*

    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    - Supports up to 24-Bit/192 kHz playback"

    Audio Features

    - Audio Shielding

    - Premium audio capacitors

    - Dedicated audio PCB layers

    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    Ports
    Slots
    AMD Ryzenâ„¢ 7000 Series Desktop Processors

    1 x PCIe 4.0 x16 slot

    AMD B650 Chipset

    2 x PCIe 4.0 x1 slots
    Internal I/O Ports
    Fan and Cooling related

    1 x 4-pin CPU Fan header

    1 x 4-pin CPU OPT Fan header

    1 x 4-pin AIO Pump header

    2 x 4-pin Chassis Fan headers

    Power related

    1 x 24-pin Main Power connector

    1 x 8-pin +12V Power connector

    1 x 4-pin +12V Power connector

    Storage related

    2 x M.2 slots (Key M)

    4 x SATA 6Gb/s ports

    USB

    1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )

    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

    2 x USB 2.0 headers support 4 additional USB 2.0 ports

    Miscellaneous

    3 x Addressable Gen 2 headers

    1 x Aura RGB header

    1 x Clear CMOS header

    1 x COM Port header

    1 x Front Panel Audio header (AAFP)

    1 x 20-3 pin System Panel header with Chassis intrude function

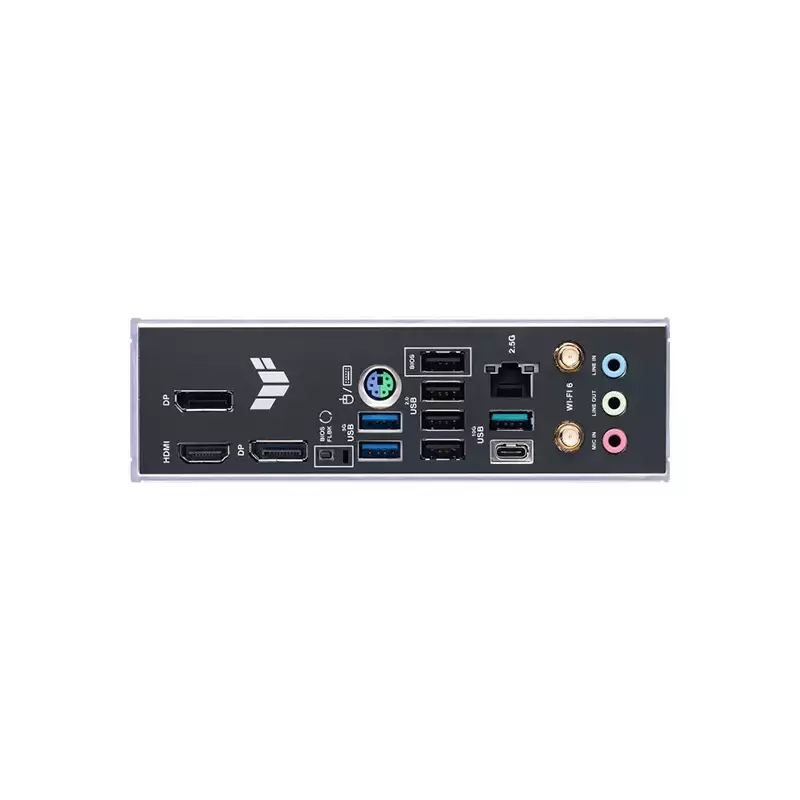

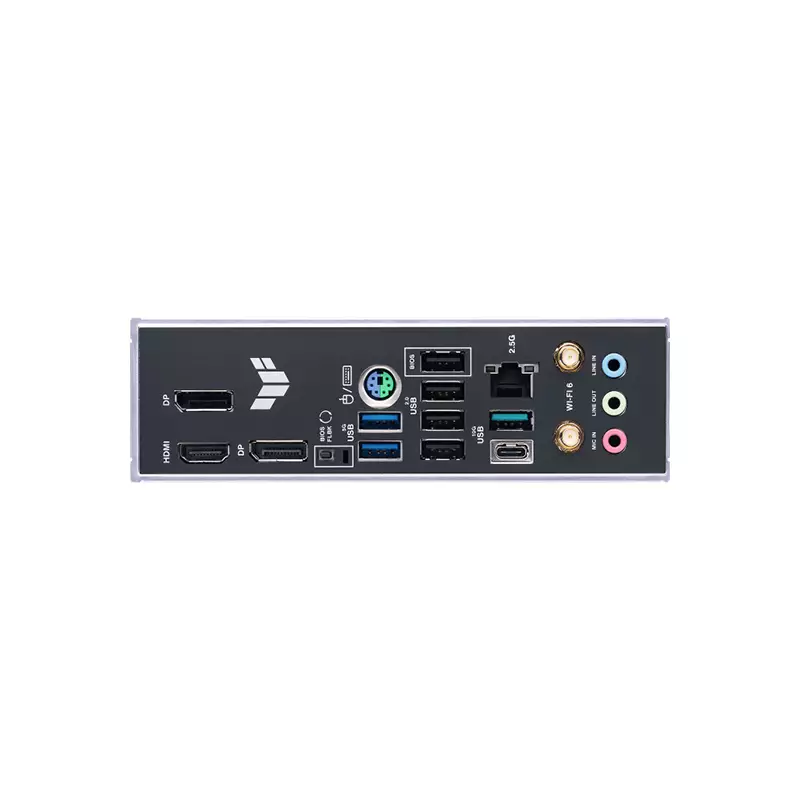

    External I/O Ports
    2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)

    2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

    4 x USB 2.0 ports (4 x Type-A)

    2 x DisplayPort

    1 x HDMITM port

    1 x Wi-Fi Module

    1 x Realtek 2.5Gb Ethernet port

    3 x Audio jacks

    1 x BIOS FlashBackâ„¢ button

    1 x PS/2 Keyboard/Mouse combo port
    USB
    Rear USB (Total 8 ports)

    2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)

    2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

    4 x USB 2.0 ports (4 x Type-A)

    Front USB (Total 7 ports)

    1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)

    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    HDMI
    1 x HDMITM port
    Software
    Software Features
    ASUS Exclusive Software

    Armoury Crate

    - Aura Creator

    - Aura Sync

    - Fan Xpert 2+

    - Power Saving

    - Two-Way AI Noise Cancelation

    AI Suite 3

    - TurboV EVO

    - DIGI+ VRM

    - PC Cleaner

    TUF GAMING CPU-Z

    DTS Audio Processing

    MyASUS

    Norton 360 for Gamers(60 Days Free Trial)

    WinRAR

    UEFI BIOS

    ASUS EZ DIY

    - ASUS CrashFree BIOS 3

    - ASUS EZ Flash 3

    - ASUS UEFI BIOS EZ Mode
    Special Features
    Special Features
    ASUS TUF PROTECTION

    - DIGI+ VRM (- Digital power design with DrMOS)

    - ESD Guards

    - TUF LANGuard

    - Overvoltage Protection

    - SafeSlot Core+

    - Stainless-Steel Back I/O

    ASUS Q-Design

    - M.2 Q-Latch

    - Q-DIMM

    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

    - Q-Slot

    ASUS Thermal Solution

    - M.2 heatsink

    - VRM heatsink design

    ASUS EZ DIY

    - BIOS FlashBackâ„¢ button

    - BIOS FlashBackâ„¢ LED

    - ProCool

    - Pre-mounted I/O shield

    - SafeSlot Core+

    - SafeDIMM

    Aura Sync

    - Aura RGB header

    - Addressable Gen 2 headers
    Others
    Other Features
    Manageability: WOL by PME, PXE

    Accessories

    Cables

    2 x SATA 6Gb/s cables

    Miscellaneous

    1 x ASUS Wi-Fi moving antennas

    1 x TUF Gaming sticker

    1 x M.2 Rubber Package

    1 x Screw package for M.2 SSD

    Documentation

    1 x TUF Certification card

    1 x User guide

    Operating System: Windows® 11, Windows® 10 64-bit
    Physical Specification
    Form Factor
    Micro-ATX
    Dimension
    9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
    Warranty Information
    Warranty
    03 Years Warranty

    Write A Review

    What is the ASUS TUF GAMING B650M-E WIFI AMD AM5 DDR5 MICRO-ATX MOTHERBOARD Price in Bangladesh 2025 ?

    The Asus TUF GAMING B650M-E WIFI Price in BD is 29,000à§³ . This ASUS TUF GAMING B650M-E WIFI AMD AM5 DDR5 MICRO-ATX MOTHERBOARD Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus TUF GAMING B650M-E WIFI by 29,000à§³ and its regular price is 33,000à§³ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
