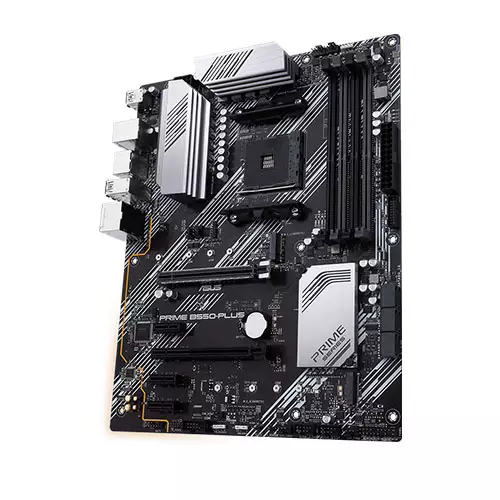

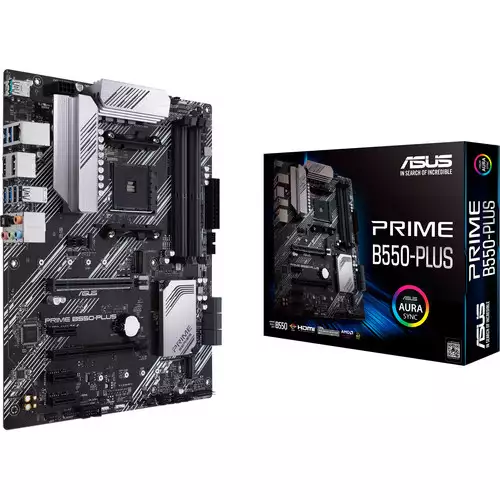

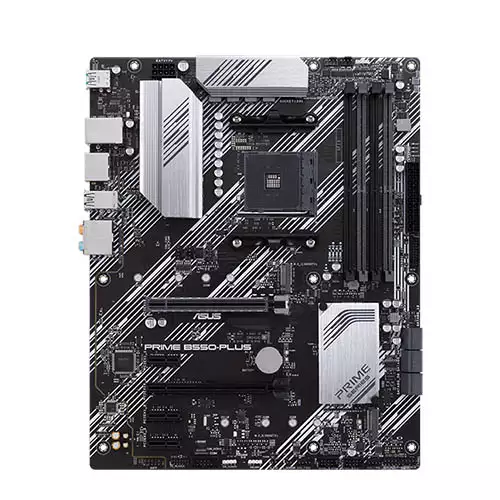

ASUS Prime B550 Plus AM4 ATX Motherboard

Stock : In Stock PID : P0122506189 SKU : PLUSAM4ATX Brand : Asus Model : B550-Plus
0 Reviews
  • ATX Form Factor
  • AMD B550 Chipset
  • AMD AM4 Chipset
  • 4 x Dual-Channel

Discount Price

৳ 19,000 21,000

Available Payment Method

EMI Start From*

৳ 669

View Banks EMI Plans

Buy Now
Description Specification Reviews
ASUS Prime B550 Plus AM4 ATX Motherboard Overview
Complement that AMD build with the Prime B550 Plus AM4 ATX Motherboard from ASUS. Designed for the AM4 socket and using the B550 chipset, this motherboard can support up to 128GB of DDR4 RAM with frequencies up to 3200 MHz or, if overclocking, up to 4800 MHz. Users can also connect up to six SATA III drives and up to two M.2 drives ranging from 2242 to 22110. One of these slots benefits 3rd Gen AMD processors with PCIe 4.0 x4 performance, while the other slot features PCIe 3.0 x4 speeds. The Prime B550 Plus also supports RAID 0, 1, 10, and 5 for more resilient data storage, and CrossFireX allows for multiple-GPU setups. In addition to one M.2 PCIe 4.0 x16 slot and one M.2 PCIe 3.0 x16 slot, users have access to three PCIe 3.0 x1 slots.

All-Around Energy Efficiency
With the Energy Processing Unit, or EPU, you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with an away mode.

Flexible Cooling Controls
Fan Xpert 4 software provides comprehensive control over fans, water pumps, and all-in-one or AiO coolers. Whether cooling with air or water, an Auto-Tuning mode allows you to configure all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds below the default minimum to keep your system quiet when performing light tasks. Fans, water pumps, and AiO coolers can also be controlled via the UEFI BIOS.

Digital Power Control
The Digi+ voltage regulator module or VRM delivers real-time control over voltage drop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for stability and performance.

VRM Heatsink and Thermal Pads
Two VRM heatsinks with thermal pads underneath to improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design
The Prime B550 series features cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Furthermore, each header can dynamically reference three thermal sensors. And, with Fan Xpert 2+, you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. The Prime B550-Plus also features a dedicated PWM/DC header for self-contained water-cooling setups and onboard chassis fan headers supporting PWM and DC control.

Connectivity
Numerous USB ports support high-end rigs loaded with peripherals, including a USB Type-C and Type-A connector with USB 3.2 Gen 2 connectivity for compatible cases. The Prime B550-Plus also supports ThunderboltEX 3-TR, an Intel certified Thunderbolt 3 add-on card that enables bidirectional speeds of up to 40 Gb/s via a single cable. Additionally, an integrated Thunderbolt 3 header can support up to six devices in a daisy-chain and provide up to 100W of power to fast-charge devices.

Onboard M.2
PCIe 4.0 M.2 slots support drives up to 22110 and provide NVMe SSD RAID support for a performance boost. Create a RAID configuration with up to 64 Gb/s PCIe 4.0 storage devices to take advantage of the 3rd Generation AMD Ryzen platform. One M.2 slot supports PCIe 4.0 and one supports PCIe 3.0.

Optimized for Audio
Audio shielding separates analog and digital signal domains, reducing the chance of multilateral interference. There's also separate layers for left and right tracks, ensuring lower crosstalk between audio paths.

Aura Sync
ASUS Aura offers full RGB lighting control with functional presets for RGB LED strips connected to the onboard RGB headers. And, it can all be synced with Aura-capable hardware.

Addressable Gen 2 RGB Header
The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen ARGB devices, allowing the software to tailor lighting effects to specific devices. This header also offers backward-compatibility with existing Aura RGB gear.

Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported products. From a single interface, Armoury Crate allows you to customize RGB lighting and effects for compatible devices in your build. The software also provides control of settings for ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.

[product_table id="34" limit="10" type="filter" filter_category="7271"]
Processor
Supported CPU
Build-in AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors
Mainboard
Chipset
AMD B550
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Memory
Memory
AMD Ryzenâ„¢ 5000 Series/ 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *
AMD RyzenTM 4000 G-Series Processor
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Storage
Supported Storage
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
3rd Gen AMD Ryzen Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
3rd Gen AMD Ryzen with Radeon Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD B550 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Graphics
Graphics
1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)
Networking & Connectivity
LAN
Realtek RTL8111H
ASUS LANGuard
Audio & Microphone
Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Unique de-pop circuit
Ports
Slots
4 x DDR4 memory slots
Internal I/O Ports
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
USB

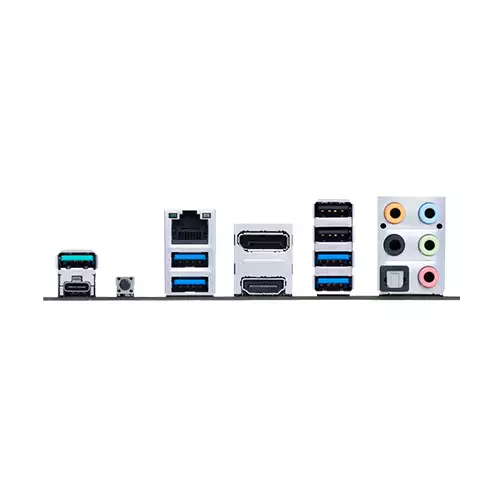

Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
HDMI
1 x HDMI 2.1(4K@60HZ)
Physical Specification
Form Factor
ATX Form Factor
Dimension
30.5 x 24.4 cm
Warranty Information
Warranty
03 Years

Write A Review

What is the ASUS Prime B550 Plus AM4 ATX Motherboard Price in Bangladesh 2025 ?

The Asus B550-Plus Price in BD is 19,000৳ . This ASUS Prime B550 Plus AM4 ATX Motherboard Manufacturing by Asus Comes With Warranty & Based on 0 reviews. Tech Land BD Offers you Asus B550-Plus by 19,000৳ and its regular price is 21,000৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
