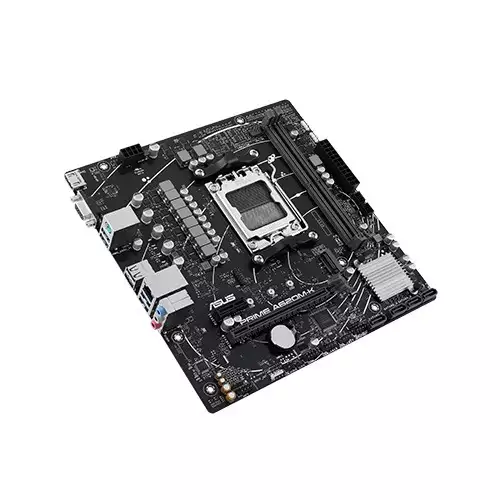

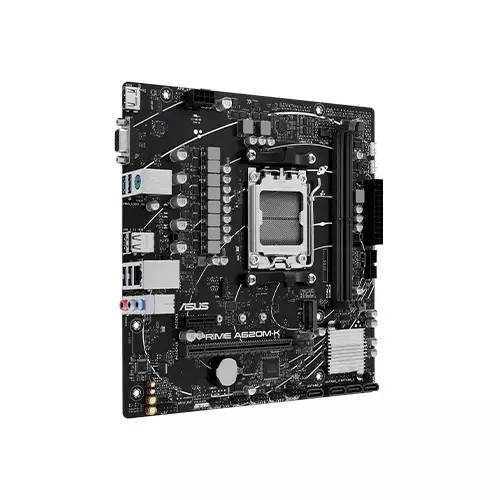

Asus PRIME A620M-K-CSM DDR5 AM5 MATX Motherboard is an advanced, cost-effective option designed for users who want high performance in a compact form. Tailored for AMD Ryzen 7000, 8000, and 9000 series processors, it offers compatibility with the latest technologies, including DDR5 memory support, ensuring seamless performance for everyday tasks and gaming alike.
This motherboard features AMD’s Socket AM5, supporting Ryzen 7000, 8000, and 9000 series processors with a maximum 120W power capability. It has dual DIMM slots allowing up to 96GB of DDR5 memory with overclocking options up to 7200MHz, providing fast and efficient data processing for resource-intensive applications. The expansion capabilities include a PCIe 4.0 x16 slot for high-end graphics cards and a PCIe 3.0 x1 slot for additional components. Storage options are versatile, with an M.2 slot compatible with PCIe 4.0 and four SATA 6Gb/s ports. Networking is facilitated by a Realtek 1Gb Ethernet port, and there are multiple USB options, including four USB 3.2 Gen 1 ports for fast data transfer. With audio powered by Realtek’s 7.1 Surround Sound CODEC, the motherboard also delivers high-definition sound. Additionally, the Asus 5X Protection III technology safeguards against overvoltage and ensures long-lasting performance.
Asus PRIME A620M-K-CSM DDR5 AM5 MATX Motherboard is readily available at Tech Land BD. This motherboard is perfect for users looking for a reliable, cost-effective foundation for their systems, offering ample power and features in a compact mATX form. Supporting the latest DDR5 memory and equipped with durable components, it is ideal for both new builds and upgrades. The Asus PRIME A620M-K-CSM price in BD at Tech Land BD provides excellent value, especially for users seeking high performance on a budget, making it suitable for everything from daily productivity to mid-range gaming.
Take your system to the next level with Asus PRIME A620M-K-CSM DDR5 AM5 MATX Motherboard, now available at Tech Land BD! This motherboard offers unbeatable value for users who want the latest technologies, reliable performance, and durability. With its compatibility for DDR5 memory and AMD’s latest Ryzen processors, Asus PRIME A620M-K-CSM price in Bangladesh makes it an ideal choice for any PC builder looking for a balance between performance and affordability. Don't miss out—upgrade your setup with the Asus PRIME A620M-K-CSM from Tech Land BD today!
Processor | |
Supported CPU |
AMD Socket AM5 for AMD Ryzen 9000 &
8000 & 7000 Series Desktop Processors |
Mainboard | |
Chipset |
AMD A620
|
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS
|
Memory | |
Memory |
2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/
7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/ 5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) |
Storage | |
Storage |
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
Graphics | |
Graphics |
1 x VGA port
1 x HDMI port * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. |
Networking & Connectivity | |
Ethernet |
1 x Realtek 1Gb Ethernet
|
Audio & Microphone | |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
Ports | |
I/O Port |

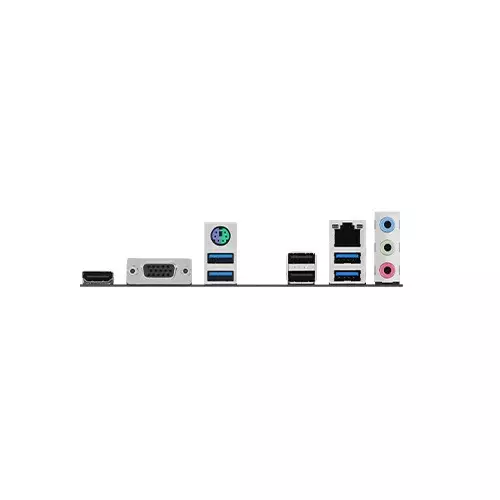

Back Panel I/O Ports
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
USB |
Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
Software | |
Software Features |
ASUS Exclusive Software
Armoury Crate - Aura Creator - Aura Sync - Fan Xpert - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
Special Features | |
Special Features |
ASUS 5X PROTECTION III
- DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers |
Others | |
Accessories |
Cables
2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw package for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
Physical Specification | |
Expansion Slots |
AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD A620 Chipset 1 x PCIe 3.0 x1 slot |
Form Factor |
micro-ATX Form Factor
8.9 inch x 8.7 inch (22.6 cm x 22.1 cm) |
Technical Info | |
Model |
PRIME A620M-K-CSM
|
Operating System Support |
Windows 11, Windows 10 64-bit
|
Warranty Information | |
Warranty |
3 Years
|
