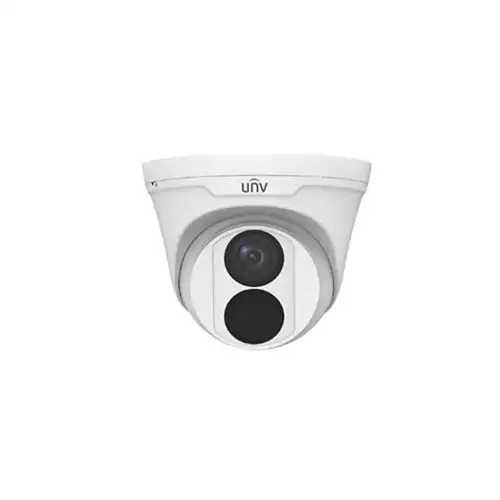

Uniview IPC3614LB-SF28-A 4MP Fixed Dome IP Camera, the ultimate surveillance solution tailored to meet your security needs in Bangladesh. Equipped with advanced features, this dome camera offers unparalleled performance and reliability. With an illuminator providing an impressive IR range of up to 30 meters (98 feet) and a wavelength of 850nm, it ensures clear visibility even in low-light conditions. The camera's minimum illumination of 0.01Lux (F2.0, AGC ON) in color mode and 0Lux with IR ensures excellent image quality day and night. Powered by a 1/3" 4.0-megapixel progressive scan CMOS sensor, it captures crisp and detailed footage with a shutter time ranging from auto to manual, up to 1/100000s. The Uniview IPC3614LB-SF28-A features a lens mount of M12 and offers a wide-angle view with angles of view (H/V/O) at 97.0°/52.2°/107.5° respectively. The camera supports various video compression formats including Ultra 265, H.265, H.264, and MJPEG, ensuring efficient storage and transmission of footage. With a compact design measuring Φ118 x 97mm (Φ4.6” x 3.8”) and weighing only 0.30kg (0.66lb), it is easy to install and suitable for various surveillance applications. Powered by DC 12V±25% or PoE (IEEE 802.3af), with a maximum power consumption of 4.0W, the camera offers flexible power options to suit your needs. The Uniview IPC3614LB-SF28-A operates effectively in temperatures ranging from -30°C to 60°C (-22°F to 140°F) and humidity levels of up to 95% RH, making it suitable for indoor and outdoor use. Elevate your surveillance system with the Uniview IPC3614LB-SF28-A 4MP Fixed Dome IP Camera, now available at TechLand BD.
Air Conditioner | |
Noise Level |
2D/3D DNR
|
Display | |
Viewing Angle |
Angle of View (H): 97.0°
Angle of View (V): 52.2° Angle of View (O): 107.5° |
Mouse & touch | |
Frame Rate |
4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080),
Max 30fps; 720P (1280*720), Max 30fps |
Camera | |
Camera Feature |
IR-cut filter with auto switch (ICR)
|
Pixels |
0.01Lux (F2.0, AGC ON)
|
LENS |
M12
|
Lens type |
2.8mm and 4.0mm @2.0, Fixed-focal
|
Shutter Speed |
Auto/Manual, 1 ~ 1/100000s
|
Audio & Microphone | |
Bit Rate |
128 Kbps~6144 kbps
|
Battery And Power | |
Power |
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.0W Power Interface: Ø 5.5mm coaxial power plug |
Video Features | |
Video standard |
Ultra 265, H.265, H.264, MJPEG
|
Special Features | |
Motion Enhancer |
Up to 4 areas
|
Sensor |
1/3″, 4.0 megapixel, progressive scan, CMOS
|
Others | |
Other Features |
Wavelength: 850nm
IR On/Off Control: Auto/Manual White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 WDR: DWDR H.264 code profile: Baseline profile, Main profile, High profile Sub Stream:4CIF (704*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
Physical Specification | |
Temperature |
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Dimension |
Φ118 x 97mm
|
Weight |
0.30kg
|
Technical Info | |
IP Rating |
Up to 30m (98ft) IR range
|
Warranty Information | |
Warranty |
1 Year
|
