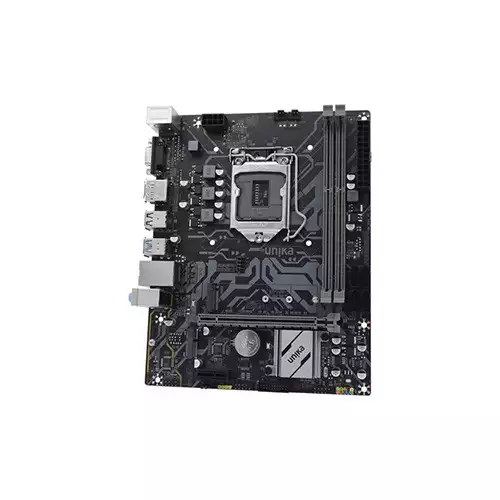

The UNIKA UN-H81M PRO M.2 V1.0 DDR3 Micro ATX Motherboard supports Intel's 4th generation Core i7, i5, i3, Pentium, and Celeron processors with an LGA1150 socket. Built on the Intel H81 chipset, it features two DDR3 memory slots supporting speeds of 1600, 1333, and 1066 MHz, with a maximum capacity of 16 GB. The motherboard includes one PCI-E x16 slot for graphics cards and one PCI-E x1 slot. For storage, it provides four SATA3.0 ports and one M.2 slot that supports 2242/2260/2280 type storage devices. Connectivity options are robust, with rear USB 3.0 and 2.0 ports, as well as headers for additional USB ports. Display outputs include DisplayPort, HDMI, and VGA. It also has an onboard Realtek 8111H Gigabit network card and Realtek ALC897 high-fidelity audio chip. Additional features include PS/2 ports, RJ45 network port, and various audio ports.
The UNIKA UN-H81M PRO M.2 V1.0 DDR3 Micro ATX Motherboard is available at Tech Land BD, providing a reliable and efficient solution for building or upgrading PCs. This motherboard's compatibility with Intel's 4th generation processors and comprehensive connectivity options make it suitable for both personal and professional use. For those searching for the best "UNIKA UN-H81M PRO M.2 V1.0 DDR3 4th Gen Micro ATX Motherboard Price in BD," Tech Land BD offers competitive pricing and excellent customer service.
Enhance your PC's performance with the UNIKA UN-H81M PRO M.2 V1.0 DDR3 Micro ATX Motherboard, available now at Tech Land BD. This motherboard offers excellent compatibility, robust performance, and a range of connectivity options, making it a perfect choice for any PC build. Don't miss out on the best "UNIKA UN-H81M PRO M.2 V1.0 DDR3 4th Gen Micro ATX Motherboard Price in Bangladesh." Purchase today from Tech Land BD and elevate your computing experience!
Processor | |
Supported CPU |
Intel Core i7/i5/i3/Pentium/Celeron LGA1150 (support Intel 22nm processor)
|
Mainboard | |
Chipset |
Intel H81
|
Memory | |
Memory Size |
16 GB
|
Memory Slot |
2 x DDR3 memory slots
|
Memory |
DDR3 1600/1333/1066 memory* (actual memory data transfer speed depends on processor type and memory module)
|
Networking & Connectivity | |
LAN |
Onboard Realtek 8111H Gigabit network card; 1 x M.2 wifi interface
|
Audio & Microphone | |
Audio |
Onboard Realtek ALC897 high-fidelity audio independent sound card
|
Ports | |
Output Interface |
1 x DisplayPort display output; 1 x HDMI display output; 1 x VGA display output
|
PCI Card Slot |
1 x PCI-E x 16 graphics card slot; 1 x PCI-E x 1 slot
|
Interface |
4 x SATA3.0 6Gb/s
M.2 Interface: 1 x M.2 slot, supports 2242/2260/2280 type storage devices |
Power Connector |
24pin+8pin
|
USB |
2 x USB 3.0 ports at the rear; 4 x USB 2.0 ports; 1 x USB 3.0 header at the front, 2 USB 3.0 ports can be expanded; 1 x USB 2.0 header, 2 USB 2.0 ports can be expanded
|
Others | |
Other Features |

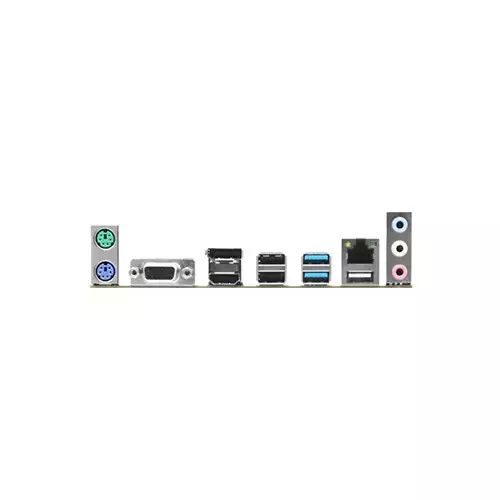

1 x PS/2 keyboard port; 1 x PS/2 mouse port; 1 x RJ45 network port; 3 x 3.5mm audio ports
|
Physical Specification | |
Form Factor |
M-ATX
|
Dimension |
170mm x 220mm
|
Technical Info | |
Brand |
UNIKA Shuangmin
|
Platform |
Intel Platform
|
Warranty Information | |
Warranty |
3 Years
|
