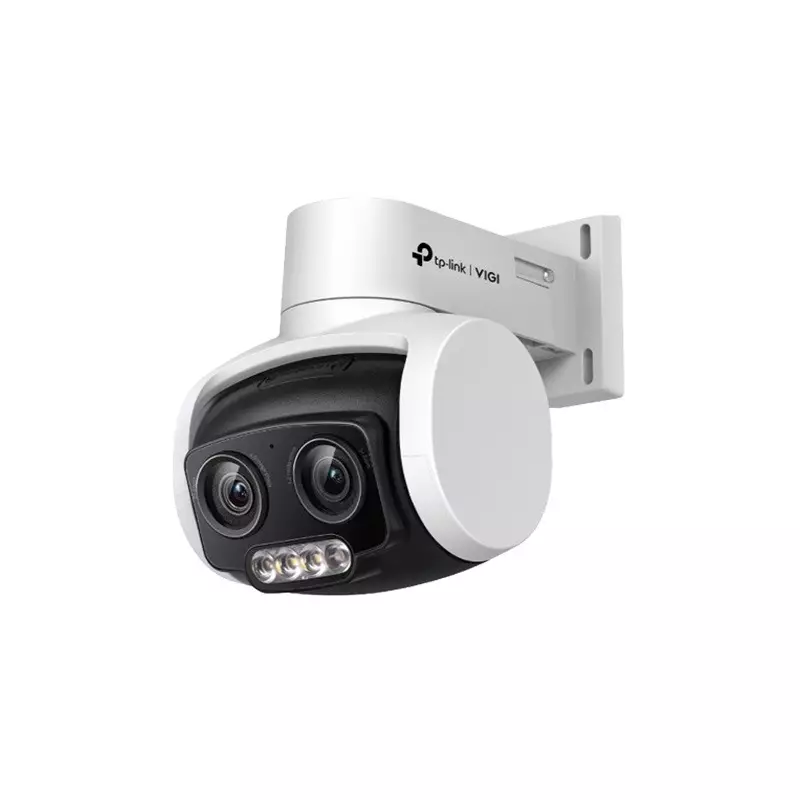

Tech Land BD is your trusted source for the original Tp-link VIGI C540V 4MP Full-Color Dual-Lens PT Network Camera. We boast an extensive collection of the latest Tp-link Network Camera for you to choose from. Place your order online or drop by your nearest Tech Land BD store to grab yours at an unbeatable price. Rest assured, your Tp-link VIGI C540V 4MP Full-Color Dual-Lens PT Network Camera comes with a 1-year warranty.
Storage | |
Storage |
256GB
|
Display | |
Image Sensor |
1/3” Progressive Scan CMOS
|
Viewing Angle |
FOV
Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46° |
Camera | |
Focus Range |
Pan: 0° to 332°, Tilt: 0° to 120°
|
Shutter Speed |
1/3 to 1/10000 s
|
Lens Mount |
M12*P 0.5
|
Focal Length |
4-12 mm (Mixed Zoom)
|
Maximum Aperture |
F1.6
|
Networking & Connectivity | |
Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP,
DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
|
Audio & Microphone | |
Built-in Mic |
Yes; Records Anything Going on within a 15-ft Radius of the Camera
|
SNR |
≥ 52 dB
|
Built-in Speaker |
Yes
|
Bit Rate |
Control - CBR, VBR
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
Audio |
Audio Communication - Two-Way Audio
Audio Input - Yes Audio Output - Yes Audio Compression - Yes Audio Sampling Rate - 8KHz Environment Noise Filtering - Yes Audio Bit Rate - 64 Kbps(G.711 alaw) |
Battery And Power | |
Power Supply |
12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug
PoE: 802.3at, class 4, Max. 16 W |
Power |
DC Power Port
|
Video Features | |
Video Resolution |
2560 X 1440
|
Video Features |
Main Stream
Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080,1280×720 Sub-Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 640×480, 352×288, 320×240 |
Special Features | |
Certifications |
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
|
Protection |
IP66
|
Zoom |
3x Mixed Zoom
|
Features |
PTZ
Pan/tilt Range - Pan: 0° to 332°, Tilt: 0° to 120° Pan/tilt Speed - Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/sTilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s Manual Control Speed - Configurable from 8° to 35°/s Presets - 300 Patrol Scan - 8 patrols, up to 8 presets for each patrol Power-off Memory - Yes; Auto restore to previous PTZ and lens status after power failure Park Action - Yes; Preset; Patrol Scan 3D Positioning - Yes |
Others | |
COMPRESSION STANDARD |
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264 |
Button |
Reset
|
Other Features |
Day/Night Switch Unified/ Scheduled/ Auto
Minimum Illumination - 0.005 Lux; 0 Lux with IR/white light Day/Night Mechanism - IR Cut Filter Slow Shutter Yes IR LED Quantity: 1 Range: 30m Wavelength: 850nm White LED Quantity: 3 Range: 30m Illuminator On/Off Control Auto/Scheduled/Always on/Always off H.264 Type - Main Profile/High Profile H.264+ - Main Stream Supported H.265 Type - Main Profile H.265+ - Main Stream Supported Wide Dynamic Range DWDR Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes |
Physical Specification | |
Color |
Black / White
|
Package Contents |
VIGI Network Camera
Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Operating Humidity |
95% or Less (Non-Condensing)
|
Storage humidity |
95% or Less (Non-Condensing)
|
Materials |
Plastic
|
Operating Temperature |
-30–60 °C
|
Dimension |
(L x W x H) - 107× 136× 139 mm
|
Storage Temperature |
-40–60 °C
|
Weight |
Net Weight - 0.43 Kg
Gross Weight - 0.66 Kg |
Warranty Information | |
Warranty |
1 Year
|
