Asrock H81M-VG4 R3.0 Super Alloy Micro ATX Motherboard

Stock : In Stock PID : P1172506013 SKU : ASROCKJNS Brand : ASRock Model : H81M-VG4 R3.0 Warranty : 3 years
0 Reviews
  • Supports 4th Generation Intel Processor
  • Chipsets: Intel® H81
  • Supports Dual Channel DDR3/DDR3L
  • Max capacity 16GB
  • Discount Price

    à§³ 7,500 8,000

    Available Payment Method

    EMI Start From*

    à§³ 264

    View Banks EMI Plans

    Asrock H81M-VG4 R3.0 Motherboard in Bangladesh

    Supports New 4th Generation Intel® CoreTM Processors ASRock H81M-VG4 R3.0 Super Alloy (Socket 1150). Dual Channel DDR3 1600 is supported. One PCIe 2.0 x16 slot and one PCIe 2.0 x1 slot D-Sub.7.1 CH HD Audio Graphic Output (Realtek ALC887 Audio Codec). There are two SATA3 ports and two SATA2 ports. 2 USB 3.1 Gen1 Adapters (Rear). Full Spike Protection, ASRock Live Update, and APP Shop are all supported.

    [product_table id="34" limit="10" type="filter" filter_category="6079"]

    Processor
    Supported CPU
    - Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
    - Supports Intel® Turbo Boost 2.0 Technology
    Mainboard
    Chipset
    Intel H81
    BIOS
    - 32Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 1.1 Compliant wake up events
    - SMBIOS 2.3.1 support
    - CPU, DRAM Voltage multi-adjustment
    Memory
    Memory
    Dual-Channel DDR3/DDR3L Memory Technology
    - 2 x DDR3/DDR3L DIMM Slots
    - Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
    - Max. the capacity of system memory: 16GB*
    - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
    Storage
    Supported Storage
    2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
    - 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
    Graphics
    Graphics
    Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
    - Pixel Shader 5.0, DirectX 11.1
    - Max. shared memory 1024MB*
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60H
    Networking & Connectivity
    LAN
    PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111C
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection (ASRock Full Spike Protection)
    - Supports LAN Cable Detection
    - Supports PXE
    Audio & Microphone
    Audio
    7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
    - Supports Surge Protection (ASRock Full Spike Protection)
    Ports
    Slots
    1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode)
    - 1 x PCI Express 2.0 x1 Slot
    Internal I/O Ports
    1 x Chassis Intrusion Header
    - 1 x TPM Header
    - 1 x CPU Fan Connector (4-pin)
    - 1 x Chassis Fan Connector (4-pin)
    - 1 x 24 pin ATX Power Connector
    - 1 x 4 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

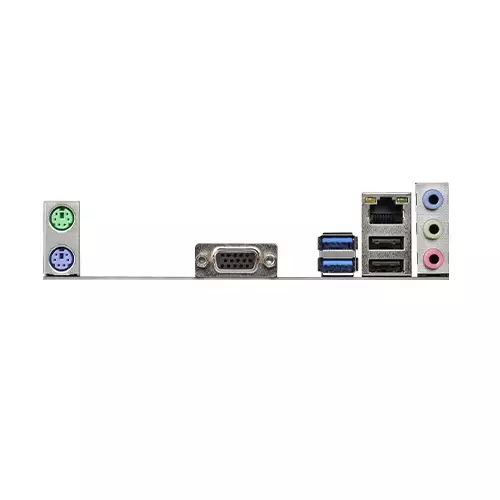

    External I/O Ports
    - 1 x PS/2 Mouse Port
    - 1 x PS/2 Keyboard Port
    - 1 x D-Sub Port
    - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jack: Line in / Front Speaker / Microphone
    Physical Specification
    Form Factor
    Micro ATX Form Factor
    - Solid Capacitor for CPU power
    Warranty Information
    Warranty
    3 years

    Write A Review

    What is the Asrock H81M-VG4 R3.0 Super Alloy Micro ATX Motherboard Price in Bangladesh 2025 ?

    The ASRock H81M-VG4 R3.0 Price in BD is 7,500à§³ . This Asrock H81M-VG4 R3.0 Super Alloy Micro ATX Motherboard Manufacturing by ASRock Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock H81M-VG4 R3.0 by 7,500à§³ and its regular price is 8,000à§³ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
