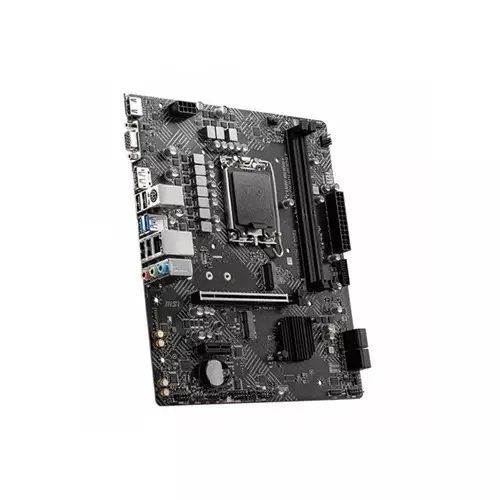

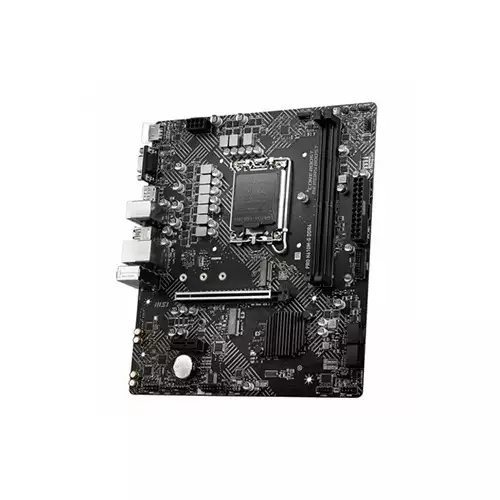

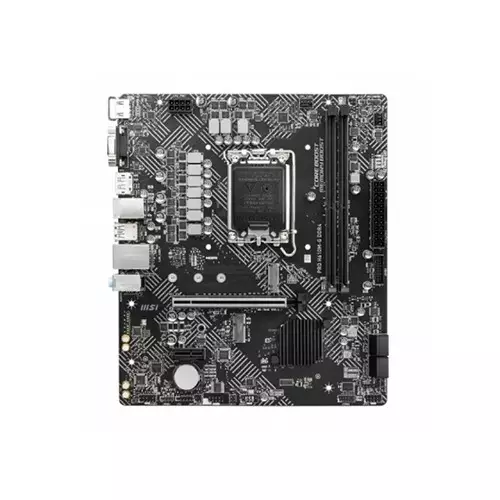

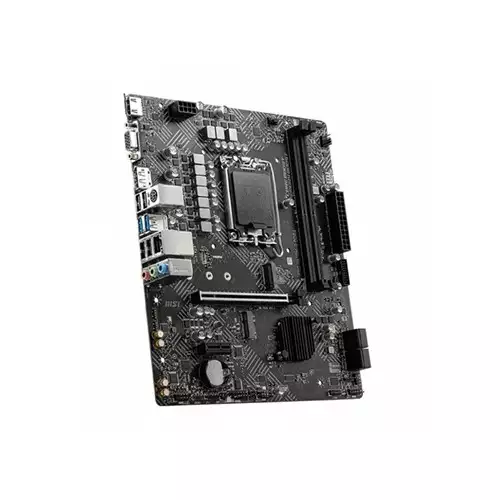

MSI PRO H610M-G DDR5 Intel 14th Gen Micro-ATX Motherboard, a compact yet powerful foundation for your PC build in Bangladesh. Engineered to support a wide range of processors, including Intel Core 14th, 13th, and 12th Gen CPUs, as well as Intel Pentium Gold and Celeron Processors, this motherboard ensures versatility and compatibility for various computing needs. Sporting the Intel H610 Chipset, it delivers stable performance and efficient power management. The mATX form factor of 211mmx243.84mm makes it suitable for smaller PC builds without compromising on functionality. Immerse yourself in high-definition audio with the Realtek ALC897 Codec, offering 7.1-channel audio output for an immersive sound experience. With expansion slots including 1x PCI-E x16 slot and 1x PCI-E x1 slot, along with support for PCIe 4.0 and PCIe 3.0, this motherboard provides ample room for upgrades and expansion. The inclusion of an M.2 slot with E-key for PCIe WiFi modules enhances connectivity options. Featuring two DDR5 memory slots supporting speeds up to 5600 MHz, this motherboard enables blazing-fast data transfer and multitasking capabilities. Enjoy stunning visuals with support for HDMI 2.1, DisplayPort 1.4, and VGA outputs, each offering maximum resolutions for an immersive display experience. Connectivity options abound with USB 2.0, USB 3.2 Gen1 Type A, and LAN ports, ensuring seamless connectivity with peripherals and networks. Storage options include M.2 and SATA ports, providing flexibility for storage expansion. Internal I/O ports such as CPU and system fans, front panel connectors, and RGB LED connectors offer convenience and customization options for your build. The inclusion of EZ Debug LED features simplifies troubleshooting, ensuring smooth operation. Backed by a 3-year manufacturing warranty, the MSI PRO H610M-G DDR5 Intel 14th Gen Micro-ATX Motherboard combines reliability, performance, and affordability, making it the ideal choice for your next PC build in Bangladesh.
Tech Land BD is your go-to place for the authentic MSI PRO H610M-G DDR5 Intel 14th Gen Micro-ATX Motherboard . Our wide range of the most recent Gigabyte Graphics Card is available for purchase. Order online or visit the closest Tech Land BD shop to get yours at the best price. Plus, the MSI PRO H610M-G DDR5 Intel 14th Gen Micro-ATX Motherboard includes a 3-year warranty.
Processor | |
Supported CPU |
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700 |
Mainboard | |
Chipset |
Intel H610 Chipset
|
Memory | |
Memory Type |
DDR5
|
Memory |
Memory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
Max. Memory Size |
Support up to 96GB
|
Storage | |
Storage |
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
Graphics | |
Graphics |
1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
Networking & Connectivity | |
LAN |
Intel I219V 1Gbps LAN controller
|
Audio & Microphone | |
Audio |
Realtek ALC897 Codec
7.1-Channel High Definition Audio |
Ports | |

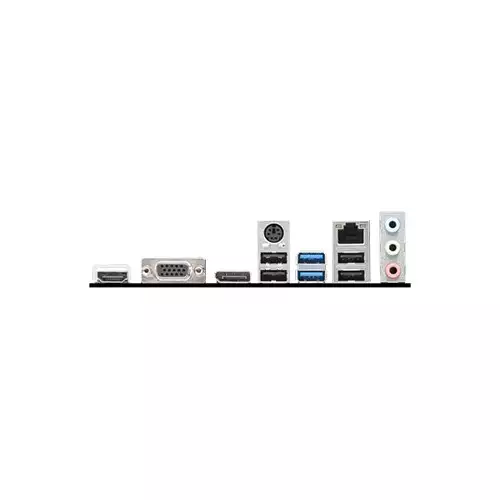

I/O Port |
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
PCI Card Slot |
1x PCI-E x16 slot
1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) 1x M.2 slot with E-key for PCIe WiFi module only |
Slots |
2x DDR5 memory slots
|
USB |
4x USB 2.0 (Rear)
2x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
HDMI |
1x HDMI 2.1
|
Others | |
Other Features |
1x TPM pin header(Support TPM 2.0)
LED FEATURE: 4x EZ Debug LED |
Physical Specification | |
Form Factor |
mATX
211mmx243.84mm |
Technical Info | |
SSD compatibility |
1x M.2
|
Warranty Information | |
Warranty |
3 Years
|
