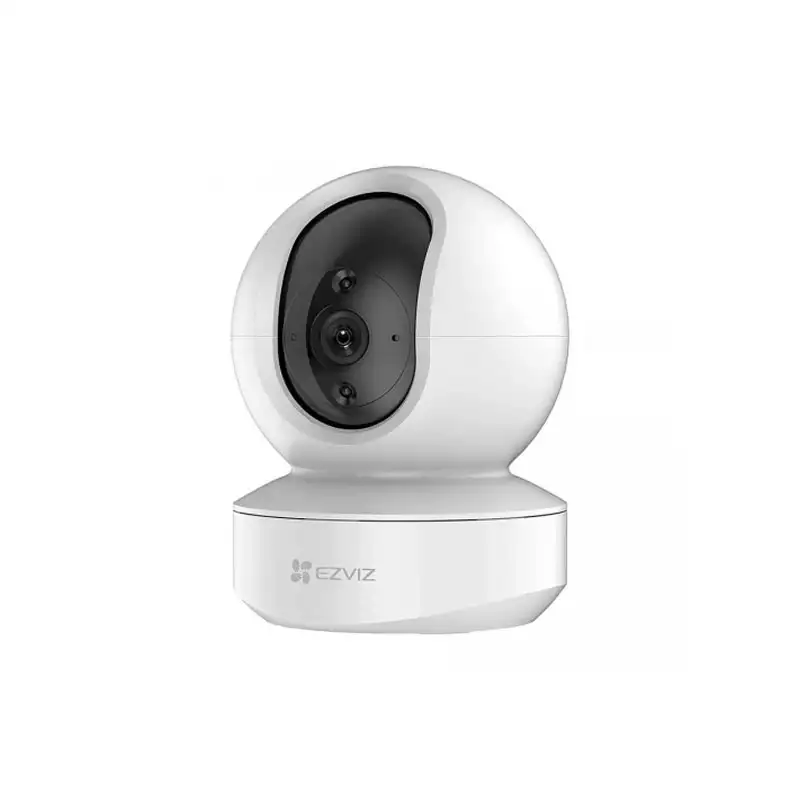

The EZVIZ CS-TY1 2MP Wi-Fi IP Camera This cutting-edge IP camera is designed to provide a comprehensive view, featuring a 2.0 MP camera with a maximum resolution of 1920 x 1080 for crystal-clear visuals. With its Pan and Tilt functionality, this camera offers a wide viewing angle, allowing for flexible coverage. The 4mm lens with an F2.4 aperture and up to 8x zoom ensures sharp focus and the ability to zoom in when needed. Transition seamlessly between day and night with the IR cut filter, providing optimal vision under varying lighting conditions. Night vision capability ensures clear black-and-white visuals even in low-light settings. Connectivity is hassle-free with Wi-Fi capabilities (IEEE 802.11b/g/n) and a self-adaptive Ethernet port. Your security is paramount, and this camera supports various wireless security protocols, including 64/128-bit WEP, WPA/WPA2, WPA-PSK, and WPA2-PSK. Stay informed with motion detection and engage in two-way audio communication. The EZVIZ Cloud proprietary protocol allows easy remote access to your camera via Android or iOS devices. This dome-shaped camera is not only technologically advanced but also aesthetically pleasing, coming in a sleek black and white design. The compact dimensions of 88 x 88 x 118.7mm make it easy to blend into any indoor environment. With a card slot supporting MicroSD storage up to 256GB, you can store footage conveniently. The package includes the TY1 Pan/Tilt Camera, base, screw kit, power cable, drill template, power adapter, and a quick start guide for easy setup. Invest in peace of mind with a 1-year warranty (excluding the adapter) on the EZVIZ CS-TY1 2MP Wi-Fi IP Camera. Elevate your security with this smart Wi-Fi pan and tilt camera, ensuring communication and security are at your fingertips.
Camera | |
Camera Feature |
Camera Type- Pan & Tilt
Mega Pixels- 2.0MP Max. Camera Resolution- 1920 x 1080 Image Sensor- 1/3 Inch Progressive Scan CMOS Resolution- 1920 x 1080 Shutter Speed- Self-adaptive shutter Day & Night- IR-cut filter with auto-switching Night Vision- Yes |
LENS |
Lens- 4mm@ F2.4
Lens Mount- M12 Lens Adjustment Range- 85 Degree diagonal, 75 Degree horizontal, 45 Degree vertical Zoom- Up to 8x Viewing Angle.- 55 Degree (V), 340 Degree (H) |
Networking & Connectivity | |
Network Interface |

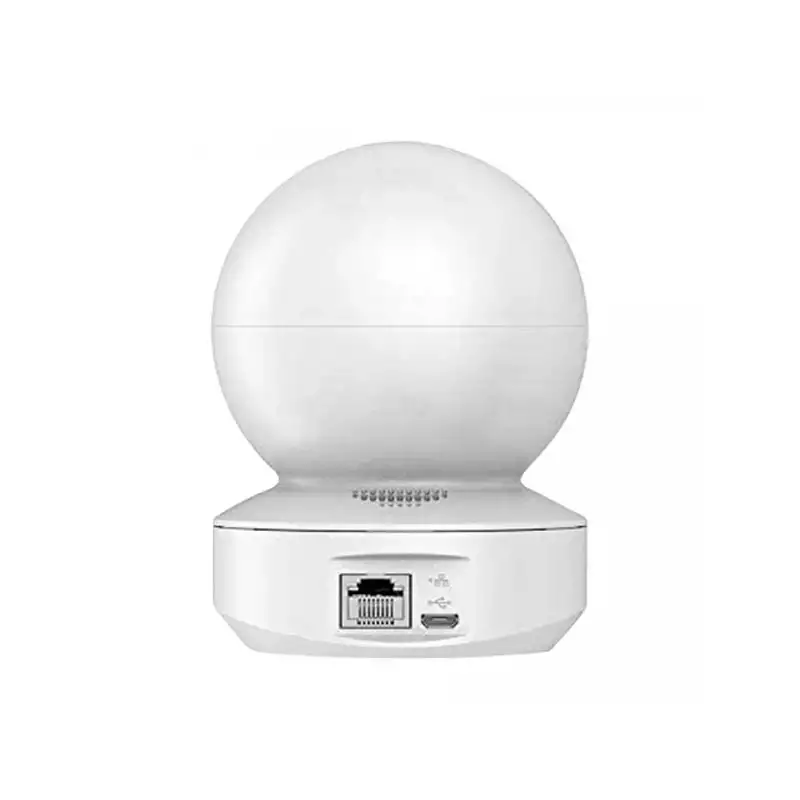

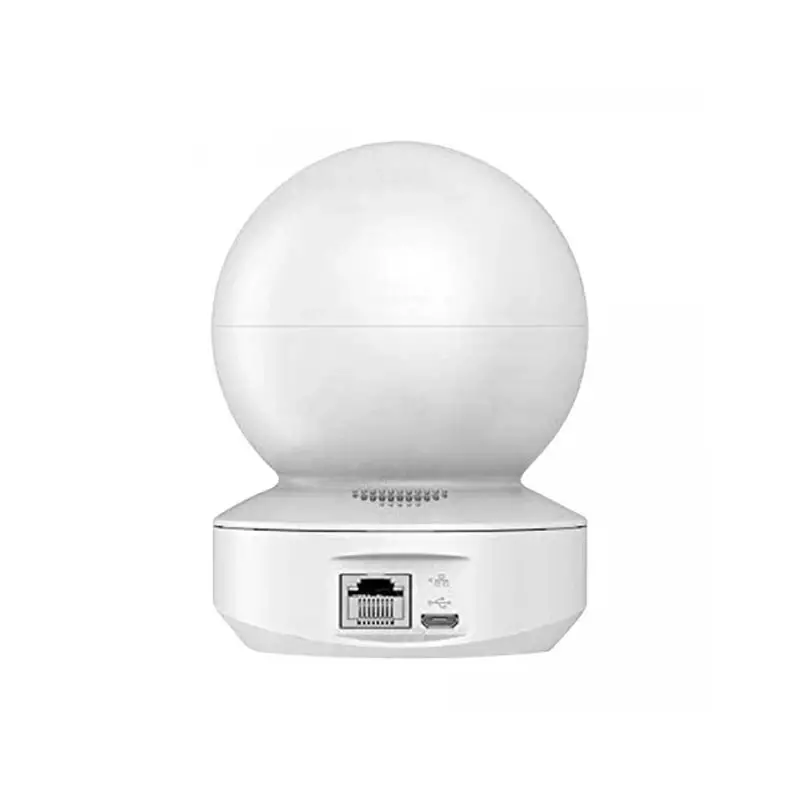

Interface(s)- 1 x RJ45 (10M/100M Adaptive Ethernet Port)
Wi-Fi- Yes Wi-Fi Details- IEEE 802.11 b, 802.11 g, 802.11 n Wi-Fi Pairing- AP paring |
Battery And Power | |
Power |
Power Supply- DC 5V/ 1A
Power Consumption- 5 W Operating Temperature- -10 Degree C - 45 Degree C Operating Humidity- 95% or less (non-condensing) |
Ports | |
Interface |
Frame Rate- Max:15fps; Self-Adaptive during network transmission
Digital Noise Reduction (DNR)- 3D DNR Wide Dynamic Range (WDR)- Digital WDR |
Others | |
Other Features |
Wireless Security- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Motion Detection- Yes Video Type- H.264 Mic & Speaker- Both Mic and Speaker Audio Communication- Two-Way Talk Frequency- 2.4 - 2.4835GHz Working Distance- 10 Meter Protocols- EZVIZ Cloud Proprietary Protocol Simultaneous Live View- Yes |
Physical Specification | |
Physical Specifications |
Form-Factor- Dome
Card Slot- Yes Storage Type- MicroSD Storage Supported- 256GB Color- Black & White |
Dimension |
88 x 88 x 118.7mm
|
Weight |
259 gm
|
Technical Info | |
Device Type |
IP Camera
|
Warranty Information | |
Warranty |
1 Year
|
