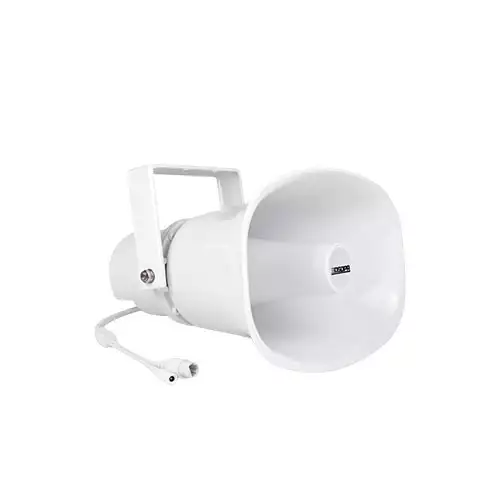

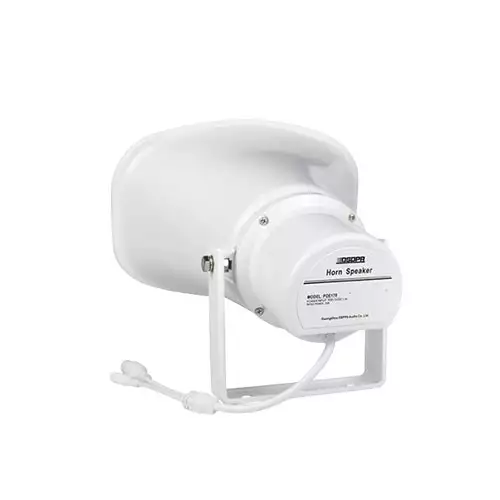

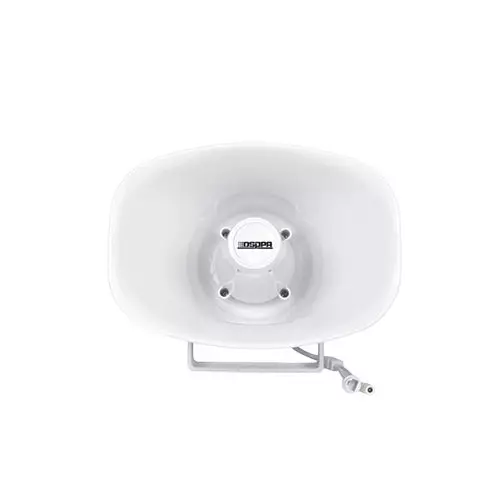

DSPPA POE170 Outdoor Network Horn Speaker

DSPPA POE170 Outdoor Network Horn Speaker in Bangladesh

The DSPPA POE170 is a high-performance outdoor network horn speaker engineered for reliable and powerful audio broadcasting in demanding environments. Designed for use in public address systems, security installations, and industrial facilities, this speaker offers robust sound output, seamless network connectivity, and durable construction, making it ideal for outdoor installations where clear communication is critical. Featuring a 15W RMS amplifier output at 8Ω, the POE170 delivers strong and clear audio, with a maximum sound pressure level (SPL) of 117dB±2dB and a high sensitivity of 105dB±2dB. Its 2.5" unit driver ensures efficient sound projection across a wide frequency response range of 350Hz to 10kHz, which is optimal for voice announcements and emergency alerts. With a signal-to-noise ratio (SNR) of ≥70dB and distortion of ≤1%, this speaker guarantees clarity even in noisy outdoor settings. Built with Power over Ethernet Plus (PoE+ IEEE 802.3at) and 24V DC power options, the POE170 offers flexible power solutions for diverse installation scenarios. Its RJ45 network interface supports 10/100M Ethernet and a wide array of communication protocols, including TCP/IP, UDP, RTP, RTSP, HTTPS, IGMP (multicast), and more, ensuring seamless integration with modern IP-based audio and security systems. Crafted for durability, the POE170’s robust enclosure is built to withstand harsh weather conditions. The compact machine dimensions of 285x205x291mm and lightweight design (1.9kg per unit) simplify installation on poles, walls, or ceilings. Each package includes four units with a total gross weight of 10.8kg and overall packaging dimensions of 630x510x335mm, making bulk deployment efficient and cost-effective. Whether for campuses, factories, transportation hubs, or urban security applications, the DSPPA POE170 offers an advanced solution for network-based outdoor sound broadcasting, combining cutting-edge features with rugged reliability to meet the highest standards of modern audio communication.

FAQs:

1. Can the DSPPA POE170 be integrated with existing IP-based security or PA systems?

Yes. The POE170 supports a wide range of network protocols including TCP/IP, UDP, RTP, RTSP, IGMP (multicast), and HTTPS, making it fully compatible with most IP-based public address and security systems. It also supports SIP (RFC3261), enabling integration with VoIP and IP-PBX systems.

2. Is the speaker weatherproof for permanent outdoor installation?

Yes. The POE170 is specifically designed for outdoor use, with a rugged and durable housing that can withstand harsh weather conditions. Its construction ensures reliable performance in rain, dust, and varying temperatures, making it suitable for long-term outdoor installations.

3. What are the power options for the DSPPA POE170?

The speaker supports PoE+ (IEEE 802.3at) for simplified installation using a single network cable for both power and data. It also includes a DC 24V/2A input as an alternative power option, providing flexibility for different installation scenarios.
