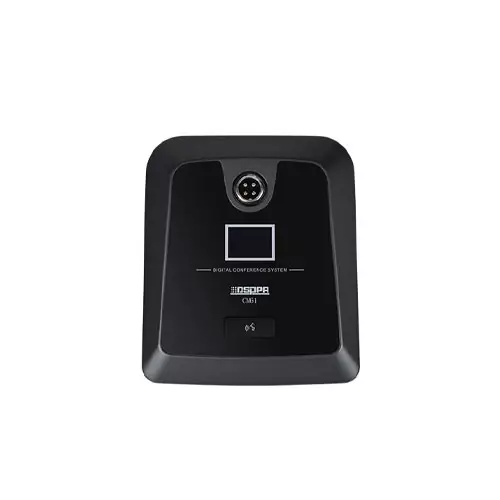

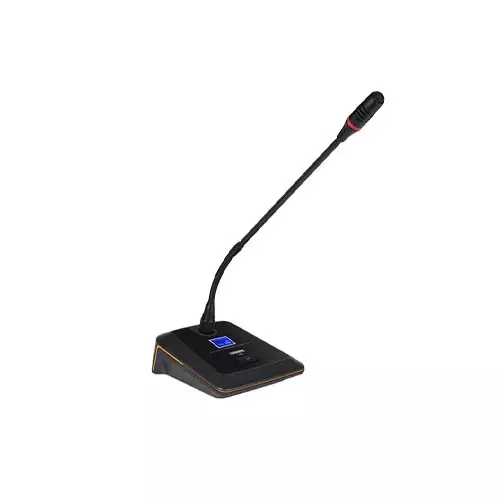

DSPPA CM61 Conference Microphone Delegate Unit

DSPPA CM61 Conference Microphone Delegate Unit in Bangladesh

The DSPPA CM61 Delegate Unit is a premium conference microphone system designed for clear, interference-free communication in professional settings such as boardrooms, council chambers, and large meeting environments. Built with user convenience and performance in mind, this unit features a high-sensitivity cardioid condenser microphone that captures speech with precision, minimizing background noise and delivering studio-quality audio. With a frequency response of 30Hz to 20kHz and a sensitivity of -42dB ±2dB, the CM61 ensures that every word is captured naturally and clearly. The 430mm gooseneck microphone allows for optimal positioning, and the 300mm recommended speaking distance helps maintain consistent voice levels. The microphone head is equipped with an intuitive light ring indicator that displays speaking and mute status at a glance, enhancing usability during dynamic discussions. The unit includes a 1.23-inch OLED display, which presents real-time system information and status, ensuring transparency and ease of use. Designed for modern environments, the CM61 incorporates an anti-interference circuit that provides strong resistance to noise from mobile phones, WiFi, Bluetooth, and FM signals, maintaining stable and clean communication throughout the session. Featuring an audio start function, the microphone activates automatically when speech is detected, ensuring hands-free operation and streamlined interactions. While this is the delegate unit, the CM61 system supports up to six chairman units, each equipped with priority override functionality—allowing a chairman to mute all delegate microphones as needed. Importantly, the chairman unit can be connected from any position in the system, providing installation flexibility. The CM61 employs a dual backup connection system, using either 8-core aviation-grade T-type cables or standard network cables, ensuring reliable operation and fast setup. As a passive device, the delegate unit is powered directly by the system host, eliminating the need for external power sources. Robust, intuitive, and interference-resistant, the DSPPA CM61 Conference Microphone Delegate Unit is a smart solution for any organization seeking professional-grade audio conferencing with seamless integration and reliable performance.

FAQs:

1. Does the CM61 Delegate Unit require an external power source?

No, the CM61 is a passive device and receives power directly from the system host. There is no need for an external power supply, simplifying installation and operation.

2. Can the CM61 be used in environments with strong wireless signals like WiFi or mobile networks?

Yes. The CM61 is equipped with an advanced anti-interference circuit that significantly reduces the effects of interference from mobile phones, WiFi, Bluetooth, and FM broadcasts, ensuring stable and clear audio performance.

3. What type of cable is used to connect the CM61 units, and is it easy to set up?

The CM61 units support a dual backup design using either 8-core dedicated aviation T-type cables or standard network cables. This flexibility allows for quick and reliable setup, with enhanced redundancy for uninterrupted operation.
