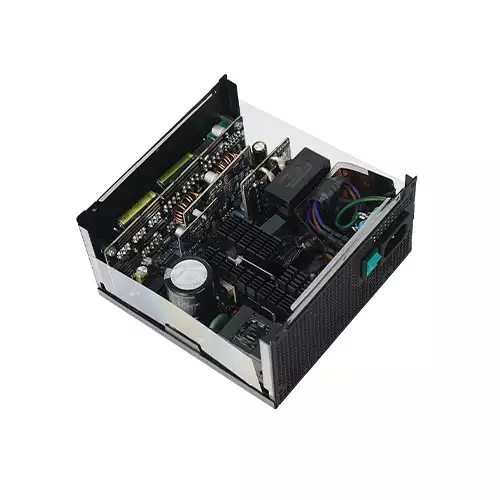

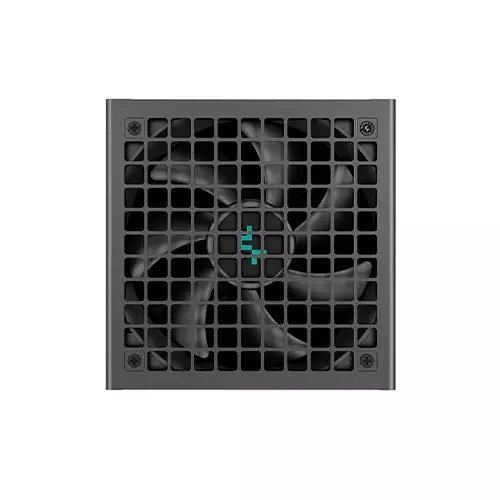

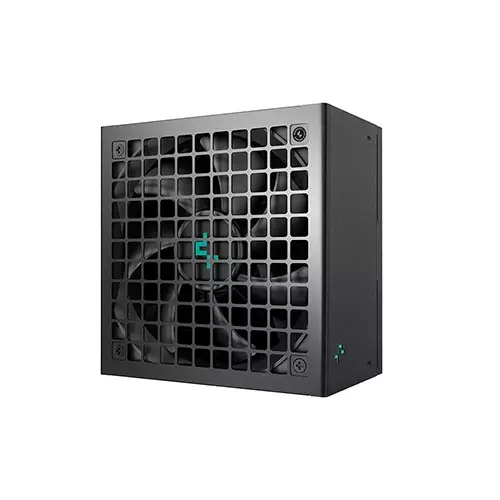

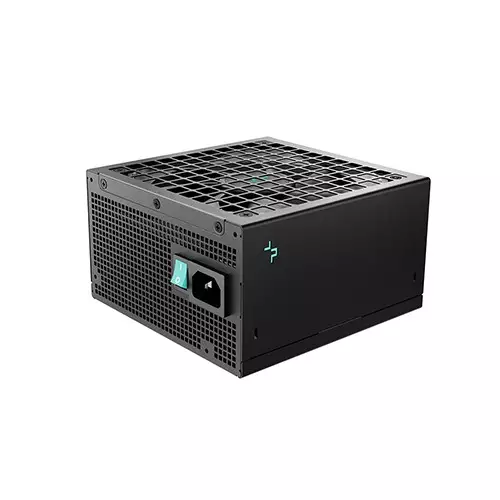

DeepCool PN1000M 1000W Modular Power Supply is built for those who need consistent and efficient power delivery in demanding PC setups. Designed with ATX12V V3.1 compliance, this PSU is ready to handle the power needs of the latest graphics cards and processors. With an 80Plus Gold certification, the PN1000M achieves over 90% efficiency at 50% load, helping to cut down on power loss and excess heat. Inside, it features high-quality Japanese capacitors and a reliable Active PFC + Half Bridge SRC LLC + DC-DC structure for stable, ripple-free output. A 135mm Fluid Dynamic Bearing fan keeps the unit cool and quiet, even during heavy workloads. Built-in protection features like Over Voltage (OVP), Over Power (OPP), Short Circuit (SCP), Over Temperature (OTP), Under Voltage (UVP), and Over Current (OCP) help safeguard your components in the event of electrical anomalies. This power supply also has a hold-up time of ≥16ms at 80% load, which adds another layer of stability during sudden power dips. Thanks to its fully modular design, you only need to plug in the cables you’ll use, making for a neater build and better airflow. Compact in size at 150×150×86mm, the PN1000M fits well into most standard cases. Rated for 100,000 hours MTBF, it's a reliable pick for gamers, PC enthusiasts, and creative professionals. Backed by global certifications including CE, FCC, and RoHS, the PSU meets safety and energy-efficiency standards. Whether you’re putting together a new high-performance rig or upgrading your existing setup, the DeepCool PN1000M offers the power and reliability to match.
If you’re building a performance-driven PC and need a power supply you can rely on, the DeepCool PN1000M is now available at Tech Land BD—your trusted tech store in Bangladesh. This 1000W modular unit delivers stable power, quiet cooling, and high efficiency. With original DeepCool products, expert service, and great prices, Tech Land BD makes upgrading your system easier than ever. Order now and give your PC the power it deserves.
Yes, it meets the ATX12V V3.1 standard and is fully capable of powering next-gen graphics cards and CPUs.

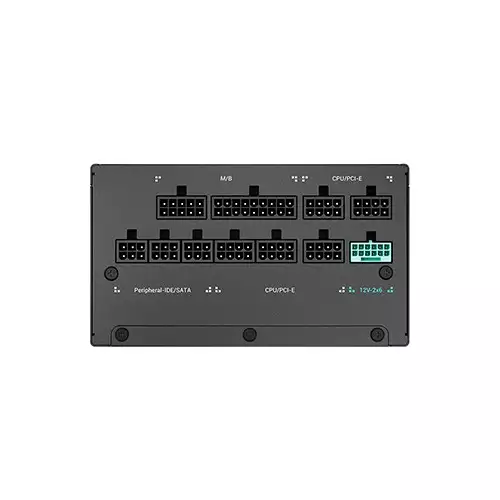

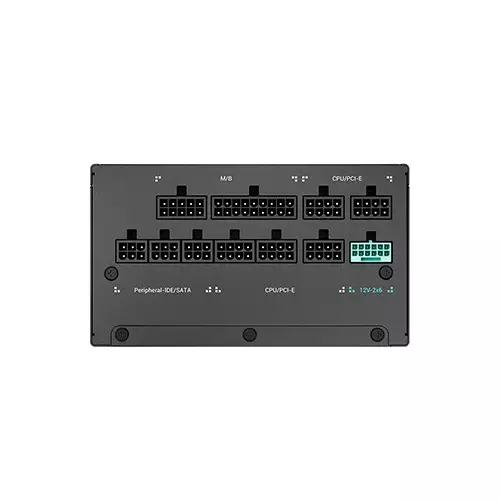

Yes, it is a fully modular unit, meaning you can connect only the cables you need for a cleaner and more organized build.
The PSU is 80Plus Gold certified, delivering over 90% efficiency at 50% load, helping to reduce heat and energy waste.
Cooling System | |
Fan Bearing |
FDB (Fluid Dynamic Bearing)
|
Fan Size |
135mm
|
Battery And Power | |
Power Good Signal |
100-150ms
|
Capacitor |
Japanese Bulk Capacitor
|
Erp Regulation |
ErP 2014
|
Efficiency (Approx.) |
≥90% Under Typical Load(50% Loading)
|
Special Features | |
Regulatory |
CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS
|
Certifications |
80Plus Gold
|
Protection |
WEEE/ä¸å›½ RoHS/Triman/P65
|
Physical Specification | |
Color |
Black
|
Operation Temperature |
0 - 40℃
|
Dimension |
150×150×86mm
|
Technical Info | |
Topology |
Active PFC + Half Bridge SRC LLC + DC to DC
|
Hold Up Time |
≥16ms(80% Load)
|
Type |
ATX12V V3.1
|
Brand |
DeepCool
|
Model |
PN1000M
|
MTBF |
100,000 Hours
|
Warranty Information | |
Warranty |
10-Years
|
