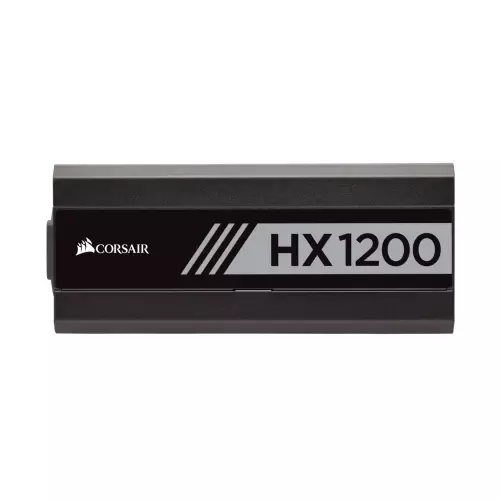

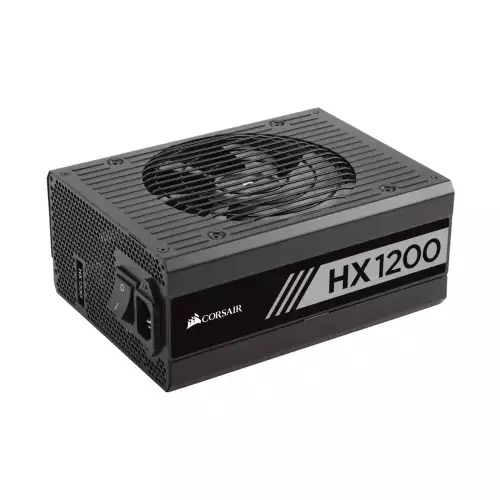

CORSAIR HX1200 POWER SUPPLY

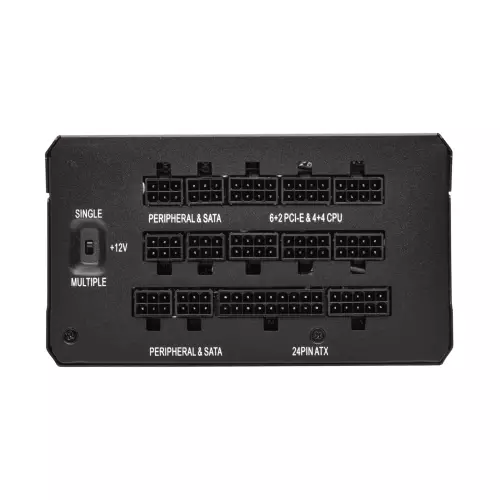

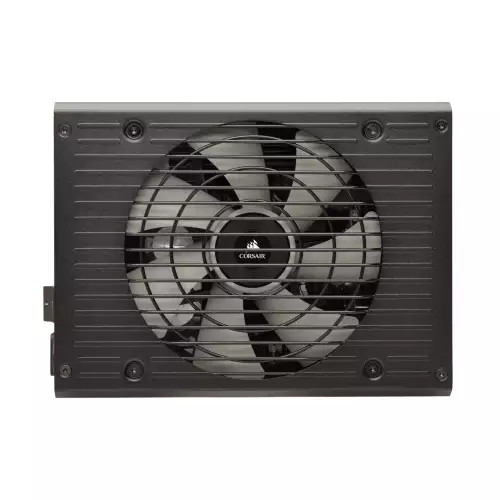

The CORSAIR HX1200 POWER SUPPLY From CORSAIR. The CORSAIR HX1200 POWER SUPPLY offers you extremely tight voltage regulation, quiet operation, platinum-certified efficiency, and a fully modular cable set. Equipped with all Japanese 105 ° C capacitors, they are a good choice for PCs. CORSAIR HX1200 POWER SUPPLY has High performance where reliability is key. + 12 V single rail or + 12 V multi rail mode. In the "SINGLE" position, the full output capacity of the + 12V rail of the power supply unit is available for each connector, while in the "MULTIPLE" position, each individual connector has overcurrent protection that cannot absorb more than 40A of current on any one. Cables are supplied. Fully modular DC cables make it easy to build and upgrade with clean, great-looking results. CORSAIR HX1200 POWER SUPPLY 80 PLUS Platinum efficiency reduces running costs and excess heat, and the zero RPM fan mode ensures near-silent silence during low and medium loads. The CORSAIR HX1200 POWER SUPPLY High-quality internal components ensure solid power delivery and long-term reliability
Graphics | |
Multi-GPU |
Yes
|
Cooling System | |
Fan |
Fan bearing technology Fluid Dynamic Bearing
Fan size mm 135mm |
Zero RPM Mode |
Yes
|
Networking & Connectivity | |
Frequency |
Input Frequency Range 47 - 63 Hz
|
Battery And Power | |
Efficiency (Approx.) |
80 PLUS Efficiency Platinum
|
Current |
Input Current 15 - 7.5 A
|
Voltage |
Over Voltage Protection Yes
Input Voltage 100 - 240 V |
Input |
Input Current: 15 - 7.5 A
Input Voltage: 100 - 240 V |
Output |
Single +12V Rail Mode:
+3.3V@30A, +5V@30A, +12V@100A, -12V@0.8A, +5VSB@3.5A Multiple +12V Rail Mode: +3.3V@30A, +5V@30A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, +12V5@40A, +12V6@40A, +12V7@40A, +12V8@40A, -12V@0.8A, +5VSB@3A |
Power |
Maximum Power : 1200W
|
Ports | |
PSU Form Factor |
ATX
|
Connector |
1 x 24-pin ATX Cable
2 x 1 x EPS12V/ATX12V Cable (4+4) 4 x 2 x PCIe Cable (6+2) 5 x 4 x SATA Cable (4 Connectors) 2 x 4 x PATA Cable (4 connectors) |
Special Features | |
Certifications |
80 PLUS PLATINUM
|
Others | |
Other Features |
Special Technology OVP (Over Voltage)
UVP (Under Voltage) SCP (Short Circuit) OTP (Over Temp) OPP (Over Power) Protections OVP (Over Voltage) UVP (Under Voltage) SCP (Short Circuit) OTP (Over Temp) OPP (Over Power) |
Physical Specification | |
Dimension |
3.39" x 5.91" x 7.87"
|
Weight |
2.3
|
Technical Info | |
MTBF |
MTBF hours 100,000 hours
|
Modular Type |
Full Modular
|
Warranty Information | |
Warranty |
10 Years Warranty
|
