ASUS Prime B860-PLUS-CSM is a robust and feature-rich ATX motherboard designed to accommodate the latest Intel® Core™ Ultra processors with the LGA1851 socket. Tailored for both mainstream users and professional builders, this motherboard offers impressive memory capabilities, next-gen storage support, and premium build quality—all while maintaining the classic reliability of ASUS. Whether you're building a high-performance workstation, a gaming rig, or a powerful desktop for everyday computing, the ASUS Prime B860-PLUS-CSM ensures superior compatibility and longevity.
Technical Details
Powered by the Intel® B860 chipset, the ASUS Prime B860-PLUS-CSM supports Intel® Core™ Ultra Processors (Series 2) with LGA1851 sockets. This motherboard accommodates up to 256GB of DDR5 memory across four DIMM slots, with speeds of up to 8666+MT/s when overclocked. The dual-channel memory architecture supports Intel® XMP and ASUS AEMP III for optimal performance tuning. It features advanced display options with both DisplayPort 1.4 and HDMI 2.1 outputs, supporting 4K@60Hz video output. For storage, it offers three M.2 slots (including one PCIe 5.0 x4 and two PCIe 4.0 x4) and four SATA 6Gb/s ports, supporting RAID 0/1/5/10. Expansion slots include one PCIe 5.0 x16 and one PCIe 4.0 x16 (x4 mode), ideal for modern GPUs and high-speed peripherals. Networking is handled by a Realtek 2.5Gb Ethernet port with ASUS LANGuard protection. Audio is powered by Realtek’s 7.1 Surround Sound High Definition Audio CODEC, enhanced with premium capacitors and isolated PCB layers. In terms of connectivity, users get a total of 13 USB ports (6 rear and 7 front), including a 20Gbps Type-C port. Internal headers include multiple fan connectors, RGB and Addressable Gen 2 headers, Thunderbolt™ (USB4®), and a clear CMOS header. With a solid VRM, robust heatsinks, pre-mounted I/O shield, and ASUS-exclusive software such as Armoury Crate, Fan Xpert 2+, and AI Advisor, this board is a powerhouse for modern computing.
Availability and Usability
The ASUS Prime B860-PLUS-CSM is readily available at Tech Land BD, a top-rated retailer in the Bangladeshi tech market. Whether you’re upgrading or assembling a brand-new build, Tech Land BD offers authentic components with reliable after-sales support. For customers searching for the ASUS Prime B860-PLUS-CSM Price in BD, Tech Land BD provides a competitive price and delivery across the country. This motherboard is a perfect match for developers, gamers, and professionals who want high-speed DDR5 RAM, advanced PCIe support, and enhanced stability. It’s also a future-proof choice for those planning to upgrade to Intel's latest CPUs. The flexibility of expansion, durable design, and support for high-performance storage make it highly usable for a wide variety of applications.
Features
If you’re looking to future-proof your next PC build, now is the perfect time to invest in the ASUS Prime B860-PLUS-CSM from Tech Land BD. With its support for next-gen Intel® processors, blazing-fast DDR5 memory, and top-tier expansion and connectivity options, this motherboard is built for performance and reliability. Whether you’re into content creation, gaming, or high-end multitasking, this board provides everything you need in one powerful package. Plus, with the ASUS Prime B860-PLUS-CSM Price in Bangladesh being more affordable than ever at Tech Land BD, there’s no better place to make your purchase. Take advantage of their genuine product guarantee and excellent service—grab yours before it’s out of stock!
Processor | |
Supported CPU |
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Mainboard | |
Chipset |
Intel B860 Chipset
|
BIOS |
2 x 128 Mb Flash ROM, UEFI AMI BIOS
|
Memory | |
Memory |
4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered , Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) |
Graphics | |
Graphics |
1 x DisplayPort**
1 x HDMIâ„¢ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ***** VGA resolution support |
Networking & Connectivity | |
LAN |
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard |
WiFi |
M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately. |
Audio & Microphone | |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
Ports | |
Slots |
Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
Internal I/O Ports |
Fan and Cooling related
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |

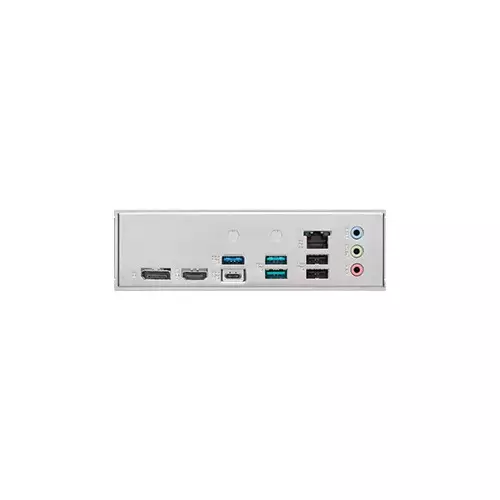

External I/O Ports |
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
USB |
Rear USB (Total 6 ports)
1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps port (1 x USB Type-C®) 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
HDMI |
1 x HDMI port
|
Software | |
Operating System |
Windows 11 (22H2 & later),
Windows 10 64-bit(21H2 & later) |
Special Features | |
Special Features |
ASUS 5X PROTECTION III
-DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers |
Others | |
Accessories |
Cables
2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 rubber package 2 x Screw packages for M.2 SSD 1 x Screw package for M.2 Key E Documentation 1 x Quick start guide Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 rubber package 2 x Screw packages for M.2 SSD 1 x Screw package for M.2 Key E Documentation 1 x ACC Express Activation Key Card 1 x Quick start guide |
Physical Specification | |
Form Factor |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Form Factor |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Warranty Information | |
Warranty |
03 years
|
