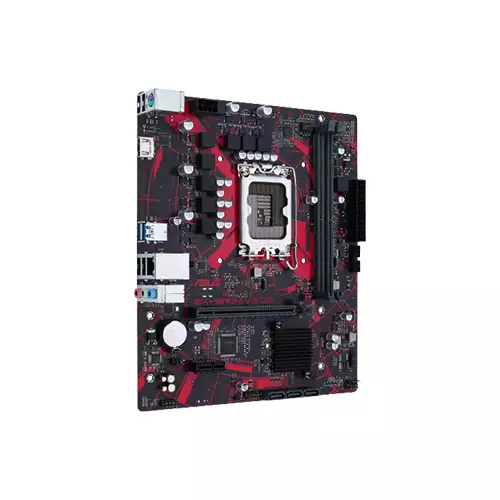

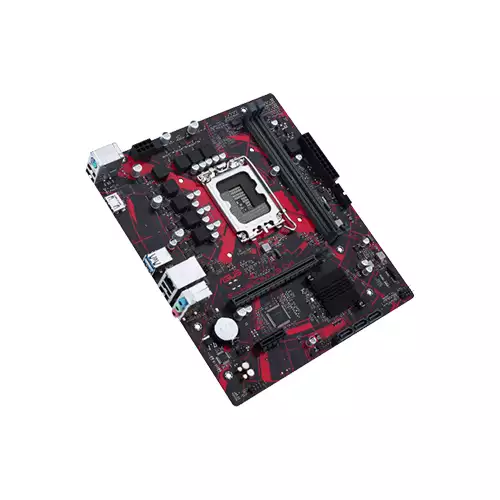

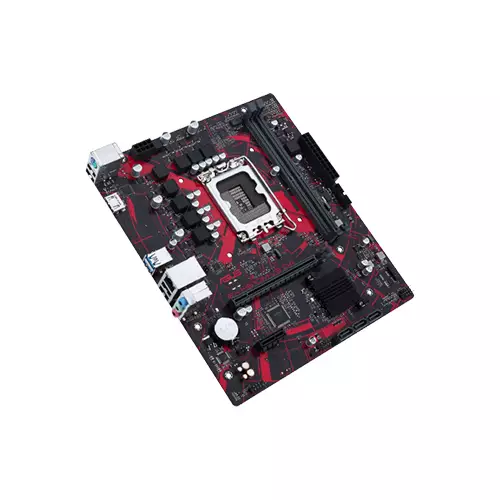

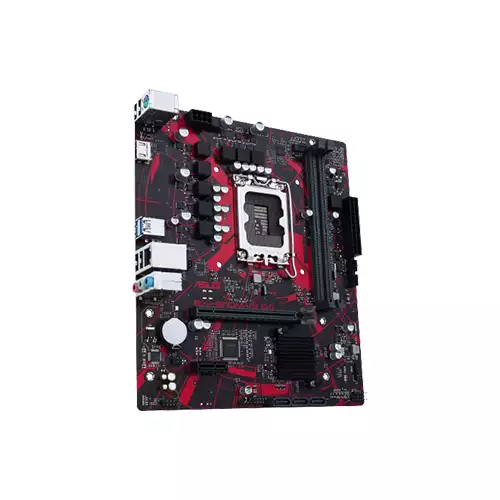

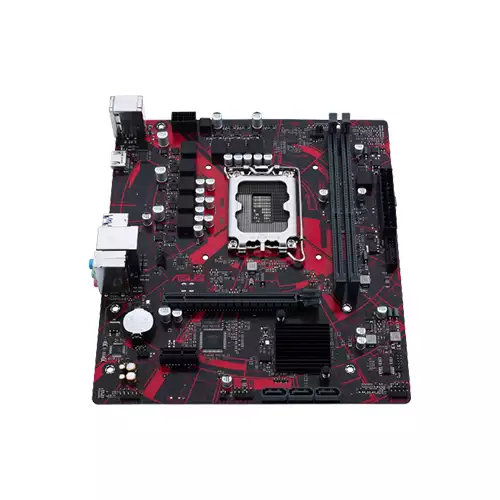

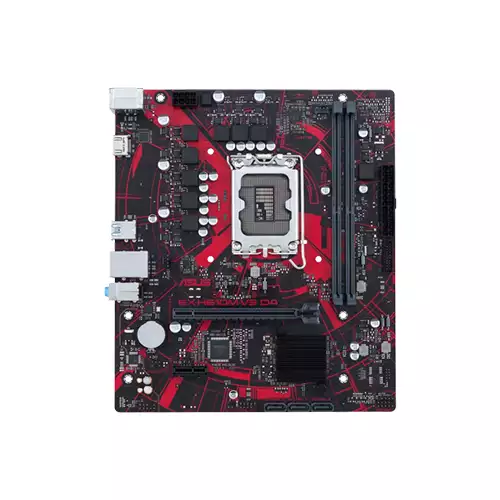

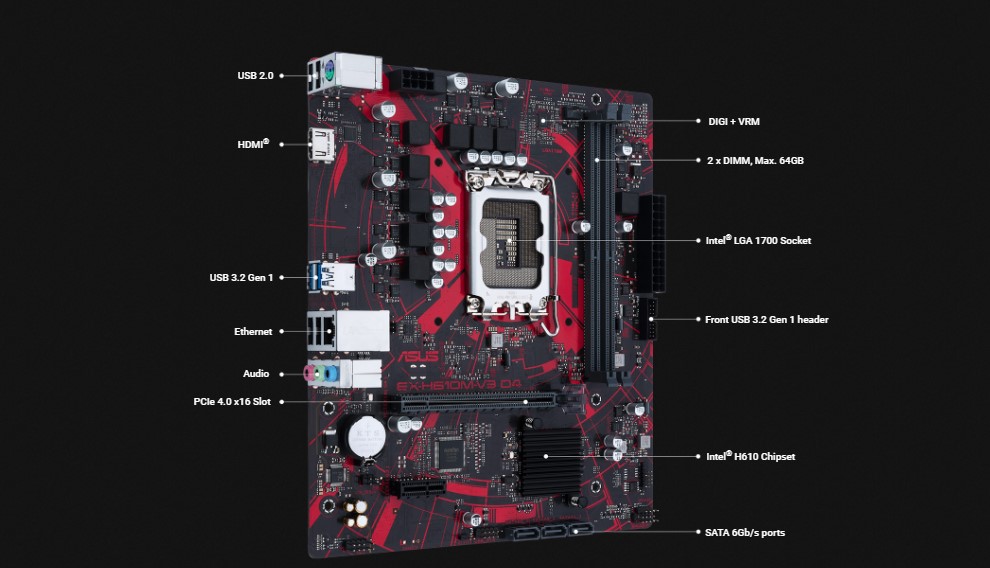

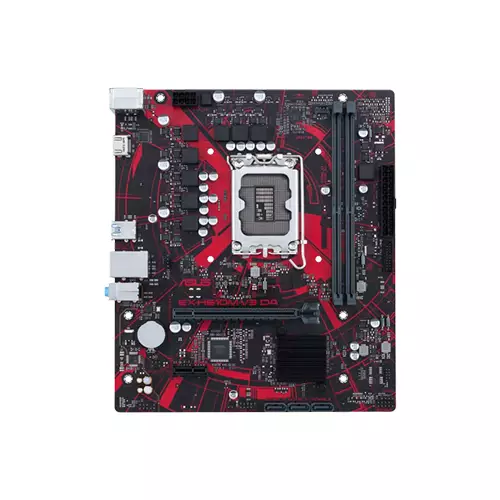

Asus EX-H610M-V3 D4 12th & 13th Gen Motherboard. The EX-H610M-V3 D4 is a motherboard from ASUS that supports 13th and 12th Gen Intel Core processors, Pentium Gold, and Celeron processors using the Intel Socket LGA1700. It has an Intel H610 chipset and supports up to 64GB of DDR4 memory with a maximum data rate of 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory. The motherboard has a dual-channel memory architecture and supports Intel Extreme Memory Profile (XMP). The graphics specifications may vary between CPU types, and the motherboard has one HDMI port that supports 4K@60Hz as specified in HDMI 2.1. It also has one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot for expansion. The EX-H610M-V3 D4 has three SATA 6Gb/s ports for storage and one Realtek 1Gb Ethernet port for networking. The motherboard has a total of six USB 3.2 Gen 1 and four USB 2.0 ports at the rear, and two USB 3.2 Gen 1 and two USB 2.0 ports at the front. It also has a Realtek 7.1 Surround Sound High Definition Audio CODEC that supports jack-detection, multi-streaming, front panel jack-retasking, and up to 24-Bit/192 kHz playback.
Other features of the motherboard include ASUS 5X PROTECTION III for protection, ASUS Q-Design for easy installation, and ASUS Thermal Solution for cooling. It has a mATX form factor and comes with two SATA 6Gb/s cables, an I/O Shield, a support DVD, and a user guide. The EX-H610M-V3 D4 is compatible with Windows 11 64-bit and Windows 10 64-bit operating systems. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Asus Motherboard available at Techland BD is well recognized. The large selection of Asus Motherboard available at Techland BD is well recognized.
Processor | |
Supported CPU |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
Mainboard | |
Chipset |
Intel® H610 Chipset
|
BIOS |

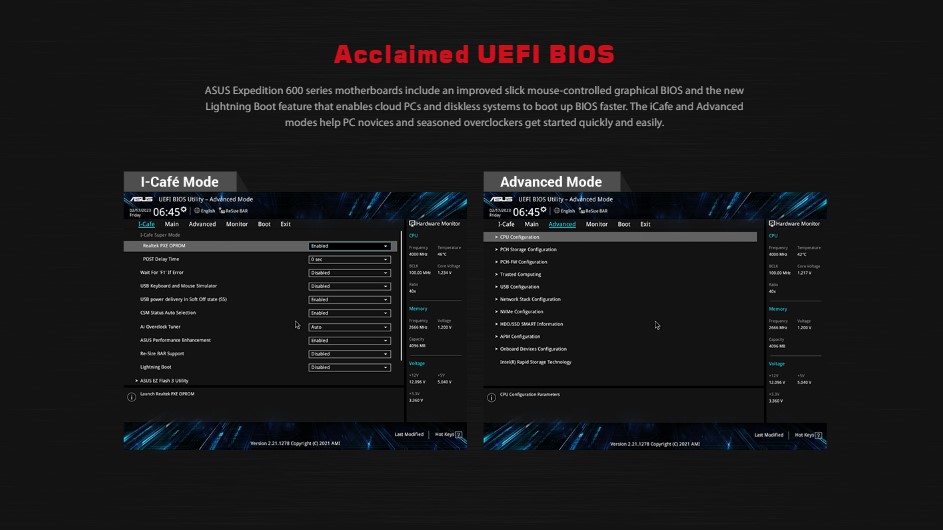

128 Mb Flash ROM, UEFI AMI BIOS
|
Memory | |
Memory |
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
Storage | |
Supported Storage |
Total supports 3 x SATA 6Gb/s ports
Intel® H610 Chipset 3 x SATA 6Gb/s ports |
Graphics | |
Graphics |
1 x HDMI® port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1. |
Networking & Connectivity | |
LAN |
1 x Realtek 1Gb Ethernet
|
Audio & Microphone | |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
Ports | |
Slots |
Intel®13th & 12th Gen Processors

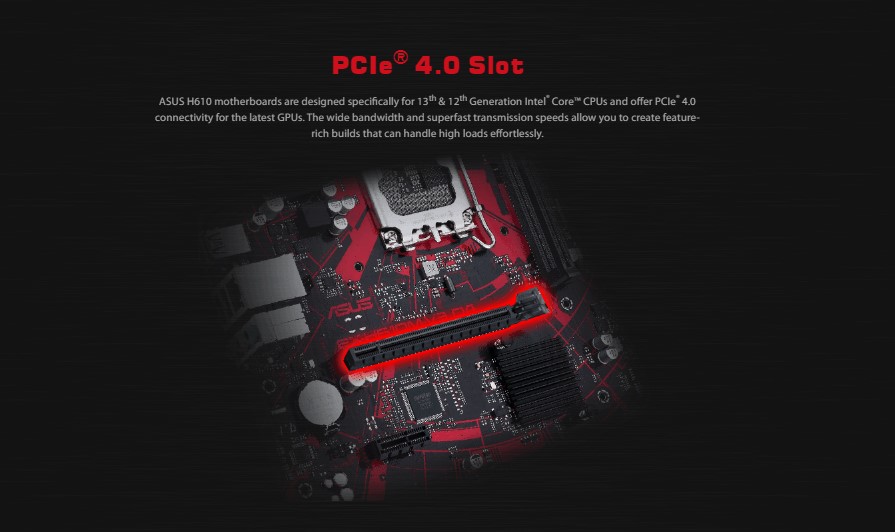

1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot |
Internal I/O Ports |
Fan and Cooling related
1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header |

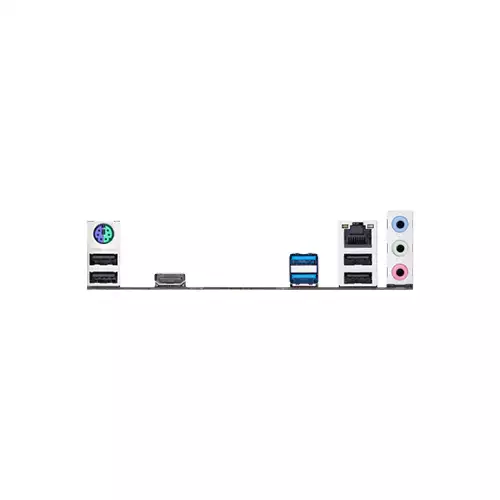

External I/O Ports |
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A) 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
USB |
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
HDMI |
1 x HDMI® port
|
Special Features | |
Special Features |
ASUS 5X PROTECTION III
- DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Anti-moisture coating - USBGuard |
Others | |
Other Features |
Manageability: WOL by PME, PXE
Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield Installation Media 1 x Support DVD Documentation 1 x User guide Operating System: Windows® 11 64-bit, Windows® 10 64-bit |
Physical Specification | |
Form Factor |
mATX Form Factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |
Dimension |
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
|
Warranty Information | |
Warranty |
3 Years
|
