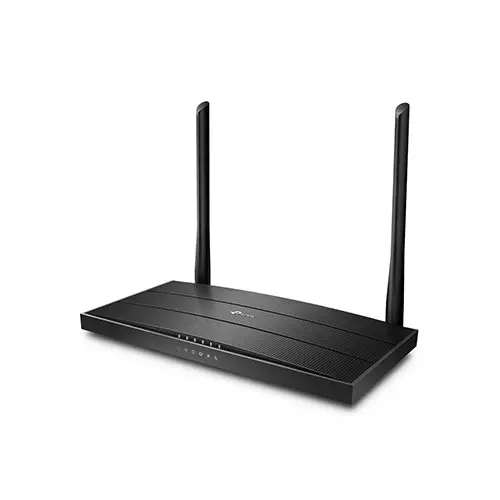

TP-Link XC220-G3v AC1200 Wireless VoIP GPON Router is a versatile and high-performance networking device designed to meet the demands of modern homes and offices. Available at Tech Land BD, this router combines advanced wireless connectivity, VoIP capabilities, and GPON technology to deliver seamless internet access, voice communication, and network management. With dual-band Wi-Fi support, the XC220-G3v offers speeds of up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, ensuring fast and reliable wireless connections for multiple devices. The router features four Gigabit LAN ports, one SC/APC GPON port, and one RJ11 FXS port, providing flexible wired and fiber-optic connectivity options. The built-in VoIP functionality supports up to 8 SIP accounts and advanced call features such as call hold, call forwarding, 3-party conferencing, and caller ID, making it ideal for both personal and professional use. The XC220-G3v is equipped with two external dual-band antennas for enhanced wireless coverage and stability. It also supports TP-Link OneMesh technology, allowing you to create a seamless whole-home Wi-Fi network by connecting compatible devices. Advanced security features like NAT firewall, access control, MAC/IP/URL filtering, and DoS protection ensure a safe and secure network environment. The router is easy to manage via a web-based interface, remote management, or command-line interface, and supports IPv4 and IPv6 protocols. With its compact design, robust performance, and comprehensive features, the TP-Link XC220-G3v AC1200 Wireless VoIP GPON Router is the perfect solution for high-speed internet, voice communication, and network management. Elevate your connectivity experience with TP-Link, available now at Tech Land BD.
The router supports dual-band Wi-Fi with speeds of up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band.
Yes, it supports VoIP with up to 8 SIP accounts and features like call forwarding, 3-party conferencing, and caller ID.
Yes, the router supports TP-Link OneMesh technology, allowing you to create a seamless whole-home Wi-Fi network with compatible devices.
Networking & Connectivity | |
Standards |
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
|
Advanced Functions |
Parental Control, Network Address Translation (NAT), Port Mapping
(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3 |
Transmit Power |
2.4 GHz: 26 dBm(EIRP), 5GHz: 27dBm (EIRP)
|
Protocols |
Supports IPv4 and IPv6
|
Antenna |
2 External Dual Band Antennas
|
Wireless Security |
WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
|
Frequency |
2.4 GHz and 5 GHz (not Supports DFS)
|
Battery And Power | |
Power Supply |
12V/1.0A
|

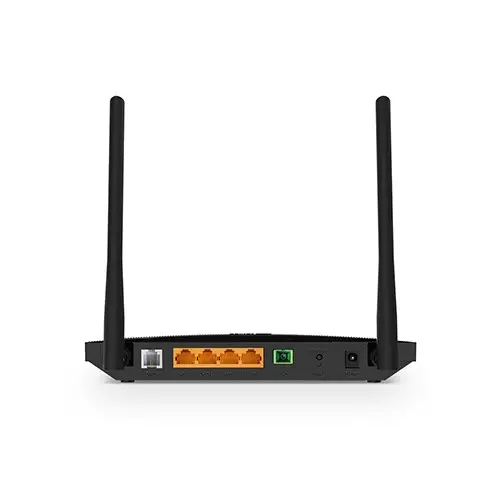

Ports | |
Interface |
4 10/100/1000 Mbps RJ45 LAN Ports
1 SC/APC GPON Port 1 RJ11 FXS Port |
Security | |
Security Feature |
NAT Firewall, Access Control, MAC/IP/URL Filtering,
IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death” |
Special Features | |
Features |
VOIP Features:
Call hold, Call forward, Warm call, Do not disturb, Call restriction, Speed dial, etc. Caller ID, 3-party conference, SIP account – up to 8 accounts |
Others | |
Button |
Power On/Off Button, WPS/Wi-Fi Button, RESET Button
|
Other Features |
Quality of Service: Hardware QoS
DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP Dynamic DNS: DynDns, NO-IP VPN Pass-Through: PPTP, L2TP, IPSec Pass-through |
Physical Specification | |
Color |
Black
|
Operating Humidity |
10%~90% non-condensing
|
Storage humidity |
5%~90% non-condensing
|
Operating Temperature |
0℃~40℃ (32℉ ~104℉)
|
Storage Temperature |
-40℃~70℃ (-40℉ ~158℉)
|
Technical Info | |
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10,
MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
Brand |
TP-Link
|
Model |
XC220-G3v
|
Technology |
EasyMesh Compatible, TP-Link OneMesh
|
Management |
Web Based Configuration (HTTP), Remote management, Command Line Interface,
SSL for TR-069, Web-Based Firmware Upgrade, Diagnostic Tools, OMCI |
Signal Frequency |
867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz
|
Warranty Information | |
Warranty |
1-Year
|
