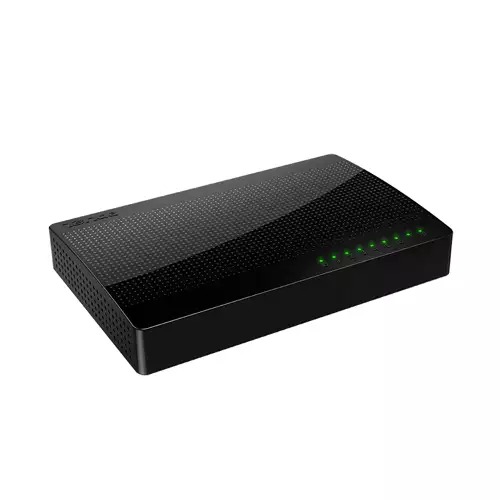

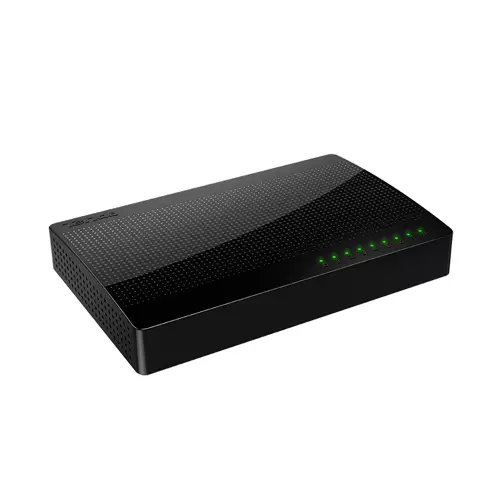

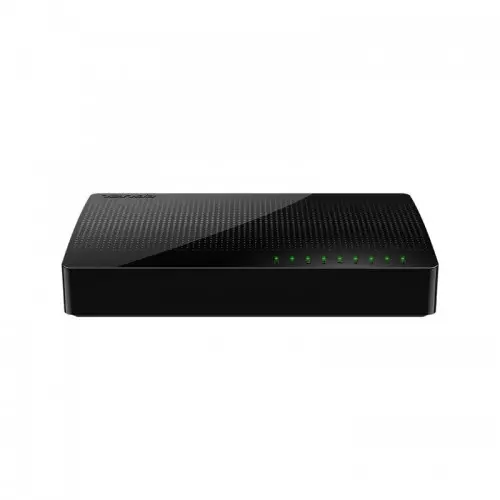

Tenda SG108 is a gigabit Ethernet switch of high performance and easy maintenance. The switch is dedicated to a high speed forward demand like schools, small business offices, tiny enterprises and other small places. With an attractive MINI desktop design, and 8 ports, it is particularly suitable for small-size network. It also provides 8 10/100/1000Mbps auto-negotiation ports, and supports automatic MDI/MDIX.
Tenda SG108 gigabit switch Features
Gigabit speeds: In full duplex mode, the transmission speed can be up to 2000 Mbps, which is 10 times faster than normal Ethernet, because the data packets are transmitted at full cable speed.
Stay online around the clock without data loss
With the store and forward function and the automatic learning and aging of MAC addresses, SG108 can transmit data over long distances without loss to ensure a stable and lightning-fast WLAN.
Elegant and compact
The SG108 is elegant and compact at the same time and does not take up much space on the desk or the floor. Thanks to its efficient design, you can place the SG108 wherever you want and use it flexibly. It is housed in an elegant, dome-shaped case, making it suitable for any interior.
Plug & Play, no configuration required for commissioning
The network is immediately available after you plug in the Ethernet cable. Whether you're a newcomer or a professional, it's easy and intuitive to set up SG108 without time-consuming steps.
Cooling System | |
Fan |
N/A
|
Networking & Connectivity | |
Network Standard |
IEEE802.3、 IEEE802.3u、IEEE802.3x、 IEEE802.3ab
|
MAC Address Table |
4K
|
Battery And Power | |
Power |
Input: 100-240V AC 50/60Hz
Output: 9V 0.6A (External power adapter) Power consumption Max:<4W |
Ports | |
Interface |

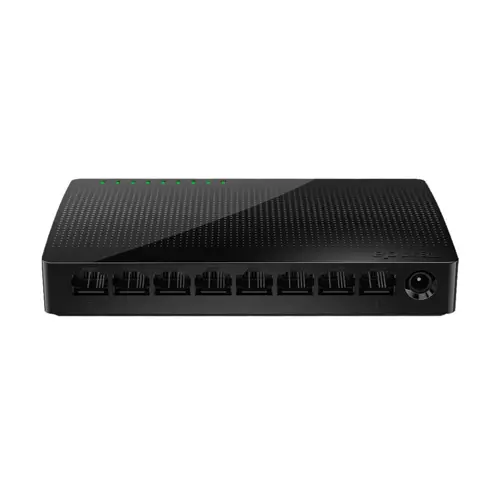

8*10/100/1000 Base-T Ethernet ports(Auto MDI/MDIX)
|
Special Features | |
Certifications |
CE, FCC, RoHS
|
Others | |
Other Features |
LED Indicator: 1 Power, 8 Link/Act
Transmission media Recommended: CAT5/5e UTP or better Dimension: 124.0mmx59.0mmx23.0mm Material: Plastic Level of protection ESD: Air discharge: ±8kV Contact discharge: ±6kV Forwarding mode: Store-and-forward Switch capacity: 16Gbps Packet forwarding rate: 12.00Mpps Buffer: 2Mb Jombo frame: 9K |
Physical Specification | |
Environment |
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
