NZXT N7 Z590 LGA 1200 10th and 11th Gen WiFi ATX Motherboard (White)

Stock : Out of Stock PID : P0452506033 SKU : N7-Z59XT-W1 Brand : NZXT Model : N7 Z590 Warranty : 3 years
0 Reviews
  • Intel Z590 Chipset
  • LGA1200 Socket
  • 4 x Dual-Channel DDR4 RAM slots
  • Wi-Fi 6E (802.11ax) | Bluetooth 5.2
  • Features:

    • The N7 Z590 uses a 12+2 DrMOS power phase design to balance electrical current and deliver efficient power to your installed components.
    • Fan and RGB lighting can be adjusted with the included NZXT CAM software, allowing you to fine-tune your fans in performance and style.

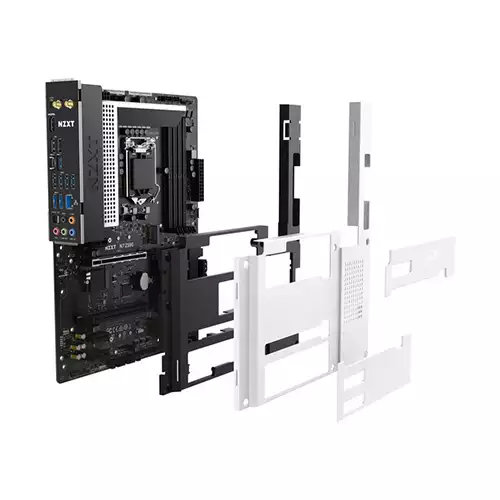

    • Integrated I/O shield provides an efficient layout for connectors and makes installation quick and easy.
    • Intel Optane Memory support allows you to use optional Intel M.2 drives to boost the performance of hard-disk campaigns within your system, giving you SSD-like performance.
    • Multi-GPU support with AMD CrossFireX allows you to equip your rig with two graphics cards to enhance visual fidelity.
    • The N7 Z590 supports memory overclocking up to 4266 MHz and Intel XMP 2.0, ensuring you get the most out of your memory.
    • Immerse yourself deep into your media with 8-channel high-definition audio, delivering clean sound whether you are playing games or enjoying streaming media

    NZXT N7 Z590 ATX Motherboard in Bangladesh

    Embrace style and functionality with the N7 Z590 LGA1200 ATX Motherboard from NZXT. Sporting the sleek and traditional NZXT design, the N7 Z590 motherboard provides you with ample connectivity and high-quality performance suitable for gamers.

    NZXT N7 Z590 ATX Motherboard Built on the Z590 chipset, you can access an LGA1200 socket, four dual-channel DDR4 RAM slots, six SATA III ports, and two M.2 interfaces. Equip your rig with an array of graphics and utility cards with one PCIe 4.0 x16, one PCIe 3.0 x16 (in x4 mode), and three PCIe 3.0 x1 slots. Connect various resource-demanding peripherals such as cameras and external drives with USB 3.2 Gen 1 and Gen 2 Type-A ports. A single USB 3.2 Gen 2x2 port offers up to 20 Gb/s data transfer speeds, suitable for workstation hubs, audio interfaces, and more high-powered devices. You can use Bluetooth 5.2 technology to leverage wireless devices such as controllers and speakers. Wi-Fi 6E (802.11ax) technology enables you to connect to your wireless network easily or use the RJ45 LAN port if you prefer a hard-wired connection.

    [product_table id="34" limit="10" type="filter" filter_category="7270"]


    Processor
    Supported CPU
    Intel Socket LGA1200 for 10th and 11th Generation Processors

    Intel Core Processors. Please refer to the CPU support list.

    Turbo Boost Max 3.0 Technology: Supported
    Mainboard
    Chipset
    Intel: Z590
    Memory
    Memory
    Memory Slots: 4 x 288-Pin

    Memory Support: DDR4 2133, 2400, 2666, 2800, 2933, 3200, 4400, 4600 MHz

    Maximum Capacity: 128 GB

    Channel Architecture: Dual Channel

    ECC Support: Non-ECC Unbuffered
    Storage
    Supported Storage
    SATA: 4 x SATA III

    M.2: 1 x 2242, 2260, 2280 (PCIe 3.0 x4, SATA (Unspecified))
    U.2 None

    Optane Memory Support: Yes

    RAID Support:RAID 0, 1, 5, 10
    Graphics
    Multi-GPU
    AMD 2-Way CrossFireX Technology
    Graphics
    Intel Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs)

    HDMI 2.0 / HDMI 1.4b

    HDMI Max Resolution: 4096x2160@60Hz
    Networking & Connectivity
    LAN
    Realtek: RTL8125BG 2.5G
    WiFi
    Intel Dual-Band Wireless: AX210 Wi-Fi 6E

    Protocol: 802.11 a/b/g/n/ac/ax

    Frequency Bands: 2.4 / 5 / 6 GHz

    MU-MIMO Support: Supported

    Bluetooth: V5.2
    Audio & Microphone
    Audio
    Realtek: ALC1220 Codec

    channel: 8-Channel High Definition Audio

    Playback: 32-bit / 192kHz DAC

    Capacitors: Nichicon Fine Gold Series
    Ports
    Slots
    1 x PCIe 4.0 x16 (x16 mode)

    1 x PCIe 3.0 x16 (x4 mode)

    3 x PCIe 3.0 x1
    Internal I/O Ports
    1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)

    2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)

    3 x USB 2.0 Header (Supports 6 USB Type-A Port)

    Multi-GPU Support 2-Way AMD CrossFireX

    Air Cooling 1 x 4-Pin CPU

    5 x 4-Pin System

    Liquid Cooling 1 x 4-Pin Pump

    Power Connectors 1 x 24-Pin Mainboard

    1 x 8-Pin ATX

    1 x 4-Pin ATX

    LED Header 2 x RGB

    Diagnostics Power, Reset

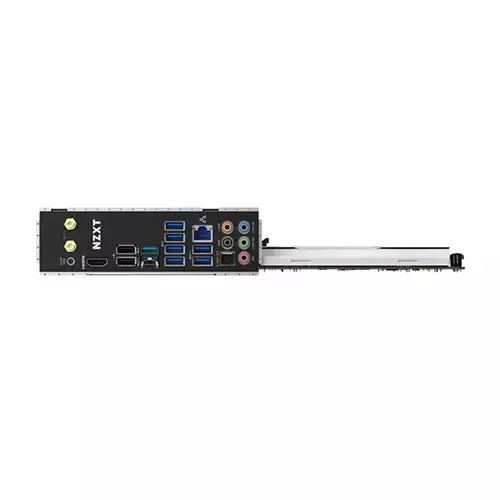

    External I/O Ports
    1 x USB 3.2 Gen 2x2 Type-C

    3 x USB 3.1 / USB 3.2 Gen 2 Type-A

    4 x USB 3.1 / USB 3.2 Gen 1 Type-A

    2 x USB 2.0 Type-A

    Display 1 x HDMI 2.0

    Audio: 1 x 3.5 mm

    1 x S/PDIF

    Ethernet / Controller: 1 x Realtek RTL8125BG 2.5 Gigabit

    Wi-Fi Antenna: 2 x Connector

    Buttons: Clear CMOS
    HDMI
    HDMI 2.0 / HDMI 1.4b
    Physical Specification
    Form Factor
    ATX
    Dimension
    15 x 12.75 x 3.75 inches
    Warranty Information
    Warranty
    3 Years

    Write A Review

    What is the NZXT N7 Z590 LGA 1200 10th and 11th Gen WiFi ATX Motherboard (White) Price in Bangladesh 2025 ?

    The NZXT N7 Z590 Price in BD is 25,500à§³ . This NZXT N7 Z590 LGA 1200 10th and 11th Gen WiFi ATX Motherboard (White) Manufacturing by NZXT Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you NZXT N7 Z590 by 25,500à§³ and its regular price is 27,500à§³ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
