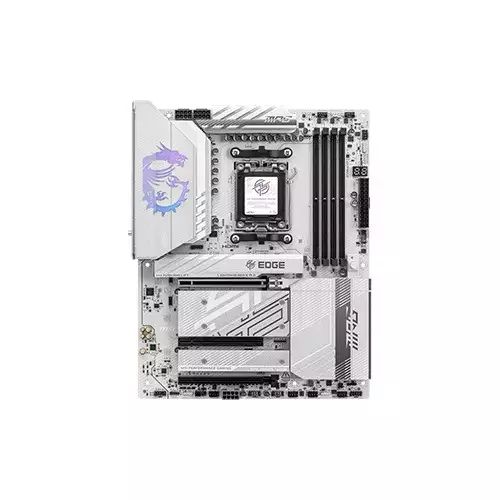

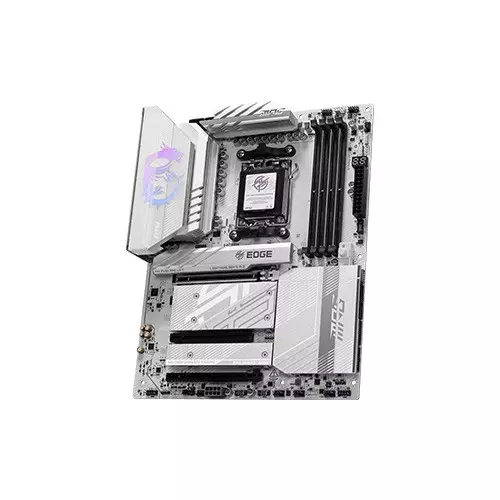

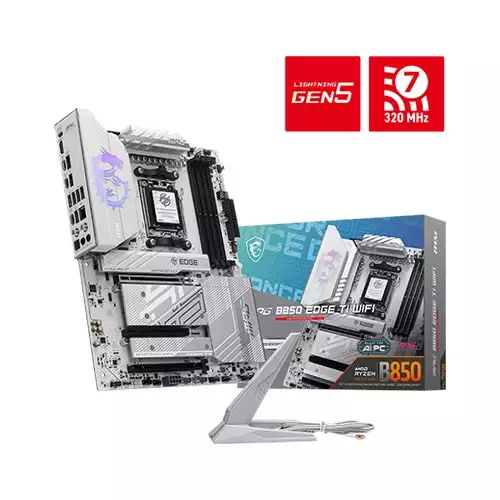

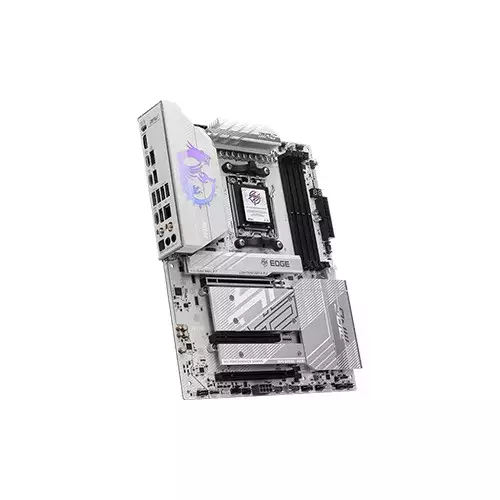

MSI MPG B850 EDGE TI WIFI DDR5 AM5 ATX Motherboard is a high-performance motherboard designed for gamers, content creators, and PC enthusiasts in Bangladesh who demand cutting-edge technology and exceptional reliability. Built with the AMD B850 chipset, this motherboard supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, ensuring top-tier performance for gaming, multitasking, and productivity. Featuring 4x DDR5 UDIMM slots with support for up to 256GB of memory and speeds ranging from 4800 MT/s (JEDEC) to 8400 MT/s (OC), the MSI MPG B850 EDGE TI WIFI delivers blazing-fast memory performance, making it ideal for high-intensity workloads and gaming. The motherboard also supports AMD EXPO and memory overclocking, allowing users to push their systems to the limit. With 3x PCI-E x16 slots, including a PCIe 5.0 x16 slot for Ryzen 9000/7000 Series processors, this motherboard ensures future-proof compatibility with the latest GPUs and expansion cards. Storage options are equally impressive, with 4x M.2 slots supporting PCIe 5.0 and PCIe 4.0 NVMe SSDs and 4x SATA 6G ports for additional storage needs. The Realtek ALC4080 audio codec provides 7.1-channel high-fidelity audio, while the Wi-Fi 7 and Bluetooth 5.4 capabilities offer ultra-fast wireless connectivity and low-latency communication. The motherboard also features a robust USB port selection, including USB 20Gbps Type-C and 10Gbps Type-A ports, ensuring high-speed data transfer and device compatibility. With EZ Debug LEDs, RGB lighting support, and a user-friendly BIOS interface, the MSI MPG B850 EDGE TI WIFI DDR5 AM5 ATX Motherboard is a perfect choice for building a high-performance PC. Customers in Bangladesh can purchase this premium motherboard from Tech Land BD for an unparalleled computing experience.
Yes, the motherboard supports DDR5 memory overclocking with speeds up to 8400 MT/s (OC) and features AMD EXPO for optimized performance.
The MSI MPG B850 EDGE TI WIFI supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors with the AM5 socket.
Yes, the motherboard comes with Wi-Fi 7 and Bluetooth 5.4 support, offering ultra-fast wireless connectivity and low-latency communication.
Processor | |
Supported CPU |
AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
|
CPU Socket |
AM5
|
Mainboard | |
Chipset |
AMD B850
|
Memory | |
Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
Storage | |
Storage |
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G M.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M.2_2 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600 / 8400 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors) |
Graphics | |
Graphics |
1x HDMI
Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz* |
Networking & Connectivity | |
LAN |
1x Realtek 8126 5G LAN
|
Wi-Fi |
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
Bluetooth |
Supports Bluetooth 5.4**, MLO, 4KQAM
|
Audio & Microphone | |
Audio |
Realtek ALC4080 Codec
7.1-Channel USB High-Performance Audio Supports up to 32-bit/384 kHz playback on the front panel Supports S/PDIF output |
Ports | |

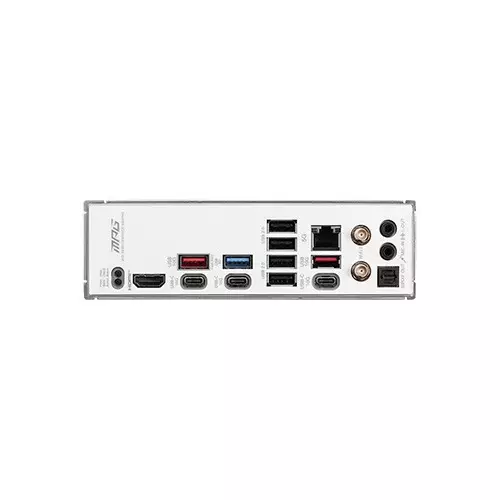

I/O Port |
Internal IO
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports BACK PANEL PORTS Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Optical S/PDIF Out |
PCI Card Slot |
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) *PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot |
USB |
4x USB 2.0 (Rear)
4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 3x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
Others | |
Other Features |
RAID: Supports RAID 0, RAID 1, and RAID 10* for M.2 NVMe storage devices
|
Physical Specification | |
Color |
White
|
Technical Info | |
LED Indicators |
4x EZ Debug LED
1x EZ Digit Debug LED 1x EZ Memory Detection LED |
Brand |
MSI
|
Model |
MPG B850 EDGE TI WIFI
|
Operating System Support |
Windows 11 64-bit
|
Warranty Information | |
Warranty |
3-Years
|
