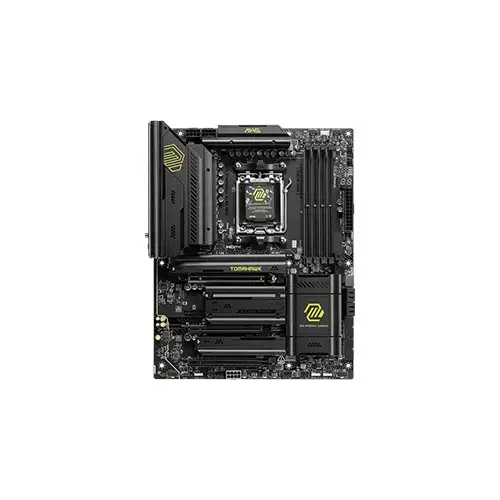

The MSI MAG X870 TOMAHAWK WIFI AM5 DDR5 AMD Motherboard is a high-performance motherboard designed to support the latest AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors. It is built with a robust chipset and offers cutting-edge features such as support for DDR5 memory and PCIe 5.0, making it ideal for gamers and content creators seeking a future-proof system. With integrated Wi-Fi 7, multiple USB4® ports, and advanced cooling options, this motherboard is designed to deliver exceptional performance and connectivity.
Technical Details
The MSI MAG X870 TOMAHAWK WIFI motherboard comes with an AMD X870 chipset and supports AMD Ryzen™ 9000/8000/7000 series processors on the AM5 socket. Its memory architecture is built around DDR5 UDIMM, supporting up to 256GB of RAM at overclocked speeds of up to 8400+ MT/s. It also offers dual-channel memory support and features for memory overclocking and AMD EXPO™ technology.For connectivity, the motherboard is equipped with multiple PCIe slots, including PCIe 5.0 x16 for high-end GPUs, and four M.2 slots supporting PCIe 5.0 and 4.0 for ultra-fast storage. The onboard graphics options include HDMI 2.1 and USB4® Type-C with DisplayPort 1.4, offering support for up to 8K resolution at 60Hz. Its audio system is powered by the Realtek® ALC4080 codec, delivering high-quality 7.1-channel sound. It also supports RAID configurations for M.2 NVMe storage devices.With Wi-Fi 7 and Bluetooth 5.4, the motherboard provides ultra-fast wireless connectivity, making it suitable for modern, high-speed networks. Additionally, it comes with Realtek 5G LAN for wired connections, ensuring low latency and stable performance in gaming and other demanding applications.
Availability and Usability
The MSI MAG X870 TOMAHAWK WIFI AM5 DDR5 AMD Motherboard is available at Tech Land BD, one of the most reliable tech stores in Bangladesh. With its comprehensive support for the latest AMD Ryzen processors, DDR5 memory, and PCIe 5.0, this motherboard is perfect for building high-performance gaming rigs and workstations. It also features advanced cooling options, multiple high-speed ports, and easy BIOS updates, making it user-friendly for both enthusiasts and professionals. For users looking for a high-quality motherboard, the MSI MAG X870 TOMAHAWK WIFI Price in BD offers excellent value for the level of technology and performance it provides.
Highlights
If you're planning to build or upgrade your gaming or professional PC, the MSI MAG X870 TOMAHAWK WIFI AM5 DDR5 AMD Motherboard is an excellent choice. With support for the latest Ryzenâ„¢ 9000 Series processors and DDR5 memory, this motherboard is designed to handle the most demanding tasks. Its advanced cooling systems, ultra-fast connectivity with Wi-Fi 7 and Bluetooth 5.4, and multiple PCIe and M.2 slots ensure that your system will be future-proof and ready for the next generation of hardware. Don't miss out on the competitive MSI MAG X870 TOMAHAWK WIFI Price in Bangladesh, available now at Tech Land BD. Visit Tech Land BD and secure your motherboard today!
Processor | |
CPU |
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5 |
Mainboard | |
Chipset |
AMD X870
|
Memory | |
Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ (OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
Storage | |
Storage |
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices * The M2_2 slot will be unavailable when using Ryzenâ„¢ 8500/ 8300 Series processors. ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports |
Graphics | |
Multi-GPU |
AMD MULTI-GPU Support
|
Graphics |
1x HDMIâ„¢
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Networking & Connectivity | |
LAN |
Realtek 8126-CG 5G LAN
|
Wireless |
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
Audio & Microphone | |
Audio |
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
Ports | |
Port |
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
Slots |
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
USB |
4x USB 2.0 (Rear)
4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
Software | |
Operating System |
Support for Windows 11 64-bit
|
Physical Specification | |
Form Factor |
ATX
304.8mmx243.84mm |
Warranty Information | |
Warranty |
03 years
|
