MSI MAG B660M MORTAR DDR4 12th Gen Micro-ATX Motherboard

Stock : Out of Stock PID : P0402506100 Brand : MSI Model : MAG B660M MORTAR DDR4 Warranty : 3 years
0 Reviews
  • Intel B660 Chipset
  • socket LGA1700
  • 12th generation Intel
  • Micro-ATX Form Factor
    • Description Specification Reviews

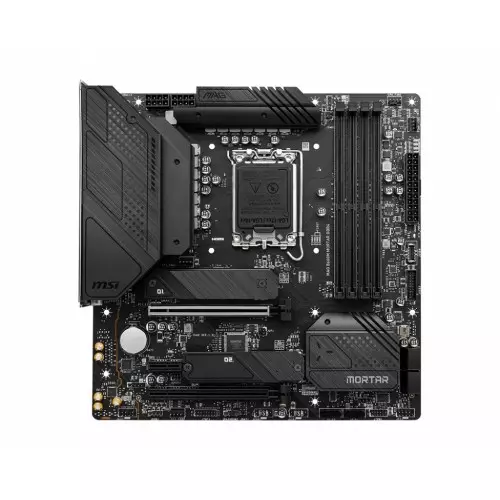

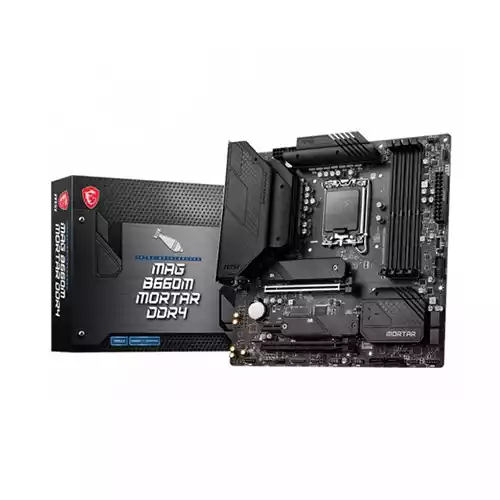

    MSI MAG B660M MORTAR DDR4 Motherboard

    The MSI MAG B660M MORTAR DDR4 Motherboard From MSI.This MSI MAG B660M MORTAR DDR4 Motherboard supports with 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4800+(OC) MHz. This motherboard comes with Premium Thermal Solution, so that Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works and also this MSI MAG B660M MORTAR DDR4 Motherboard has 2.5G LAN, so that it helps to Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. By Utilizing 12th Gen Intel processors, the MSI MAG B660M MORTAR DDR4 Motherboard feature with latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. This MSI MAG B660M MORTAR DDR4 Motherboard designed with Lightning M.2, which helps to Running at PCIe Gen 4 maximizes performance for NVMe based SSDs. It is also has Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1 and also With Steel armor PCIe slots. Supports AMD Crossfire. Here, the 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN.

    [product_table id="34" limit="10" type="filter" filter_category="7270"]


    Processor
    Supported CPU
    Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors

    Processor socket LGA1700
    Mainboard
    Chipset
    Intel B660 Chipset
    Memory
    Memory
    4x DDR4 memory slots, support up to 128GB 1

    Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)

    Max overclocking frequency:

    1DPC 1R Max speed up to 4800+ MHz

    1DPC 2R Max speed up to 4000+ MHz

    2DPC 1R Max speed up to 4000+ MHz

    2DPC 2R Max speed up to 3600+ MHz

    Supports Dual-Channel mode

    Supports non-ECC, un-buffered memory

    Supports Intel® Extreme Memory Profile (XMP)
    Storage
    Supported Storage
    4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)

    2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)

    2x M.2 slots (Key M)

    M2_1 slot (From CPU)

    Supports PCIe 4.0 x4

    Supports 2242/ 2260/ 2280 storage devices

    M2_2 slot (From B660 Chipset)

    Supports PCIe 4.0 x4

    Supports SATA 6Gb/s

    Supports 2242/ 2260/ 2280 storage devices

    Supports Intel® Optane™ Memory
    Graphics
    Multi-GPU
    Supports 2-Way AMD CrossFire Technology
    Graphics
    1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

    1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
    Networking & Connectivity
    LAN
    2.5G LAN Port
    Audio & Microphone
    Audio
    Realtek® ALC1200 Codec

    7.1-Channel High Definition Audio

    Supports S/PDIF output
    Ports
    Slots
    2x PCIe x16 slots

    PCI_E1 slot (From CPU)

    Supports PCIe 4.0 x16

    PCI_E3 slot (From B660 Chipset)

    Supports PCIe 3.0 x4

    1x PCIe 3.0 x1 slot
    Internal I/O Ports
    1x 24-pin ATX main power connector

    2x 8-pin ATX 12V power connectors

    6x SATA 6Gb/s connectors

    2x M.2 slots (M-Key)

    1x USB 3.2 Gen 2 10Gbps Type-C connector

    1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

    2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

    1x 4-pin CPU fan connector


    1x 4-pin water-pump fan connector

    2x 4-pin system fan connectors

    1x Front panel audio connector

    2x System panel connectors

    1x Chassis Intrusion connector

    1x Clear CMOS jumper

    1x TPM module connector

    1x TBT connector (supports RTD3)

    1x Tuning Controller connector

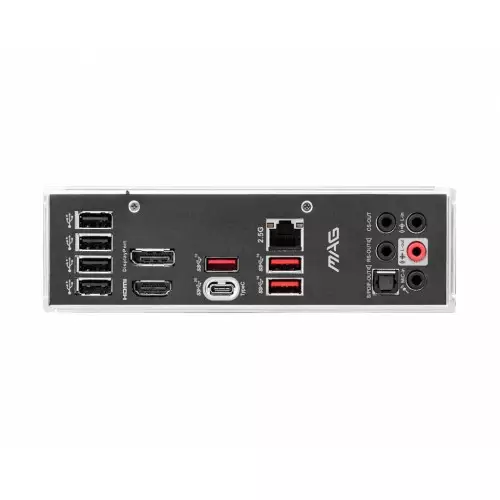

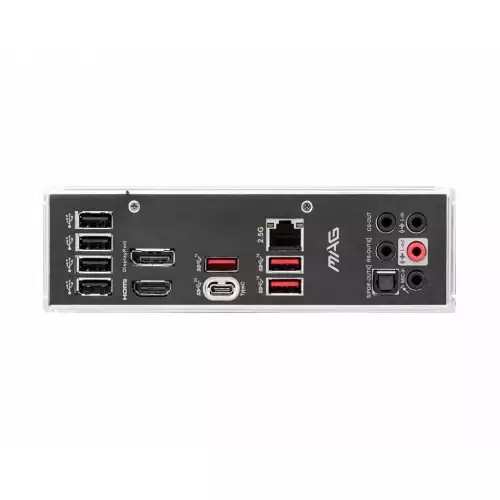

    External I/O Ports
    USB 2.0 Port

    DisplayPort 1.4

    USB 3.2 Gen 2 10Gbps Type-A

    2.5G LAN Port

    Wi-Fi / Bluetooth Antenna

    HD Audio Connectors

    HDMI 2.1 Port

    USB 3.2 Gen 2x2 20Gbps Type-C

    Optical S/PDIF OUT
    USB
    1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
    1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
    2x USB 3.2 Gen 1 5Gbps ports available through the internal connector

    4x USB 2.0 ports on the back panel

    USB Hub-GL3590

    3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

    USB Hub-GL850G

    4x USB 2.0 ports available through internal connectors
    HDMI
    HDMI 2.1 Port
    Physical Specification
    Form Factor
    9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
    Dimension
    Micro-ATX Form Factor
    Warranty Information
    Warranty
    3 years

    Write A Review

    What is the MSI MAG B660M MORTAR DDR4 12th Gen Micro-ATX Motherboard Price in Bangladesh 2025 ?

    The MSI MAG B660M MORTAR DDR4 Price in BD is 22,600৳ . This MSI MAG B660M MORTAR DDR4 12th Gen Micro-ATX Motherboard Manufacturing by MSI Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI MAG B660M MORTAR DDR4 by 22,600৳ and its regular price is 23,800৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
