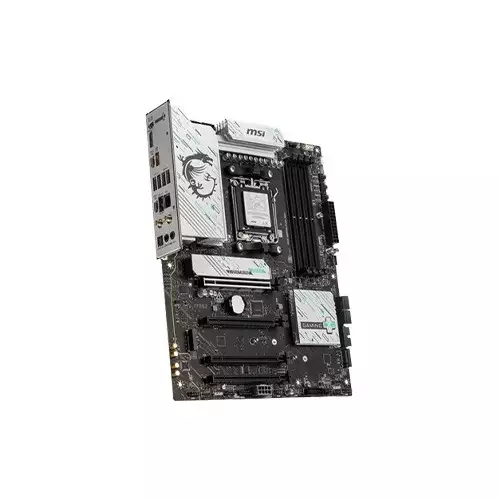

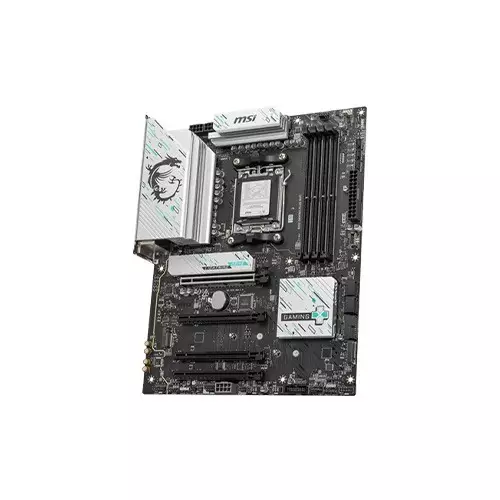

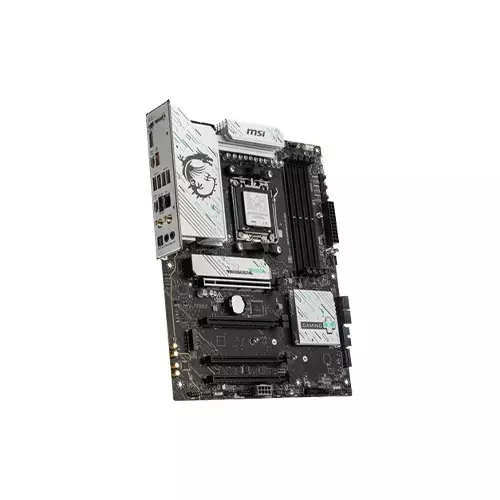

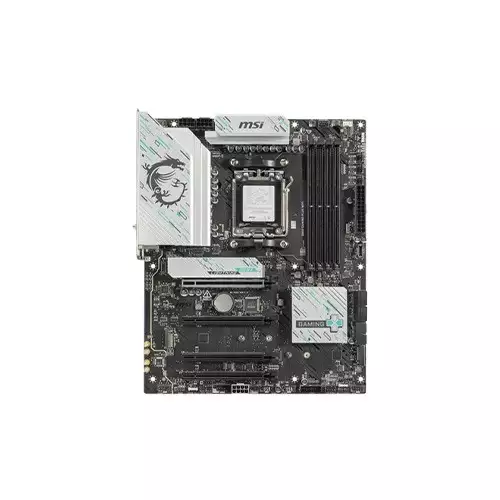

MSI B850 GAMING PLUS WIFI is a high-performance ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series processors with Socket AM5. Powered by the AMD B850 chipset, it supports DDR5 memory up to 256GB, ensuring exceptional speed and multitasking capabilities. For expansion, the board includes four PCI-E x16 slots, with PCI-E 5.0 support for Ryzen 9000/7000 processors, making it ideal for gaming and high-end computing. Storage is future-proof with three M.2 slots, including PCIe 5.0 x4 support for ultra-fast NVMe SSDs. Connectivity is top-notch with Wi-Fi 7, Bluetooth 5.4, and Realtek 8126VB 5G LAN, providing blazing-fast networking speeds. The motherboard also features multiple USB ports, including USB 10Gbps Type-C, for seamless peripheral connections. With 7.1-channel Realtek ALC897 HD audio, RGB lighting support, and an EZ Debug LED system, the MSI B850 GAMING PLUS WIFI is a powerhouse for gaming, content creation, and workstation setups. Get it now at Tech Land BD and enjoy a 3-year warranty!
It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket.
No, it only supports DDR5 memory with speeds up to 8200+ MT/s (OC).
It has three M.2 slots, including PCIe 5.0 x4 support for high-speed NVMe SSDs.
Processor | |
Supported CPU |
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5 |
Mainboard | |
Chipset |
AMD B850
|
Memory | |
Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
Storage | |
Storage |
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) |
Graphics | |
Graphics |
1x DisplayPort
Support DisplayPort 1.2, maximum resolution of 4K 60Hz* |
Networking & Connectivity | |
LAN |
Realtek 8126VB 5G LAN
|
Bluetooth |
Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
Audio & Microphone | |
Audio |
Realtek ALC897
7.1-Channel High Definition Audio |
Ports | |
Slots |
4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot. |
Internal I/O Ports |
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |

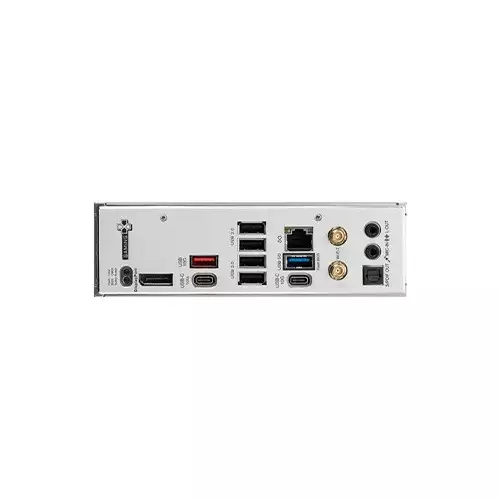

External I/O Ports |
Clear CMOS Button
USB 10Gbps (Type-A) USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button DisplayPort USB 10Gbps (Type-C) USB 10Gbps (Type-C) USB 5Gbps (Type-A) S/PDIF-OUT |
USB |
4x USB 2.0 (Rear)
4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) |
Software | |
Operating System |
Support for Windows 11 64-bit
|
Others | |
Other Features |
RAID - Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
|
Physical Specification | |
Color |
Black
|
Form Factor |
ATX
243.84mmx304.8mm |
Technical Info | |
LED Type |
4x EZ Debug LED
|
Model |
B850 GAMING PLUS WIFI
|
Warranty Information | |
Warranty |
3-Years
|
