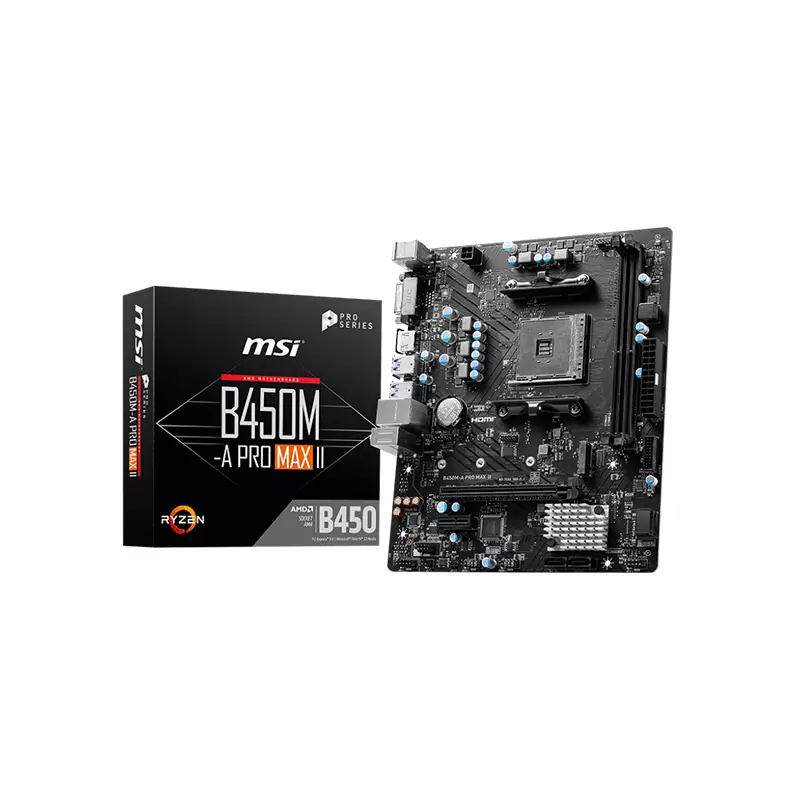

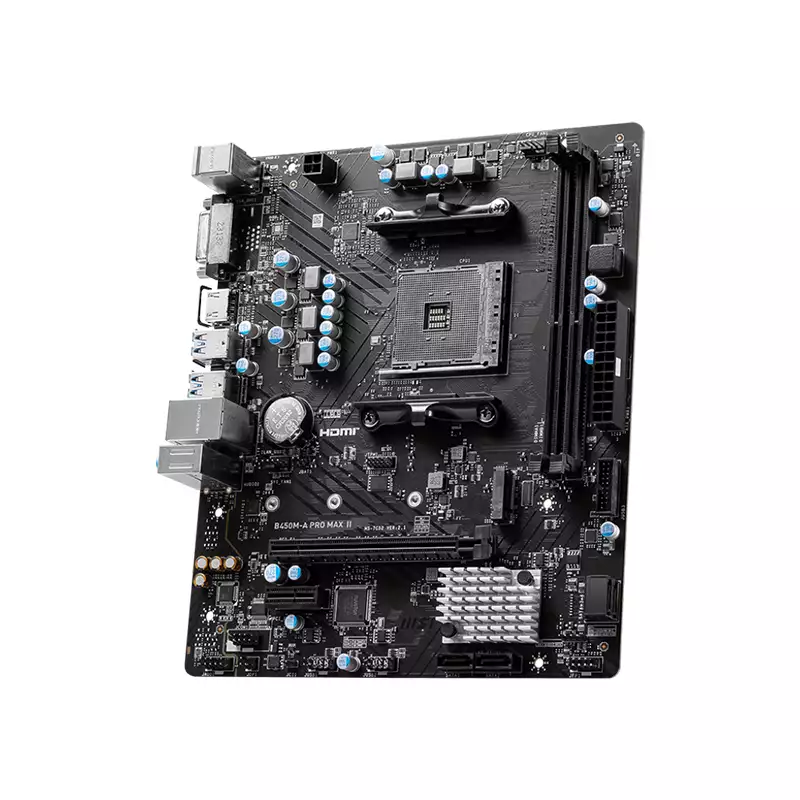

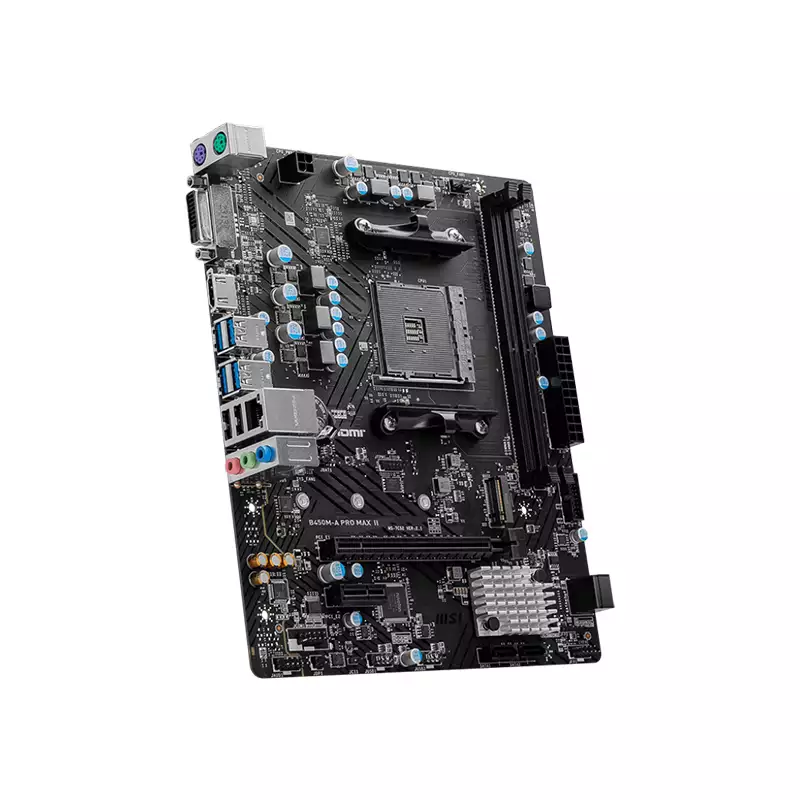

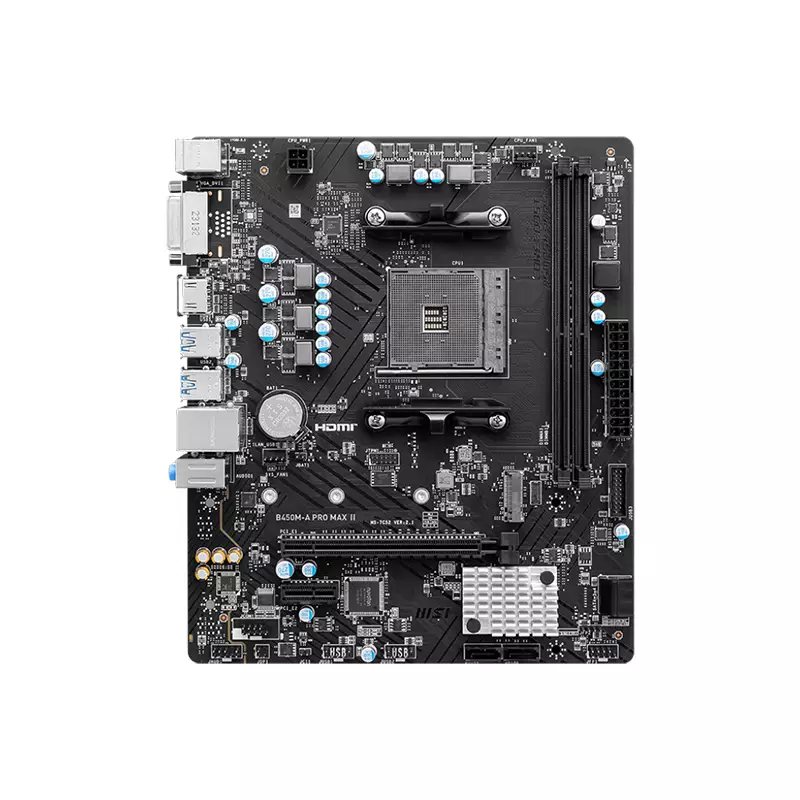

Introducing the MSI B450M-A PRO MAX II AMD AM4 DDR4 ATX Motherboard, a versatile and powerful foundation for your computing needs. Built around the AMD B450 chipset, this motherboard seamlessly supports an array of AMD processors, including the AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series, and 1000 Series Desktop Processors, as well as Athlon™ processors with Radeon™ Vega Graphics. Its AM4 socket ensures compatibility with a wide range of CPUs. The motherboard's 2x DDR4 memory slots allow for a maximum memory capacity of 64GB, offering support for DDR4 memory speeds ranging from 2667 MHz to an impressive 4133 MHz through A-XMP OC mode. Featuring onboard graphics support including 1x HDMI™ 1.4 and 1x DVI-D ports, this motherboard facilitates visual experiences with maximum resolutions of 4K 24Hz and 1920x1200 60Hz, respectively, with graphics specifications varying based on the installed CPU. Expansion capabilities are provided by 1x PCI-E x16 slot and 1x PCI-E x1 slot, while storage options include 1x M.2 and 4x SATA 6G slots. The Realtek® 8125 2.5Gbps LAN controller ensures reliable network connectivity, and the Realtek® ALC897 Codec delivers high-definition 7.1-channel audio. The motherboard's internal and back panel I/O include various connectors such as power, CPU fan, USB, and audio ports, contributing to a seamless build process. Designed for compatibility with Windows® 11 64-bit and Windows® 10 64-bit operating systems, and backed by a 3-year warranty, the MSI B450M-A PRO MAX II exemplifies stability and performance in a compact mATX form factor. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Motherboard available at Techland BD is well recognized. The large selection of MSI Motherboard available at Techland BD is well recognized.
Processor | |
Supported CPU |
Supports AMD Ryzenâ„¢ 5000 Series, 5000 G-Series, 4000 G-Series,
3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlonâ„¢ with Radeonâ„¢ Vega Graphics desktop processors Socket AM4 |
Mainboard | |
Chipset |
AMD B450
|
Memory | |
Memory |
2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) Supports Dual-Channel mode Supports non-ECC, UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
Storage | |
Supported Storage |
1x M.2
M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
Graphics | |
Multi-GPU |
Yes
|
Graphics |
1x HDMI
Support HDMITM 1.4, maximum resolution of 4K 24Hz 1x DVI Support DVI-D, maximum resolution of 1920x1200 60Hz |
Networking & Connectivity | |
LAN |
Realtek 8125 2.5Gbps LAN controller
|
Audio & Microphone | |
Audio |
Realtek ALC897 Codec
7.1-Channel High Definition Audio |
Ports | |
Slots |
1x PCI-E x16 slot
1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset) |
Internal I/O Ports |
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |

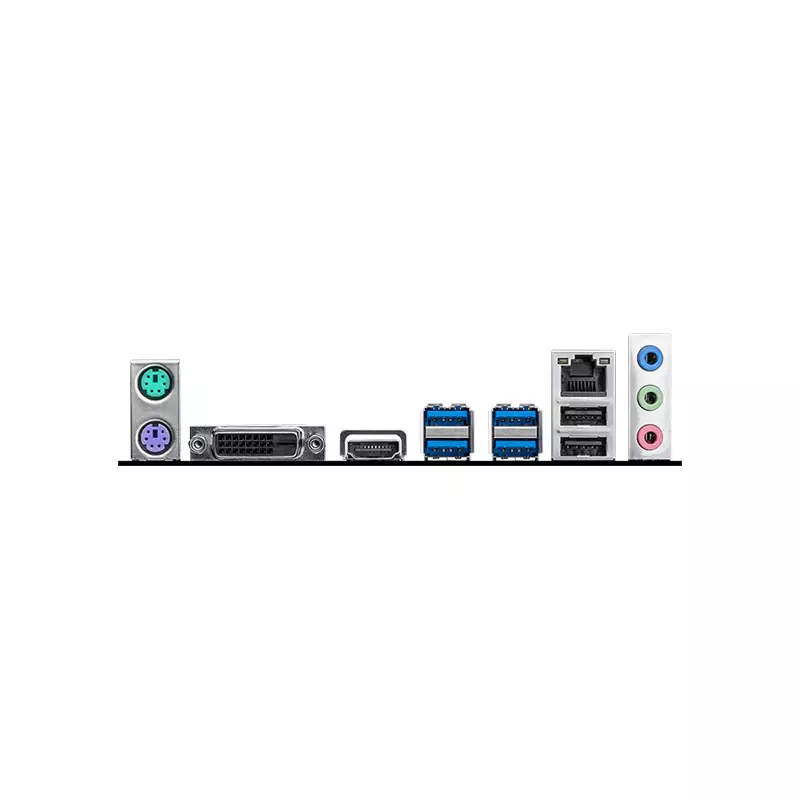

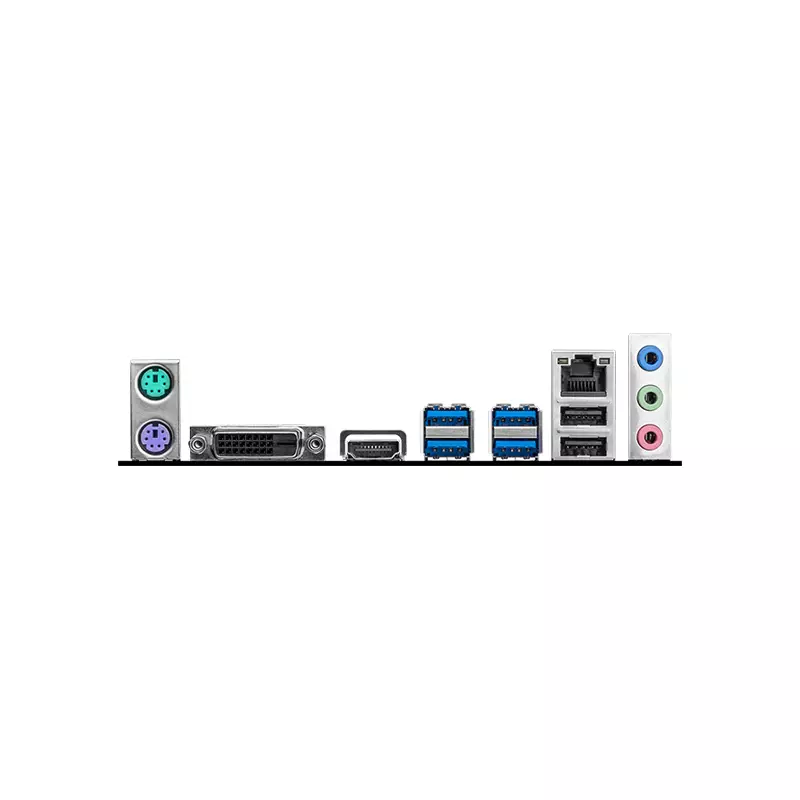

External I/O Ports |
Keyboard/Mouse
DVI-D HDMI USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Audio connectors USB 2.0 |
USB |
2x USB 2.0 (Rear)
4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
HDMI |
1x HDMI
|
Software | |
Software Features |
Support for Windows 11 64-bit, Windows 10 64-bit
|
Others | |
Other Features |
RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
|
Physical Specification | |
Form Factor |
mATX
|
Dimension |
200mmx236mm
|
Warranty Information | |
Warranty |
03 Years Warranty
|
