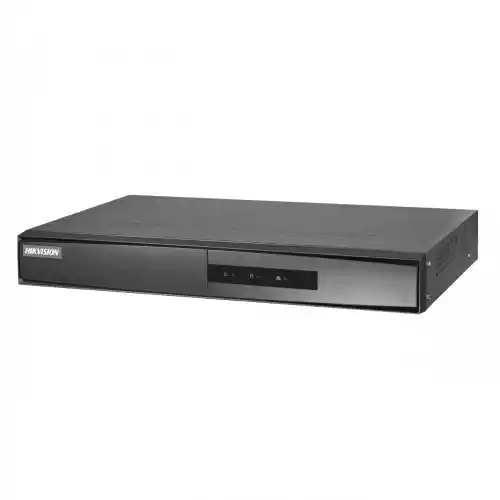

The Hikvision DS-7732NI-M4 32 Channel 1.5U 8K NVR is a high-performance network video recorder designed to manage up to 32 channels of high-resolution IP cameras. It supports video input resolutions up to 32 MP and features ultra-HD recording with HDMI output up to 8K, ensuring crystal-clear video footage for advanced surveillance systems.
This NVR supports up to 32 channels of IP video input, accommodating resolutions up to 32 MP for ultra-high-definition footage. It offers dual HDMI outputs, with the primary port supporting 8K resolution and the secondary output supporting up to 4K. The system handles an impressive 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth. For data storage, it supports up to 16 TB capacity per disk across four SATA interfaces, offering ample space for large volumes of video data. The device is also equipped with advanced decoding capabilities and supports multiple video and audio formats, ensuring versatile performance for professional security applications.
The Hikvision DS-7732NI-M4 is available at Tech Land BD, offering a premium solution for large-scale surveillance setups. With its 32-channel capacity, 8K resolution support, and advanced bandwidth management, this NVR is ideal for businesses requiring extensive video surveillance coverage. The product is designed for easy integration with IP cameras, ensuring smooth operation and high-quality video management. For more information on the Hikvision DS-7732NI-M4 Price in BD, visit Tech Land BD today.
For businesses in need of robust video surveillance, the Hikvision DS-7732NI-M4 offers unparalleled performance with 32 channels, ultra-HD resolution, and massive storage capacity. Don’t miss out on this top-tier NVR available at Tech Land BD. With its advanced features and high reliability, it's the perfect choice for safeguarding your property. Act now to secure the Hikvision DS-7732NI-M4 Price in Bangladesh and ensure the best value for your investment!
Casing | |
Case Type |
19-inch rack-mounted 1.5U chassis
|
Networking & Connectivity | |
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP,
NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
Bandwidth |
Incoming Bandwidth: 320 Mbps
Outgoing Bandwidth: 400 Mbps |
Audio & Microphone | |
Audio Output |
1-ch, RCA (Linear, 1 KΩ)
|
Audio |
Two-Way Audio:
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
Battery And Power | |
Power Supply |
100 to 240 VAC, 50 to 60 Hz
|
Power Consumption |
≤ 15 W (without HDD )
|
Ports | |
Auxiliary Interface |
eSATA: 1 eSATA interface
SATA: 4 SATA interfaces Capacity: Up to 16 TB capacity for each disk Serial Interface: 2 RS-485 (half-duplex), 1 RS-232 Alarm In/Out: 16/9 Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. DC 12V: 12 VDC, 1 A power output |
VGA |
Output: 1920 × 1080/60Hz
|
USB |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
|
HDMI |
Output 1:
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz Output 2: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
Video Features | |
Video |
IP Video Input: 32-ch
Up to 32 MP resolution Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
Others | |
Other Features |
Synchronous Playback: 16-ch
Remote Connection: 128 |
Physical Specification | |
Temperature |
-10 °C to 55 °C (14 °F to 131 °F)
|
Humidity |
10% to 90%
|
Dimension |
445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
|
Weight |
≤ 5 kg (without HDD, 11 lb.)
|
Technical Info | |
Recording |
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/
VGA /4CIF/DCIF/ 2CIF/CIF/QCIF MP/24 MP IP video inputs Dual-Stream Recording: Support Stream Type: Video, Video & Audio Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
Decoding |
H.265+/H.265/H.264+/H.264
Capability: 2-ch@32 MP (30 fps)+2-ch@8MP(30fps)/10-ch@8 MP (30 fps)/ 20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
Warranty Information | |
Warranty |
2 Years
|
