GIGABYTE B550M K AMD AM4 ULTRA DURABLE MICRO ATX MOTHERBOARD

Stock : In Stock PID : P0392506331 Brand : Gigabyte Model : B550M K Warranty : 3 Years
0 Reviews
  • Chipset: AMD B550
  • Memory: 4 x DDR4 DIMM sockets
  • CPU: 4 x USB 3.2 Gen
  • Chipset: 2 x USB 3.2 Gen
  • Discount Price

    à§³ 10,900 13,500

    Available Payment Method

    EMI Start From*

    à§³ 384

    View Banks EMI Plans

    GIGABYTE B550M K AMD AM4 ULTRA DURABLE MICRO ATX MOTHERBOARD

    Introducing the GIGABYTE B550M K AMD AM4 ULTRA DURABLE MICRO ATX MOTHERBOARD, a powerful foundation for your AMD Ryzen-powered system. This motherboard offers robust compatibility, supporting a range of AMD Ryzen processors, including the Ryzen 5000 Series, Ryzen 4000 G-Series, and Ryzen 3000 Series. With four DDR4 DIMM sockets, it can handle up to 128 GB of system memory at speeds up to DDR4 4733(O.C.). The integrated graphics processor supports DisplayPort and HDMI outputs with impressive resolutions and HDR support. For audio, it features a Realtek Audio CODEC with High Definition Audio and support for various audio setups. Networking is handled by a Realtek GbE LAN chip, delivering reliable connectivity. Expansion options include a PCI Express x16 slot supporting PCIe 4.0 for Ryzen 5000 Series/3000 Series processors or PCIe 3.0 for Ryzen 5000 G-Series/4000 G-Series processors, as well as a PCI Express x1 slot. Storage is versatile with M.2 connectors and SATA 6Gb/s connectors that support RAID 0, RAID 1, and RAID 10. USB ports, including USB 3.2 Gen 1 and USB 2.0/1.1, provide ample connectivity. The motherboard includes various internal connectors and headers, as well as a Trusted Platform Module (TPM) header. The back panel features a range of connectors, including PS/2, DisplayPort, HDMI, USB, RJ-45, and audio jacks. The motherboard is equipped with an iTE I/O Controller Chip for hardware monitoring, and the BIOS is user-friendly with licensed AMI UEFI BIOS. It comes with bundled software, including Norton Internet Security, LAN bandwidth management software, and supports Windows 11 64-bit and Windows 10 64-bit. This Micro ATX motherboard (24.4cm x 24.4cm) is backed by a 3-year warranty and is designed to be the reliable backbone of your AMD-based system. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Gigabyte Motherboard available at Techland BD is well recognized. The large selection of Motherboard available at Techland BD is well recognized.

    Processor
    Supported CPU
    AMD Socket AM4, support for: AMD Ryzenâ„¢ 5000 Series/
    Ryzenâ„¢ 5000 G-Series/ Ryzenâ„¢ 4000 G-Series and Ryzenâ„¢ 3000 Series Processors
    Mainboard
    Chipset
    AMD B550
    BIOS
    1 x 128 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Memory
    Memory
    4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

    Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) /
    3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

    * ECC memory (ECC mode) support varies by CPU

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules
    Storage
    Supported Storage
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

    AMD Ryzenâ„¢ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs

    AMD Ryzenâ„¢ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:

    Supporting PCIe 3.0 x2 SSDs

    4 x SATA 6Gb/s connectors, integrated in the Chipset:

    Support for RAID 0, RAID 1, and RAID 10
    Graphics
    Graphics
    1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Maximum shared memory of 16 GB
    Networking & Connectivity
    LAN
    Realtek® GbE LAN chip (1 Gbps/100 Mbps)
    Audio & Microphone
    Audio
    Realtek® Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel
    Ports
    Slots
    1 x PCI Express x16 slot, integrated in the CPU:

    AMD Ryzenâ„¢ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode

    * Actual support may vary by AMD CPU's specification.

    AMD Ryzenâ„¢ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode

    1 x PCI Express x1 slot, integrated in the Chipset:

    Supporting PCIe 3.0 x1 mode
    Internal I/O Ports
    1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x CPU fan header

    1 x system fan header

    2 x M.2 Socket 3 connectors

    4 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB 3.2 Gen 1 header

    1 x USB 2.0/1.1 header

    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

    1 x Clear CMOS jumper

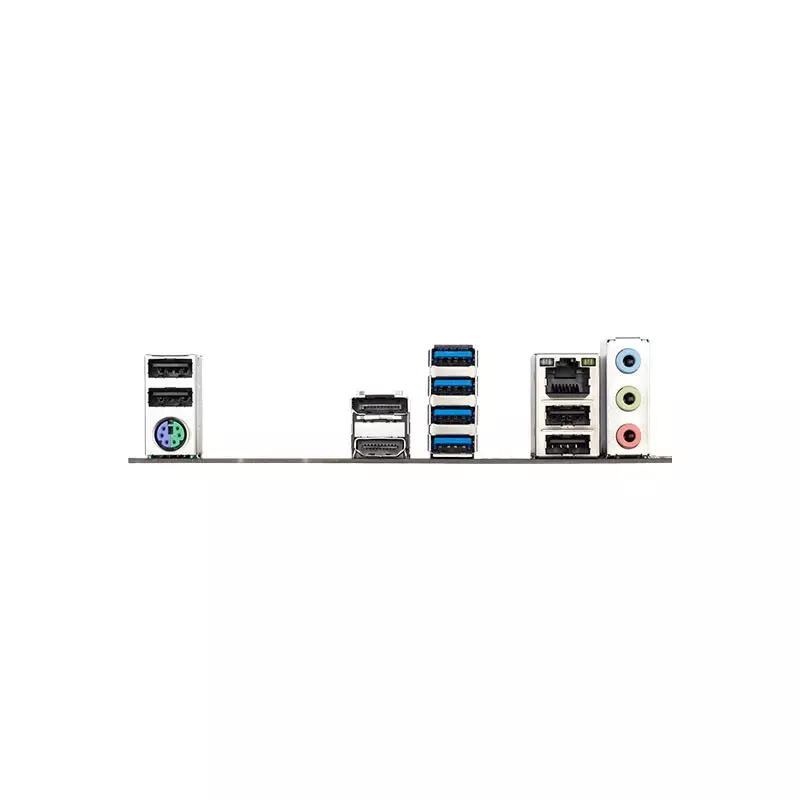

    External I/O Ports
    1 x PS/2 keyboard/mouse port

    1 x DisplayPort

    1 x HDMI port

    4 x USB 3.2 Gen 1 ports

    4 x USB 2.0/1.1 ports

    1 x RJ-45 port

    3 x audio jacks
    USB
    CPU:

    4 x USB 3.2 Gen 1 ports on the back panel

    Chipset:

    2 x USB 3.2 Gen 1 ports available through the internal USB header

    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Software
    Software Features
    Norton® Internet Security (OEM version)

    LAN bandwidth management software
    Special Features
    Special Features
    Support for APP Center

    @BIOS

    EasyTune

    Smart Backup

    System Information Viewer

    Support for Q-Flash

    Support for Xpress Install
    Others
    Other Features
    I/O Controller: iTE® I/O Controller Chip

    H/W Monitoring:

    Voltage detection

    Temperature detection

    Fan speed detection

    Fan fail warning

    Fan speed control

    Operating System:

    Support for Windows 11 64-bit

    Support for Windows 10 64-bit
    Physical Specification
    Form Factor
    Micro ATX
    Dimension
    24.4cm x 24.4cm
    Warranty Information
    Warranty
    03 Years Warranty
