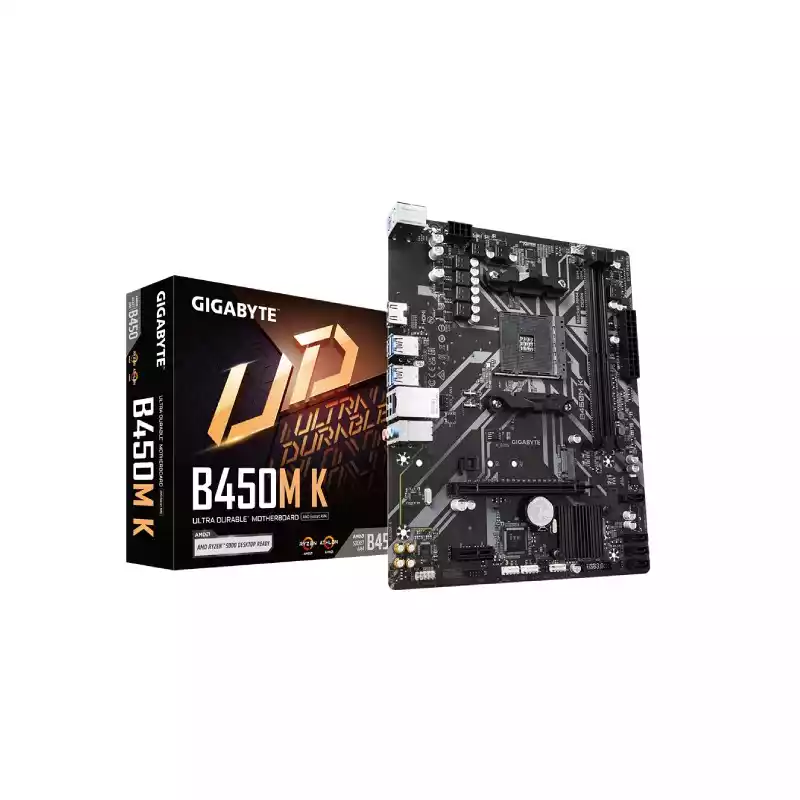

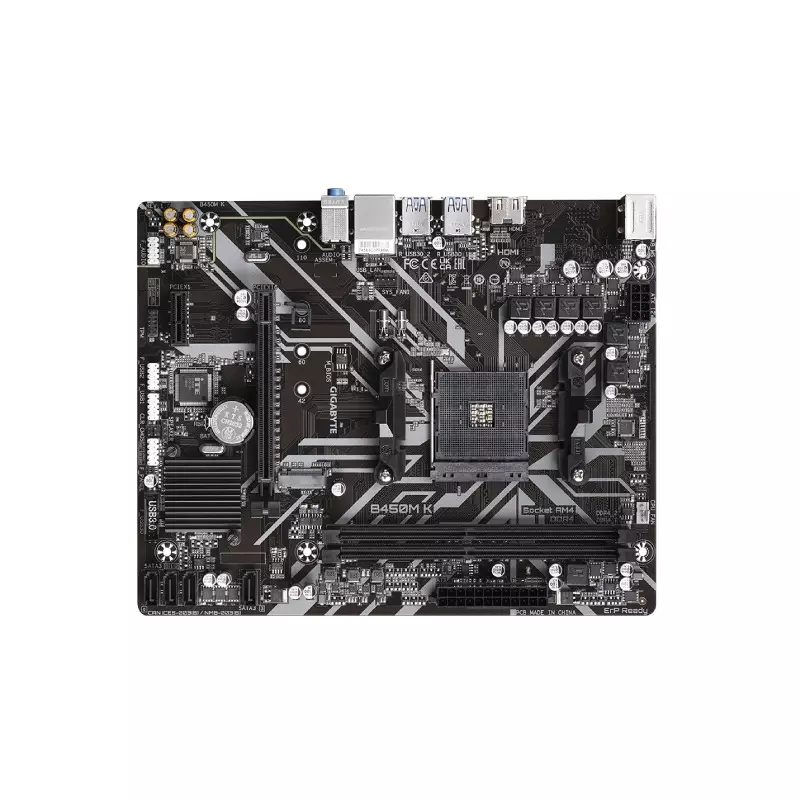

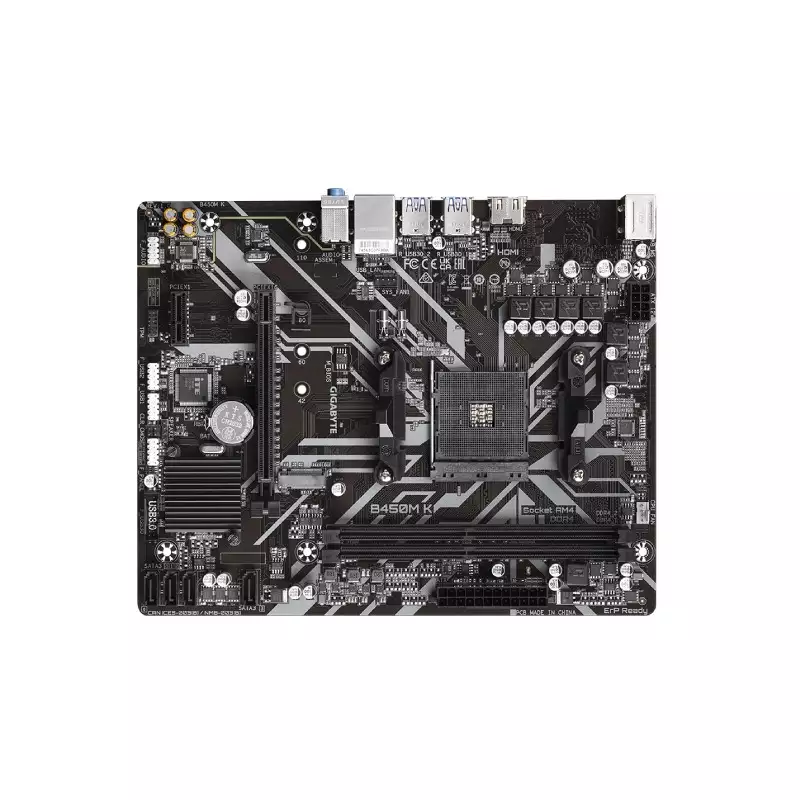

The GIGABYTE B450M K AMD AM4 Ultra Durable Micro ATX Motherboard, available at TechLand BD, is a high-performance motherboard designed to support a wide range of AMD processors. This motherboard is compatible with AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3rd Generation, 2nd Generation, and 1st Generation processors, as well as Athlon with Radeon Vega Graphics Processors. The motherboard features an AMD B450 chipset and supports DDR4 memory modules up to 3600MHz. It has two DDR4 DIMM sockets that can support up to 64GB of system memory. The motherboard also features integrated graphics with a HDMI port that supports a maximum resolution of 4096x2160@60 Hz. The audio is powered by a Realtek Audio CODEC that supports 2/4/5.1/7.1-channel high definition audio. The motherboard also features a Realtek GbE LAN chip for network connectivity. It has multiple expansion slots, including a PCI Express x16 slot and a PCI Express x1 slot. The motherboard also has a M.2 connector and four SATA 6Gb/s connectors for storage devices. It supports RAID 0, RAID 1, and RAID 10 for both NVMe SSD and SATA storage devices. The motherboard also has multiple USB ports, including four USB 3.2 Gen 1 ports on the back panel. The motherboard also features multiple internal I/O connectors, including a 24-pin ATX main power connector, an 8-pin ATX 12V power connector, a CPU fan header, a system fan header, and more. The motherboard uses a licensed AMI UEFI BIOS and supports APP Center, @BIOS, EasyTune, and Smart Back. The GIGABYTE B450M K AMD AM4 Ultra Durable Micro ATX Motherboard is a great choice for building a powerful and reliable system. You can find this motherboard at TechLand BD.
Processor | |
Supported CPU |
AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 4000 G-Series Processors/ 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation Ryzen with Radeon Vega Graphics processors/ 1st Generation Ryzen with Radeon Vega Graphics processors/ Athlon with Radeon Vega Graphics Processors
|
Mainboard | |
Chipset |
AMD B450
|
BIOS |
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Memory | |
Memory |
Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
Storage | |
Supported Storage |
1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe 3.0 x4/x2(Note) SSD support)
4 x SATA 6Gb/s connectors |
Graphics | |
Graphics |
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Maximum shared memory of 16 GB |
Networking & Connectivity | |
LAN |
Realtek GbE LAN chip (1 Gbps/ 100 Mbps)
|
Audio & Microphone | |
Audio |
Realtek Audio CODEC
High Definition Audio 2/4/5.1/7.1-channel |
Ports | |
Slots |
CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset: 1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1 |
Internal I/O Ports |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
USB |
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) 4 x USB 3.2 Gen 1 ports on the back panel |
Special Features | |
Special Features |
Support for APP Center
@BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
Others | |
Other Features |
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
Physical Specification | |
Form Factor |
Micro ATX Form Factor; 24.4cm x 19.5cm
|
Warranty Information | |
Warranty |
3 years
|
